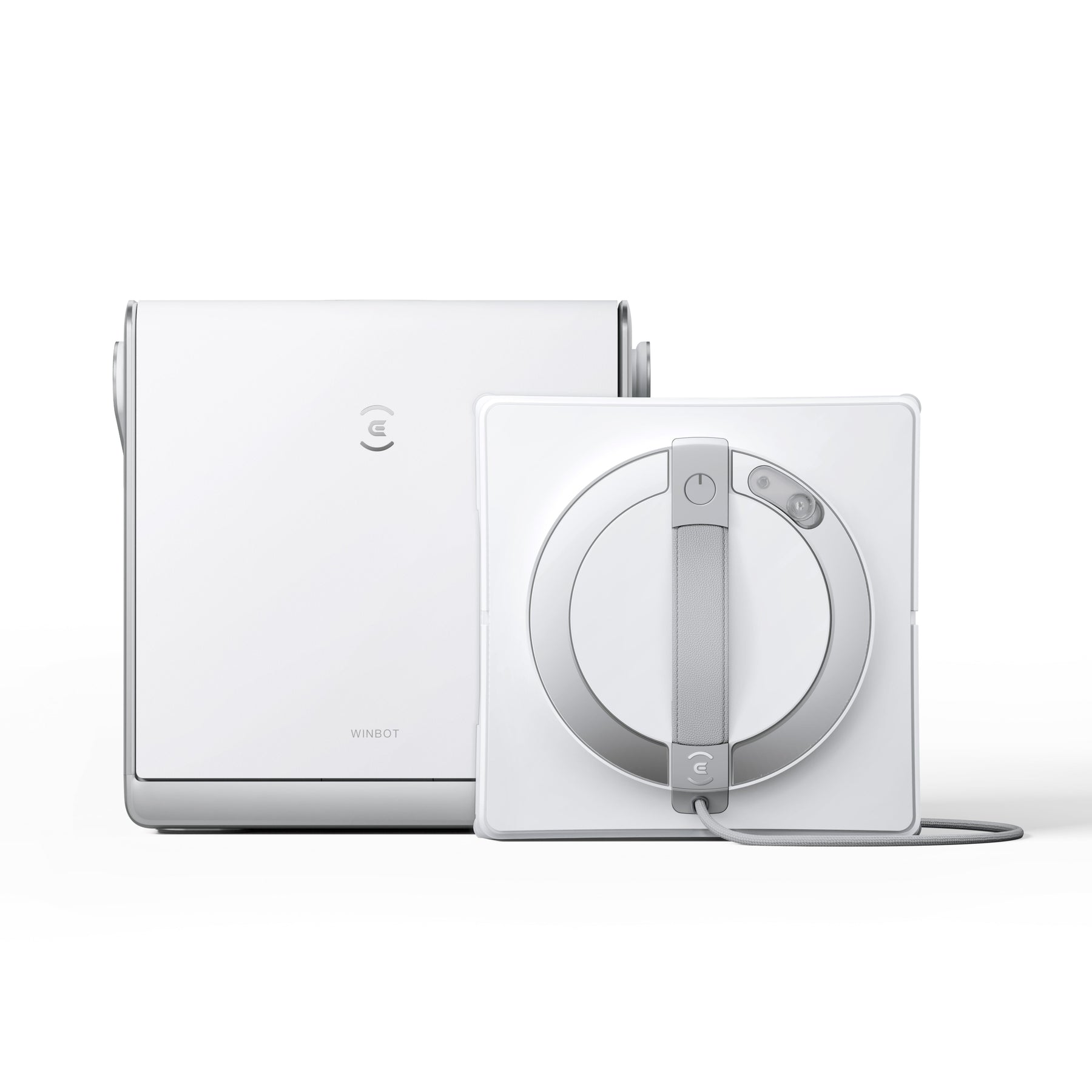

WINBOT W2 OMNI
📌 Limited stock now available for sale
DEEBOT series products enjoy 1-year door-to-door warranty service*, X2, X5, X8 series products enjoy an additional year, starting from the invoice date; Y series and WINBOT series products enjoy 1-year bring-your-own warranty service, starting from the invoice date.
If there are any problems after receiving the product, customers are required to bring the invoice and the product to our repair center to enjoy this maintenance service. Once the online payment process is completed, no returns, refunds, exchanges or order cancellations are accepted for any products. If you click the "Checkout" button to continue, it will be deemed that you agree to the above content.
數量:
| Window Treasure | clean | Automatic water spray (Y/N) | Y |
| APP controlled manual water spray | Y | ||
| Water spraying method | Plastic small hole water spray | ||
| Number of water outlets | 6 | ||
| Water spray width | The upper end exceeds ≤1cm | ||
| Front water spray distance length | ≤30cm | ||
| Water spray uniformity - water spray variance | ≤0.5 | ||
| Water spray coverage | ≥70% | ||
| Automatic adjustment of water spray volume (Y/N) | Y | ||
| Low water level detection (Y/N) | Y | ||
| Border distance detection (Y/N) | Y | ||
| Water tank capacity (ml | 60±5 | ||
| Sustainable water spraying area of water tank (fast mode) (㎡) | 30±3 | ||
| Window cloth material | Microfiber (front/back) | ||
| Rag fleece length | 3mm | ||
| Water content of window cloth (%) | 4 | ||
| Window cleaning cloth size (length x width mm) | 260*251 | ||
| sports | Split drive technology (Y/N) | N | |
| Intelligent rock climbing system | Y | ||
| Fan Type | Brushless Motor | ||
| Operating vacuum degree (Pa) | 2800 Pa | ||
| Maximum vacuum degree (fan) (Pa) | 5500±500 | ||
| Preset mode cleaning efficiency (1X1㎡) | | 2min±15s (fast mode) | ||
| intelligent | Path Planning Technology | WIN-SLAM 4.0 | |
| Multiple cleaning modes | Fast, deep, fine, edge, fixed point | ||
| Automatically return to the starting point after the work is completed (Y/N) | Y | ||
| Minimum obstacle detection height (mm) | 4 | ||
| Minimum detection height of frame (mm) | 2 | ||
| Border detection system (Y/N) | Y | ||
| Pause and resume erasing (Y/N) | Y | ||
| APP control | Y | ||
| Remote Control Mode | Omnidirectional remote control | ||
| Environmental adaptability | Minimum applicable glass size (cm) | 30*40 | |
| Minimum applicable glass thickness (mm) | 3mm | ||
| Use glass angle (angle with vertical surface) | ±30° | ||
| Applicable surface type | All types of flat glass | ||
| Use Window Frame Type | With border & without border | ||
| other | Window treasure size (mm, length x width x height) | 271*271*77.5 | |
| Window treasure weight (kg) | 1.6±0.1 | ||
| Base Station | Pay-off and retracting line | One-button automatic rewinding (Y/N) | Y |
| Rewinding speed control (Y/N) | Y | ||
| Reel load detection (Y/N) | Y | ||
| Composite wire (power cord and safety rope composite) (Y/N) | Y | ||
| Power cord effective length - DC power cord (m) | 5.5 | ||
| Low resistance follow-up pay-off (Y/N) | Y | ||
| Reel pay-off safety lock (Y/N) | Y | ||
| Safety protection | Low power protection (Y/N) | Y | |
| Low power protection duration (minutes) | 30 | ||
| Low battery automatic return (Y/N) | Y | ||
| Automatic rewinding at low power (Y/N) | Y | ||
| Counterweight to prevent falling (Y/N) | Y | ||
| Base station counterweight mass (kg) | 5.5±0.2 | ||
| Vacuum suction cup (Y/N) | Y | ||
| Suction cup automatic control (Y/N) | Y | ||
| Maximum effective suction force of the suction cup (Newton) | ≥800N | ||
| powered by | Support power supply working mode | No need to plug in | |
| Battery specifications (type, mAh) | Lithium 4500mah | ||
| Battery Model | |||
| Nominal battery voltage (volts) | twenty four | ||
| Battery Energy (Wh) | 98.55Wh | ||
| Number of batteries | 12 | ||
| Battery weight (g) | Approx. 1330 | ||
| Rated power (Watt) | 126W | ||
| Rated voltage (V) | 24V | ||
| Charging time - 0 to full (hours) (charging in standby mode) | ≤3h | ||
| Battery life (minutes) | 110min±10% | ||
| Full battery life area - fast mode (square meters) | Approx. 55 | ||
| Full battery life area - depth mode (square meters) | Approx. 22 | ||
| other | Multi-function operation panel (Y/N) | Y | |
| One-button power on/off (Y/N) | Y | ||
| One-click return to origin (Y/N) | Y | ||
| Voice reminder (Y/N) | Y | ||
| Support OTA upgrade (Y/N) | Y | ||
| Adapter Model | GM65-240275-D or BLJ66W240275P-C |
||
| Adapter Input Parameters | 90~264VAC 47Hz-63Hz | ||
| Adapter output parameters | 24V/2.75A | ||
| Adapter power cord length - AC power cord (m) | 1.8 | ||
| Spare safety rope length (m) | 1 | ||
| Detergent capacity (ml) | 230 | ||
| Filling nozzle (Y/N) | Y | ||
| Base station size (mm, length x width x height) | 312*215*327 | ||
| SKU Package Contents | Window Treasure | 1 | |
| Base Station | 1 | ||
| Remote Control | NA | ||
| adapter | NA | ||
| Power extension cord | NA | ||
| Safety rope | 1 | ||
| Safety lock | 1 | ||
| Window cleaning cloth quantity | 2 | ||
| Cleaning fluid | 1 | ||
| Measuring cup | 0 | ||
| manual | 1 | ||
| SKU packaging information | Outer packaging net weight (kg) | 7.2 | |
| Outer packaging gross weight (kg) | 8.5 | ||
| Outer packaging size (mm, length x width x height) | 380*297*406 | ||
manual
WINBOT W2 OMNI_instruction.pdf
Quick Start Guide
QuickStartGuide-W2 OMNI.pdf
Features and specifications subject to change without notice. Product testing is performed in a standard laboratory environment. Actual performance may vary. *Determined based on actual area and environment
Buy together

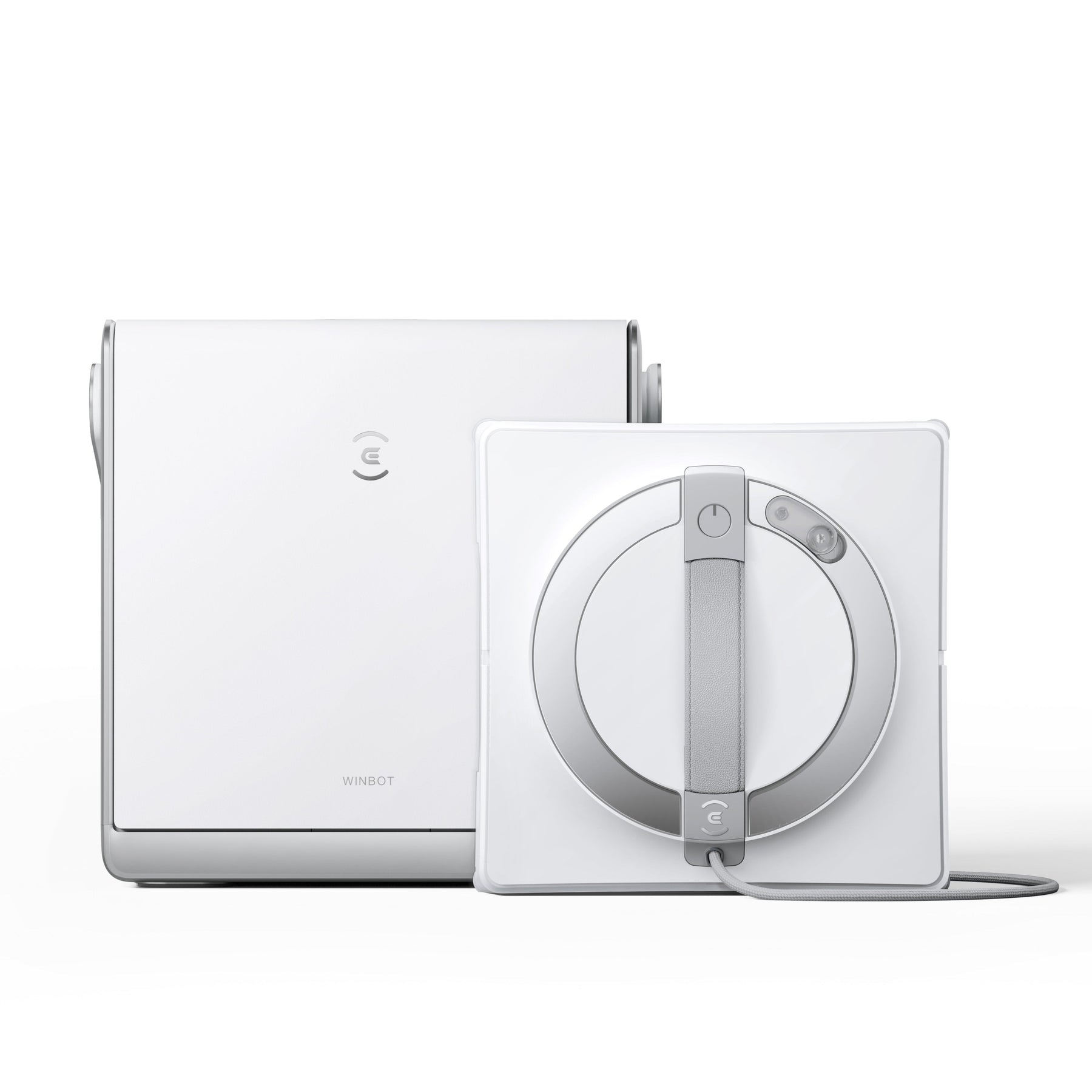

WINBOT W2 OMNI
Elegant cleaning, worry-free
The first portable mobile charging station
Works anywhere, regardless of sockets*
Innovative ultra-wide glass cleaning
Large window friendly, new window cleaning experience*
Fall Arrest System
Peace of mind, ultimate peace of mind
Exclusive three-nozzle wide-angle atomization technology
Constant moisture mop, more efficient cleaning*
Multiple scene usage*
Make the best use of resources and release new value
Cleaning along the edge
Frame killer, new window cleaning experienceElegant Cleanliness
New window cleaning experience Multifunctional portable charging stand

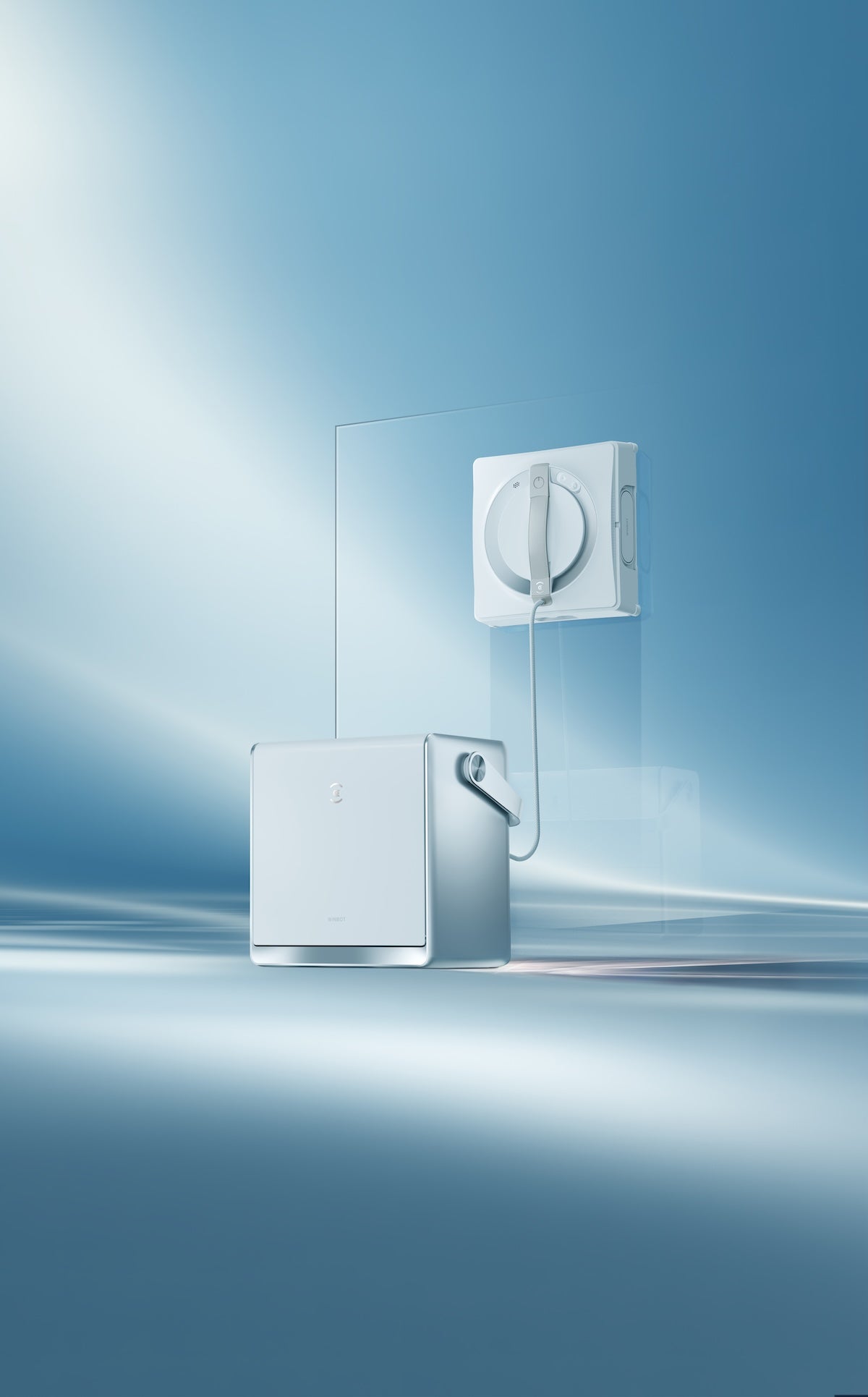

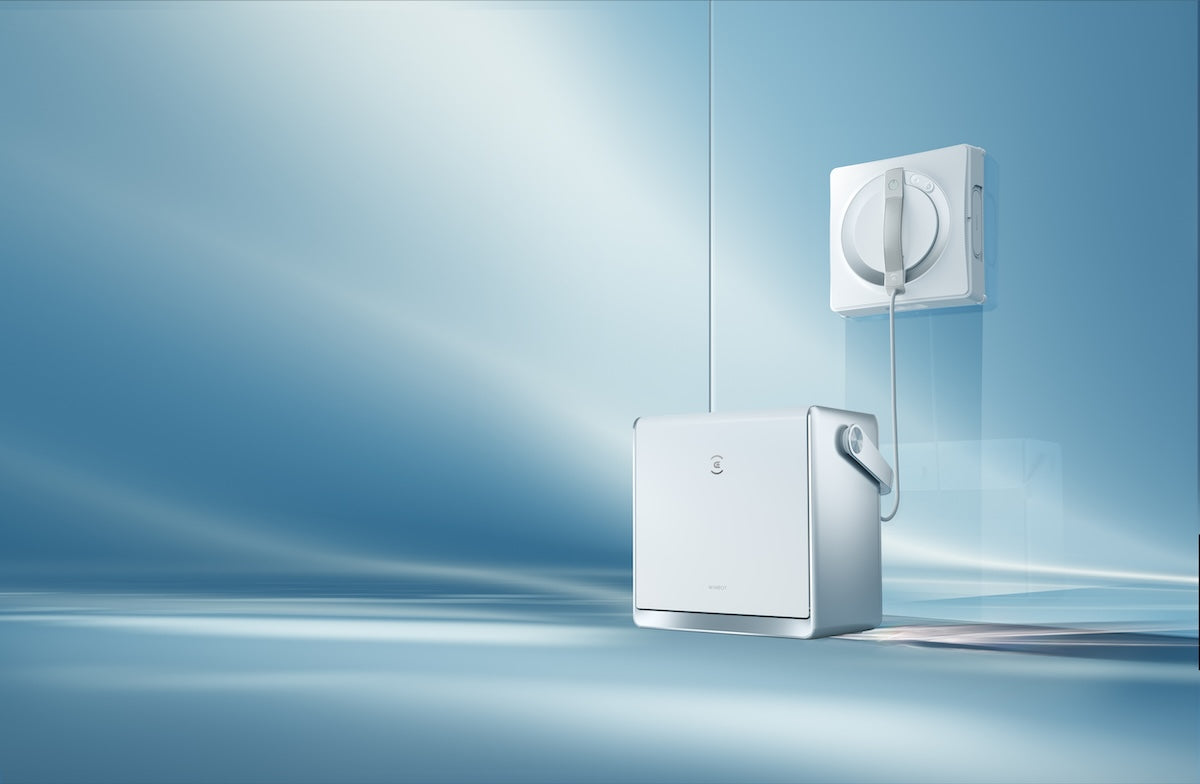

WINBOT W2 OMNI

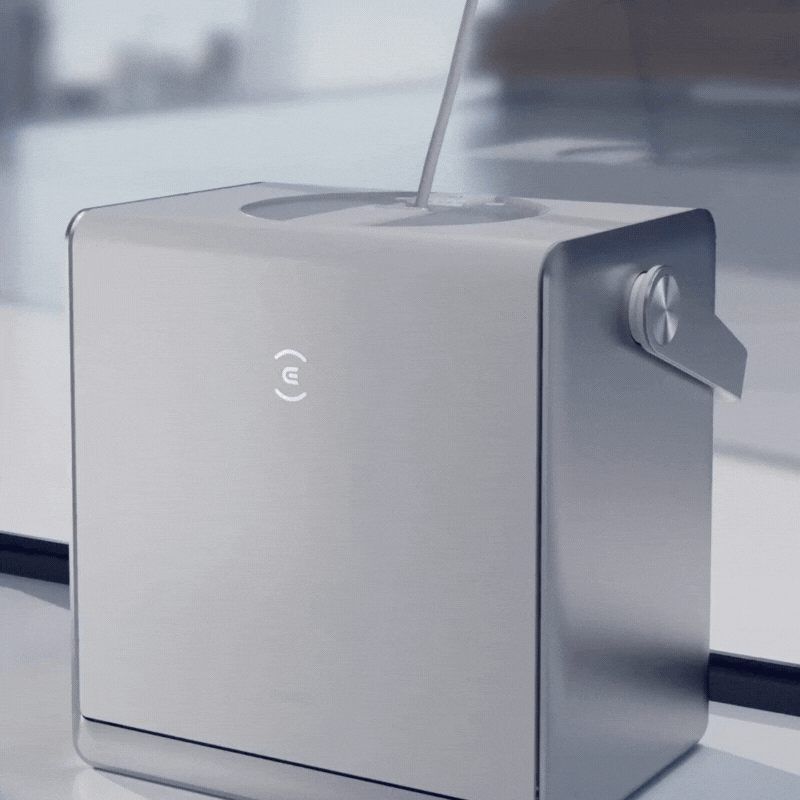

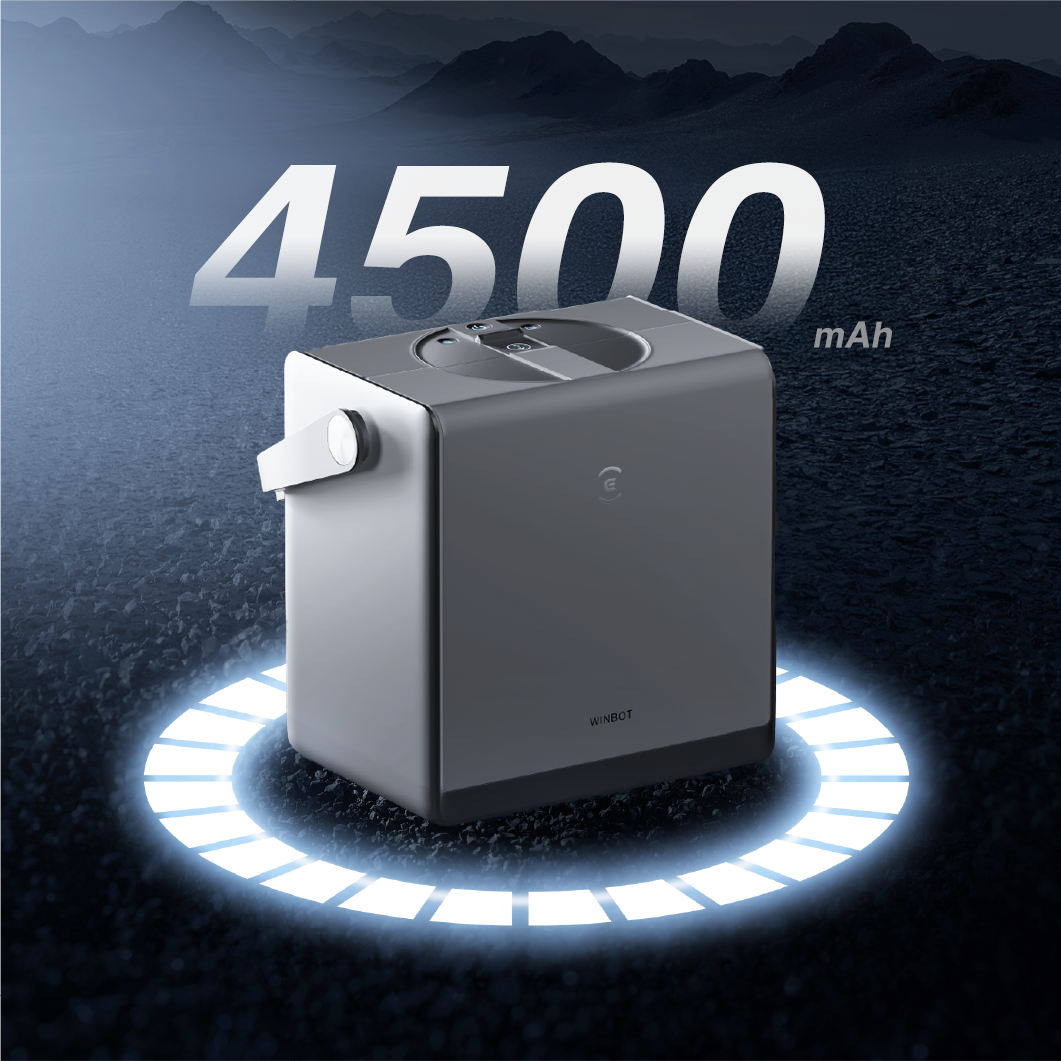

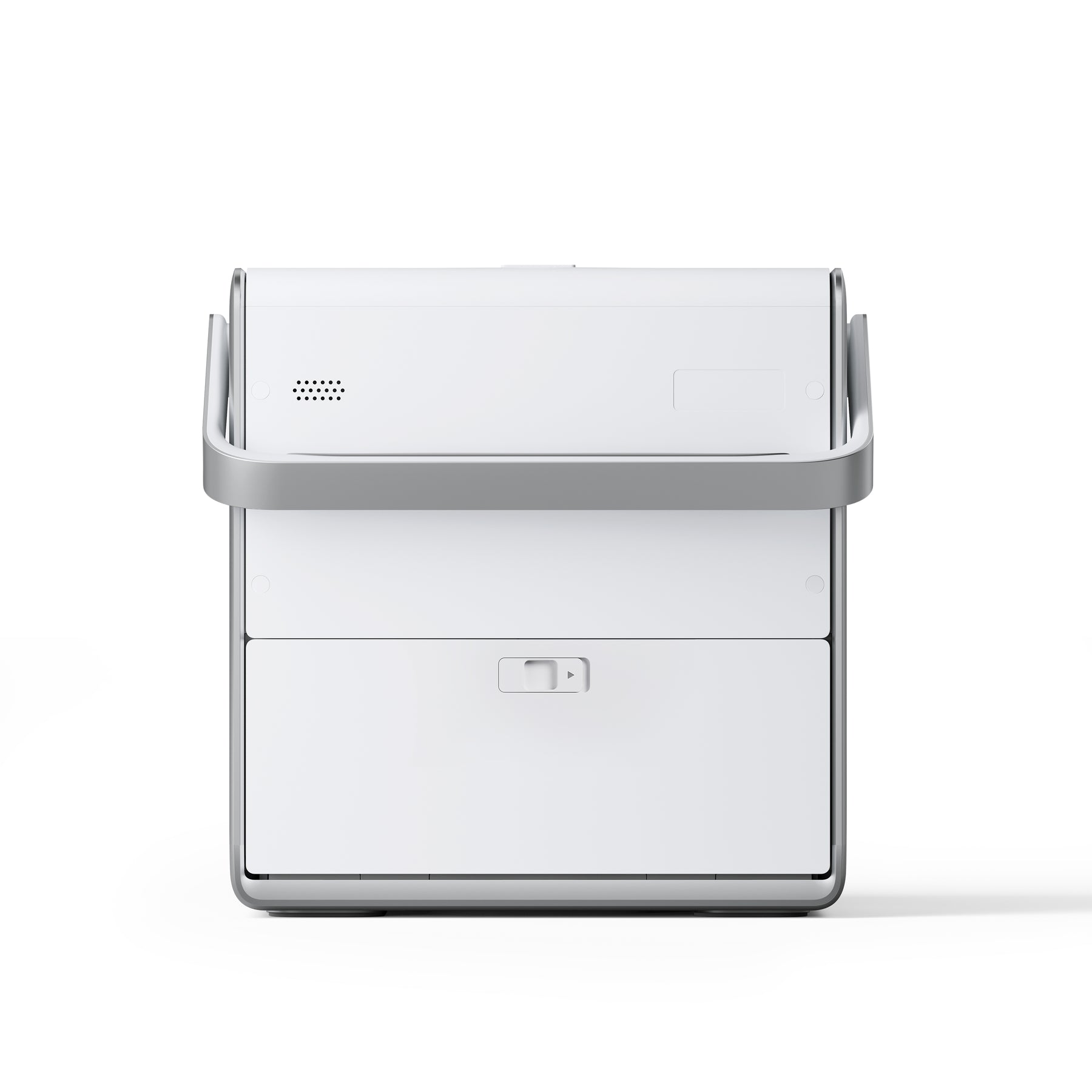

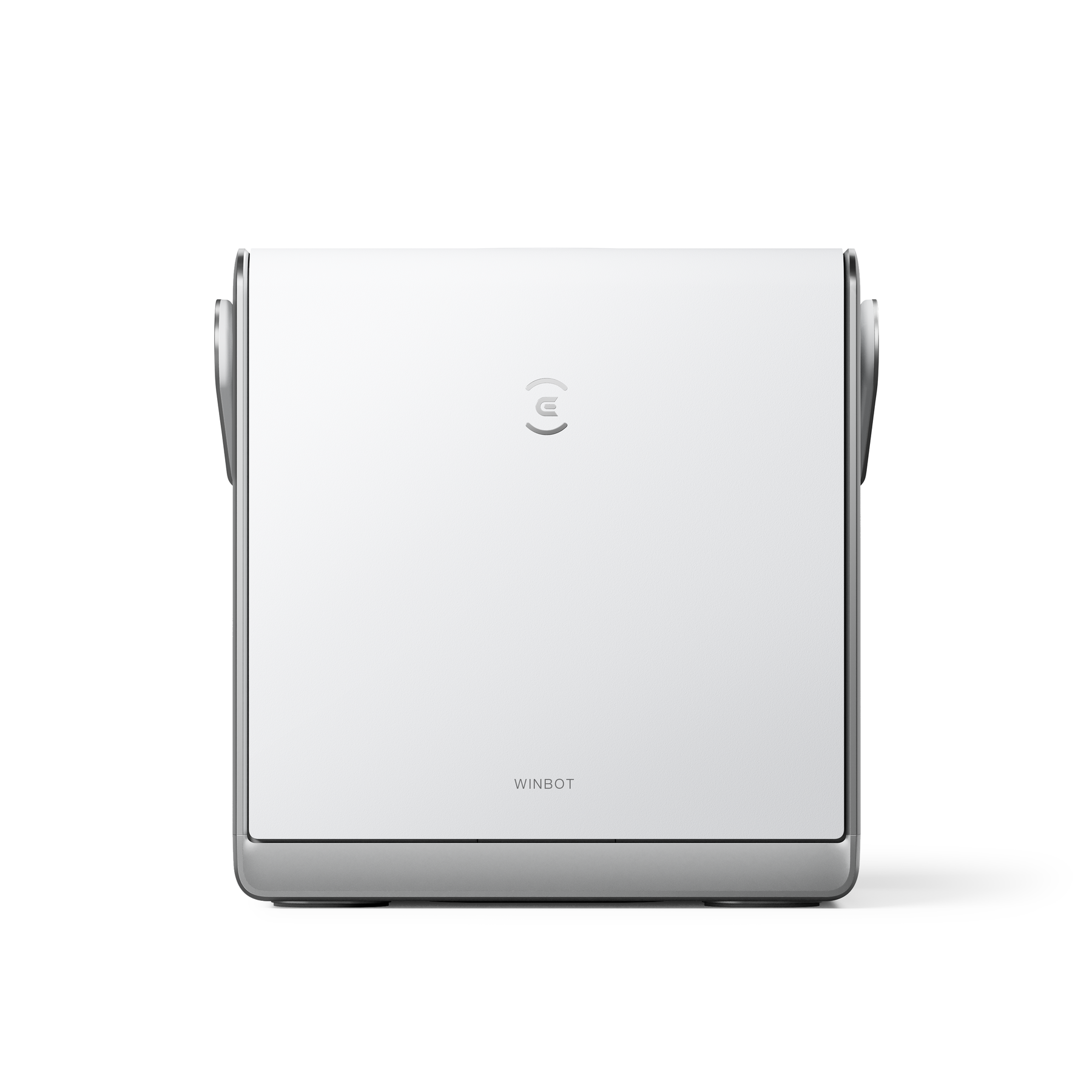

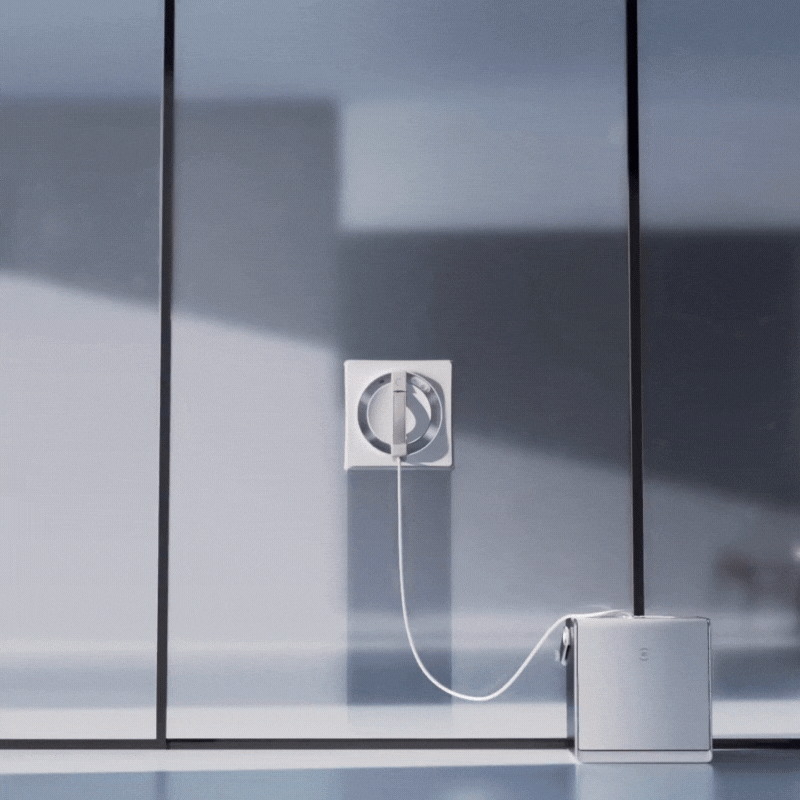

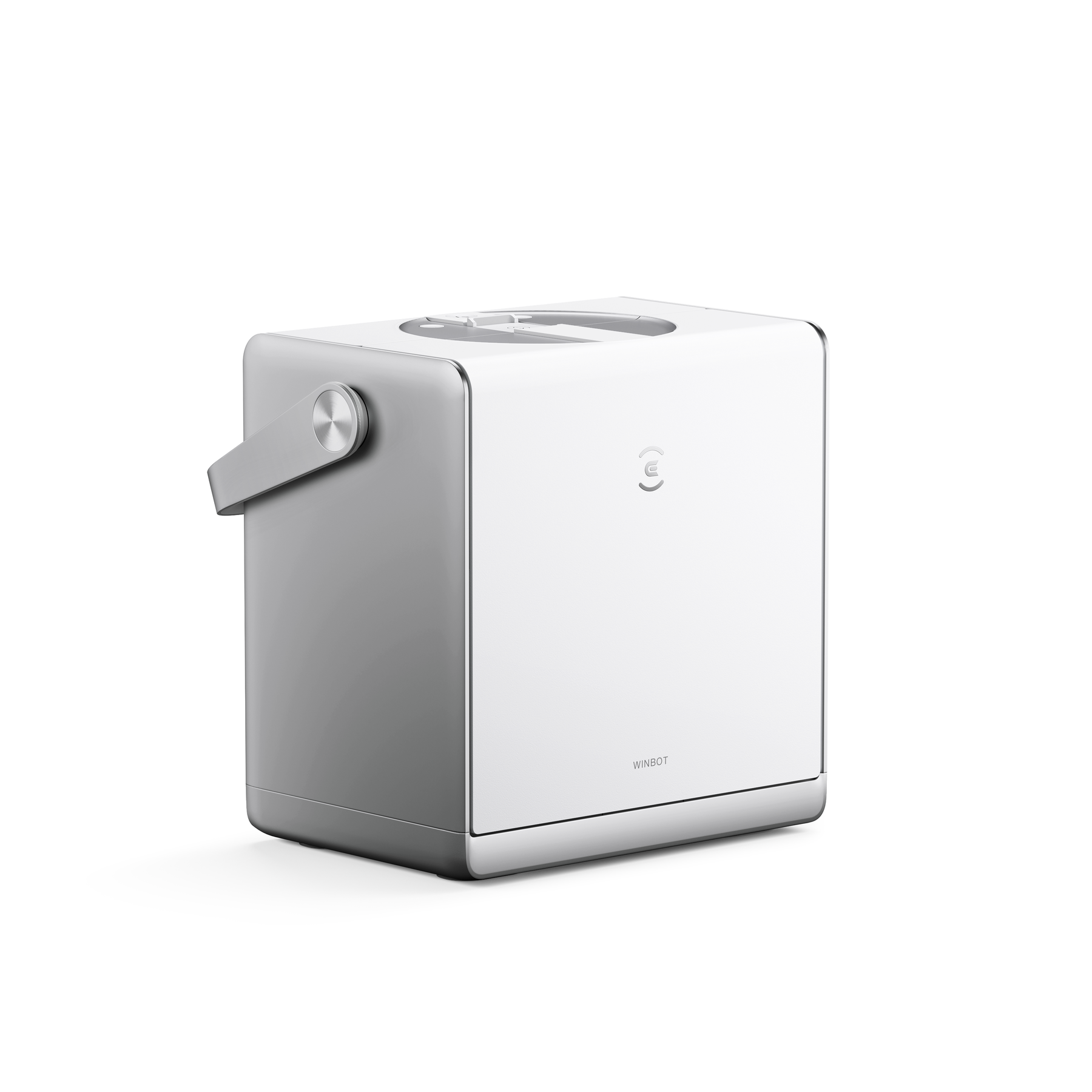

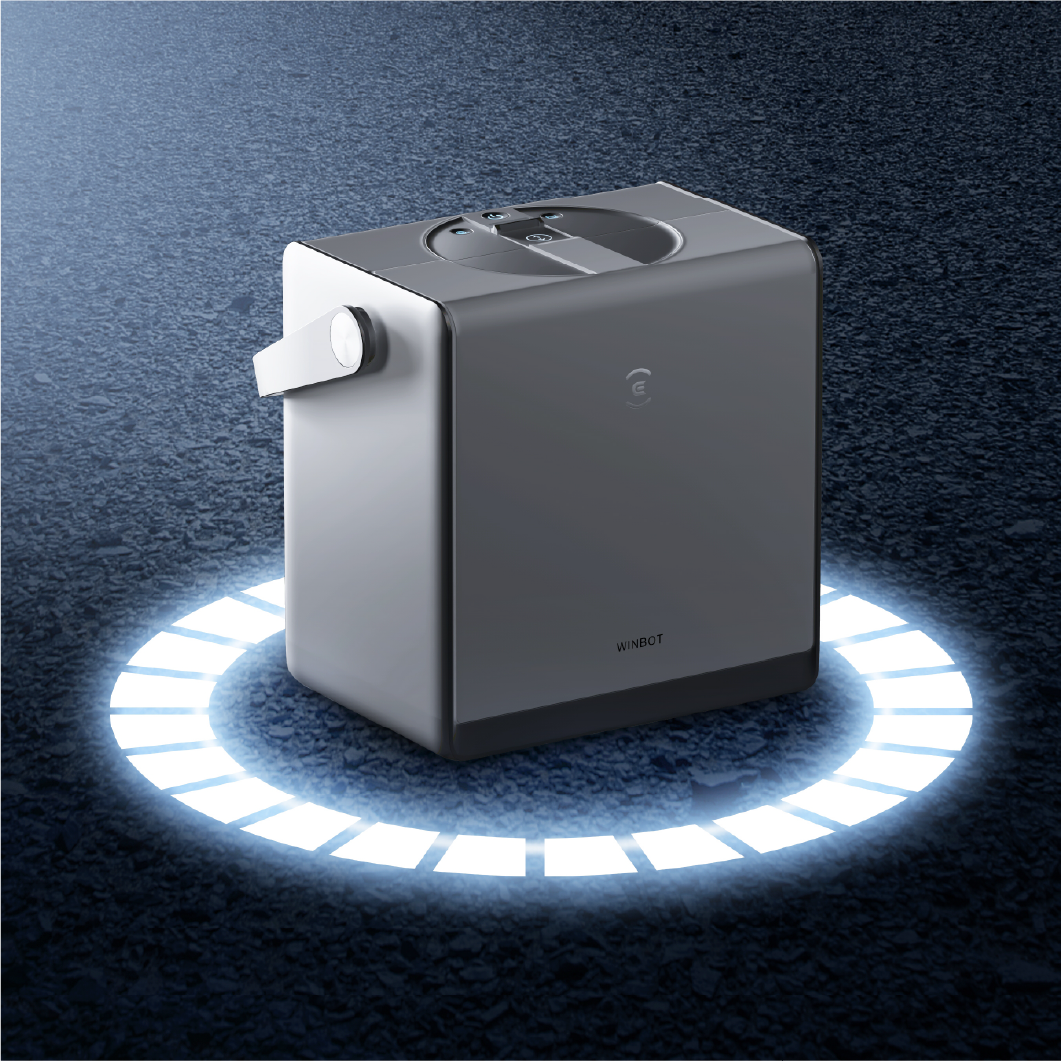

Mobile charging station
Window cleaning without limits, pursuit of freedom without boundaries
One charge can be used continuously for about 110 minutes, and the cleaning coverage area is up to 55 square meters
The new all-in-one multi-function charging station comprehensively improves window cleaning efficiency and user experience

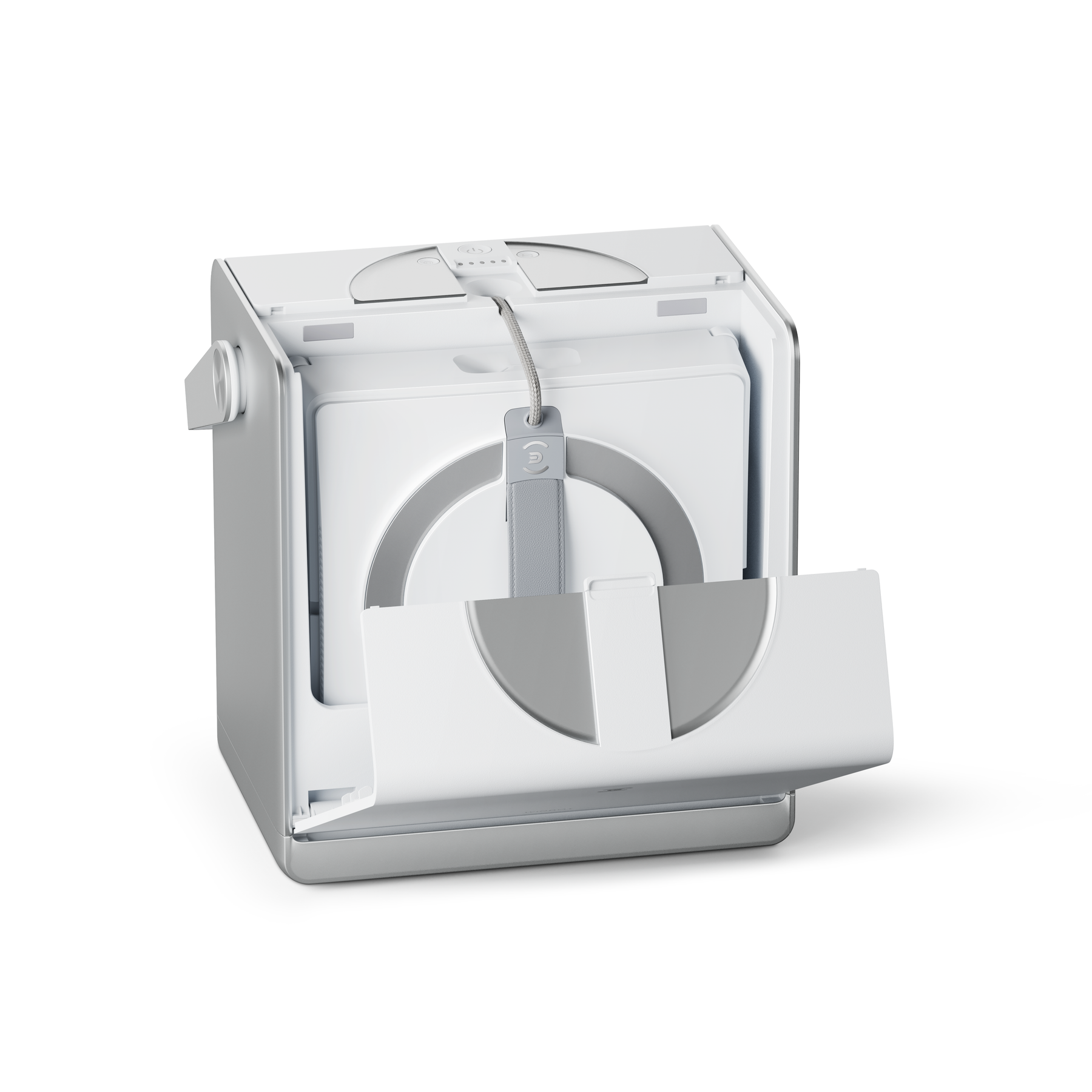

Integrated control panel, charging, stabilizer and portable storage, no need to plug in, not restricted by sockets, clean at any time
WINBOT W2 OMNI

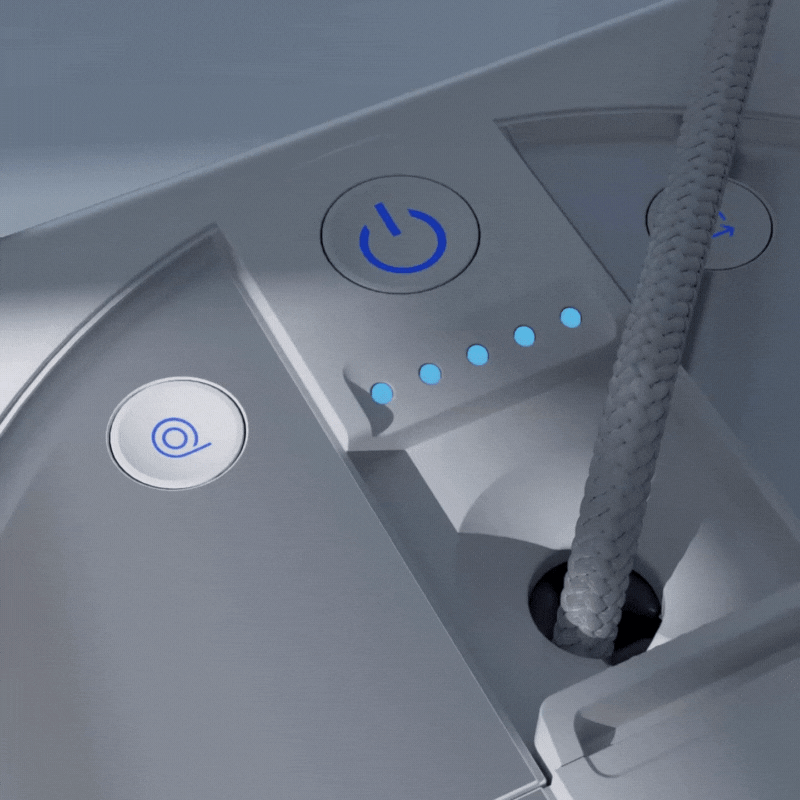

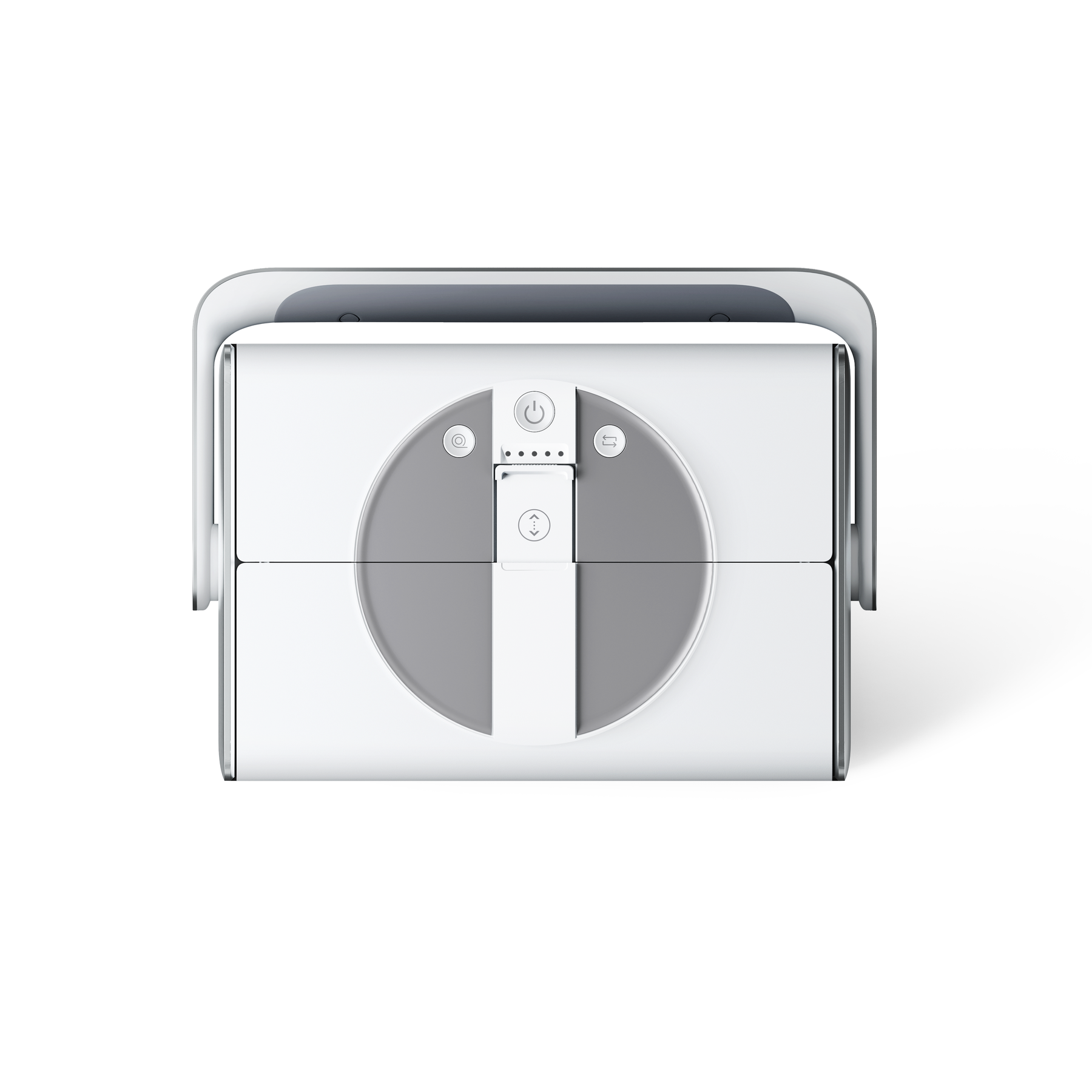

Multifunctional control panel Simple operation, advanced enjoyment
The six-in-one operation panel integrates automatic wire reeling, power on/off, start/pause, cleaning mode switching, return to starting point, and suction cup release, allowing for comprehensive control with just one click.
WINBOT W2 OMNI

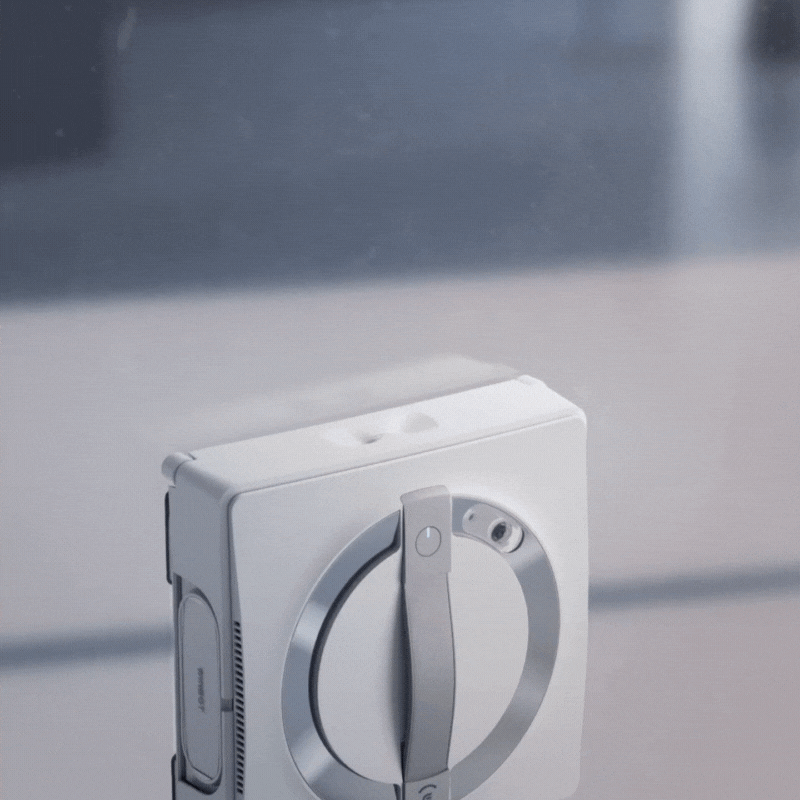

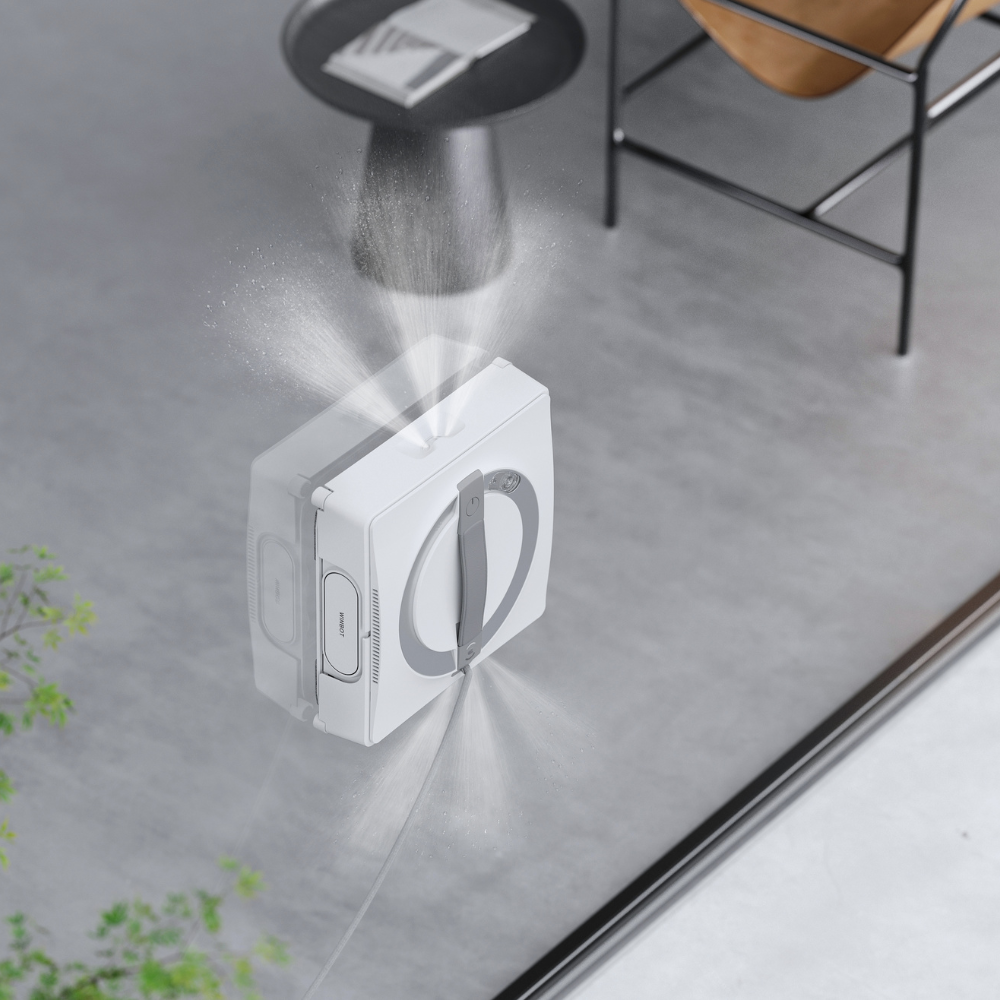

Three nozzles with wide-angle atomization spray, high-pressure atomization dissolves dirt like magic
The newly upgraded three-nozzle wide-angle atomizing water spray and constant wet cloth make cleaning more efficient and remove dirt with just one wipe.
90% coverage improvement*
133% more water spray*
70g/min Unit water spraying amount*
Low noise operation, experience quiet window cleaning time
The optimized air duct design effectively reduces air flow speed and noise, and the maximum operating noise is reduced from 76dB to a minimum of 63dB, making the cleaning process quieter and more comfortable.

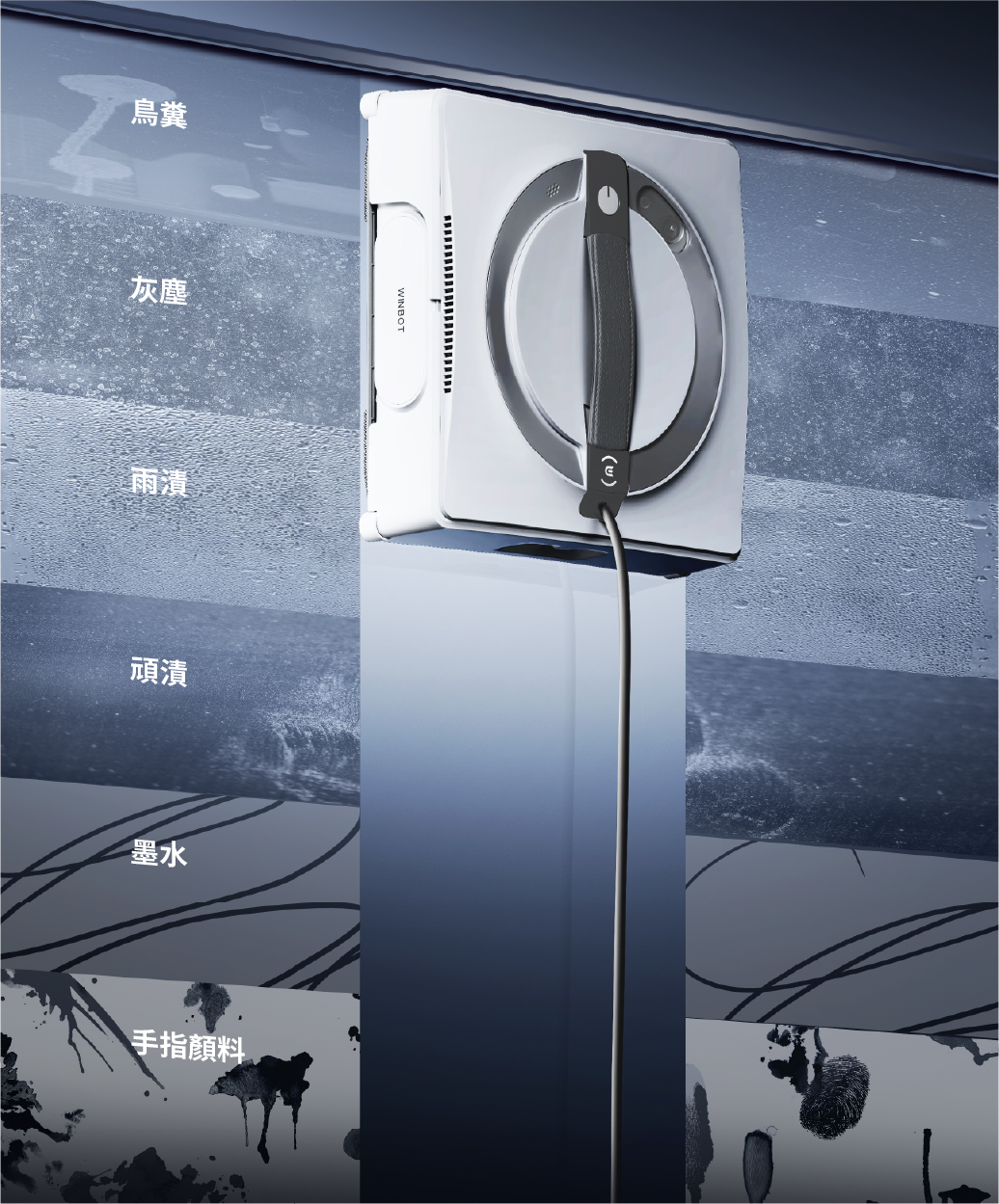

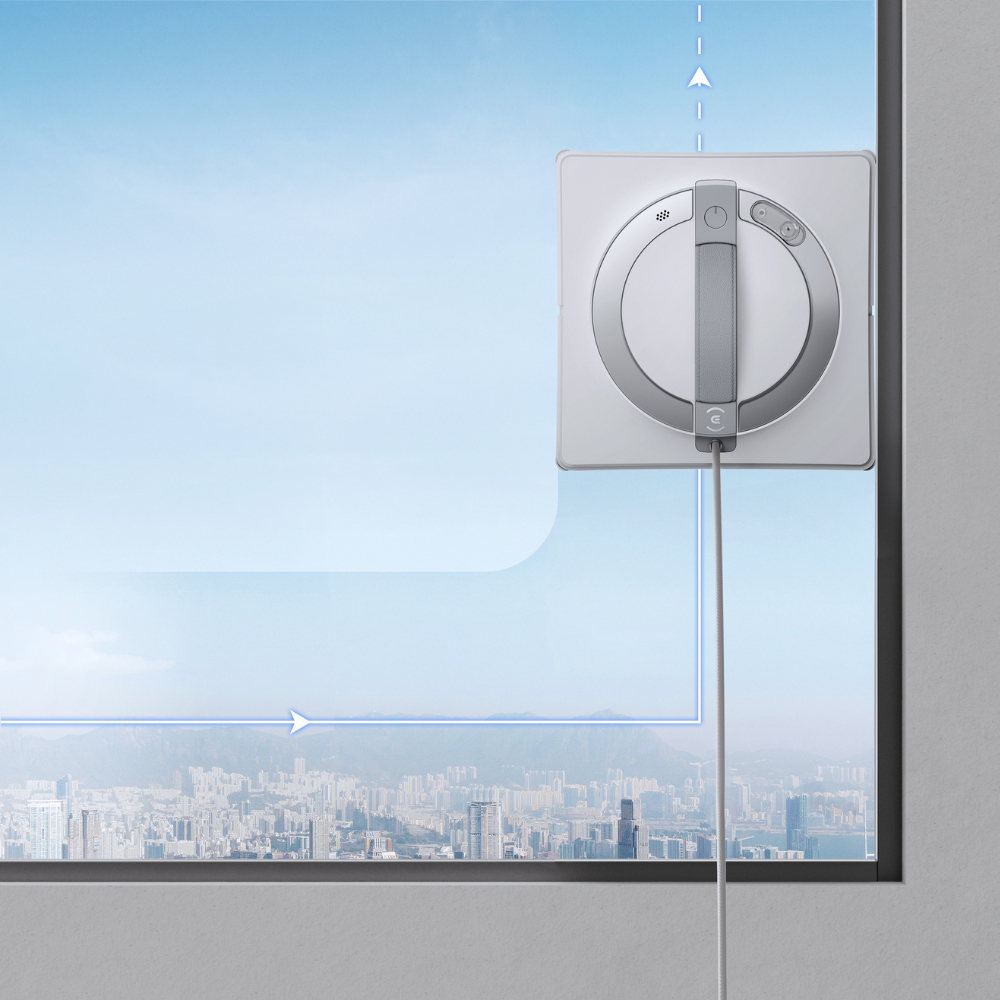

Cleaning along the edge
Pushing the dust to create a new look with full transparency

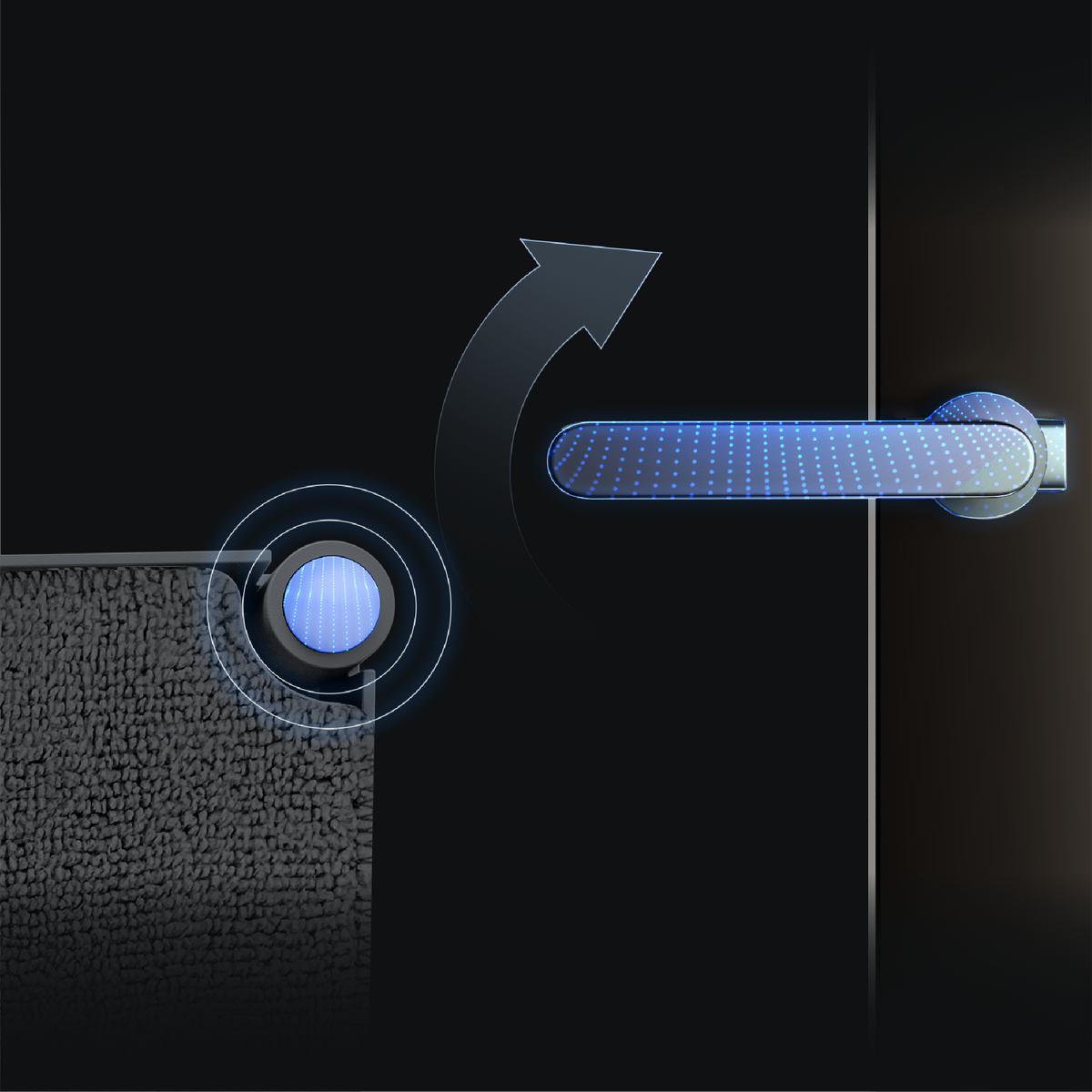

Edge detection system for accurate obstacle avoidance

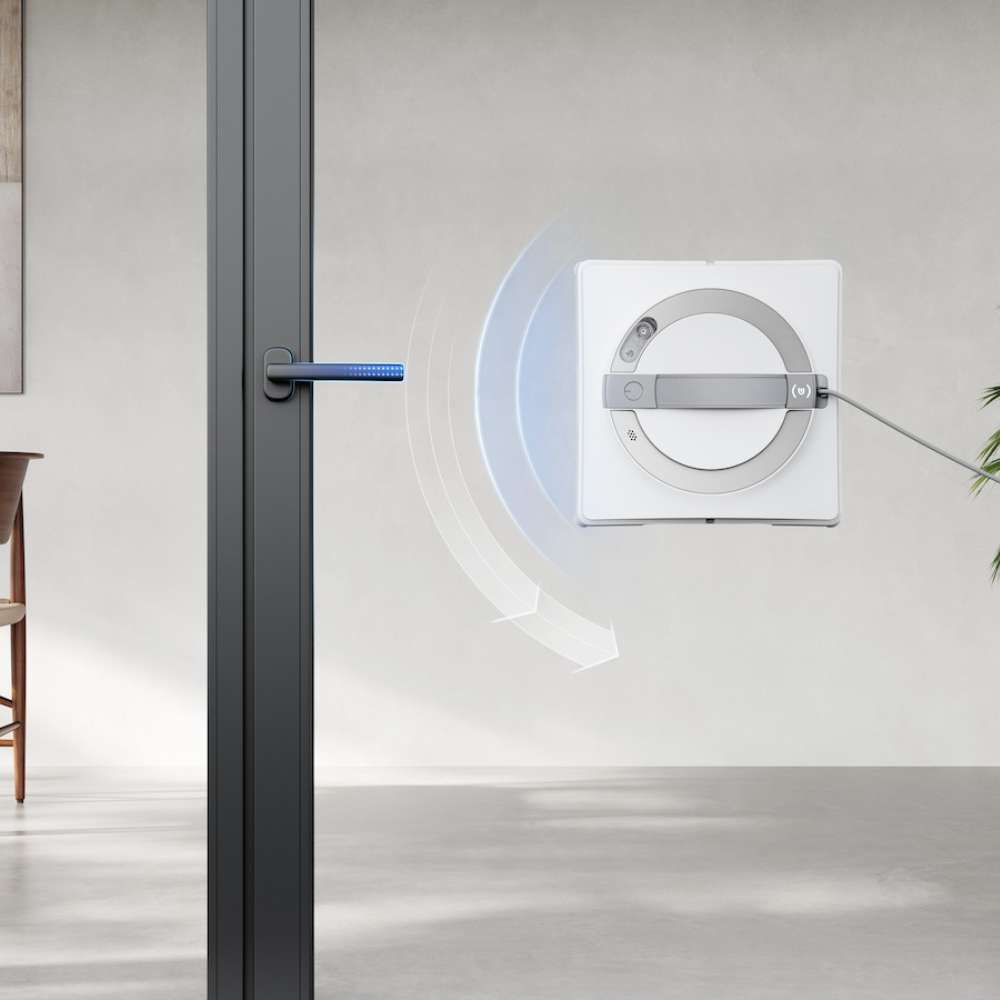

Flexible obstacle avoidance: bypass obstacles such as window handles, flexibly
Automatic gravity compensation
Adjust suction power according to air pressure Light-speed reaction, only 0.04 seconds

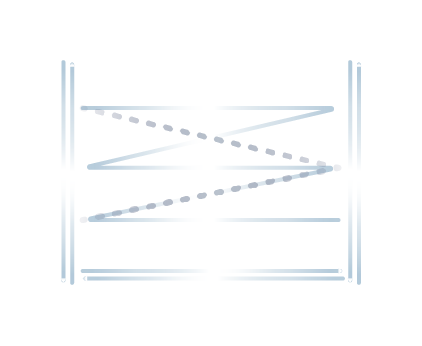

Algorithm upgrade Deep cleaning along the edges

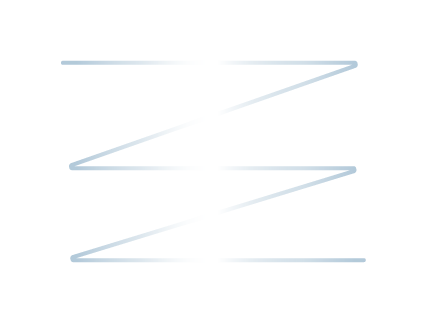

After finishing the bow path, clean the edge again
WINBOT W2 OMNI
Intelligent planning makes walking elegant and luxurious
The software and hardware are fully upgraded to create an efficient cleaning experience. The newly upgraded brushless motor has a faster motor speed, faster travel, and quieter operation. The WIN-SLAM 4.0 optimization and upgrade enables efficient turning, faster return, and smoother travel.
14cm/s walking speed
30% Cleaning Efficiency Improvement*
WIN-SLAM4.0 Ultimate cleaning power and 4K vision
Five cleaning modes, intelligent and comprehensive upgrade
Quick Cleaning
Daily dirt
Delicate cleaning
Deep dirt
Deep Cleaning
Complex environment cleaning
Cleaning along the edge
Wipe the border
Spot cleaning
Stubborn Stains
Peace of mind
Twelve-layer safety protection, reliable and safe to use
WINBOT W2 OMNI

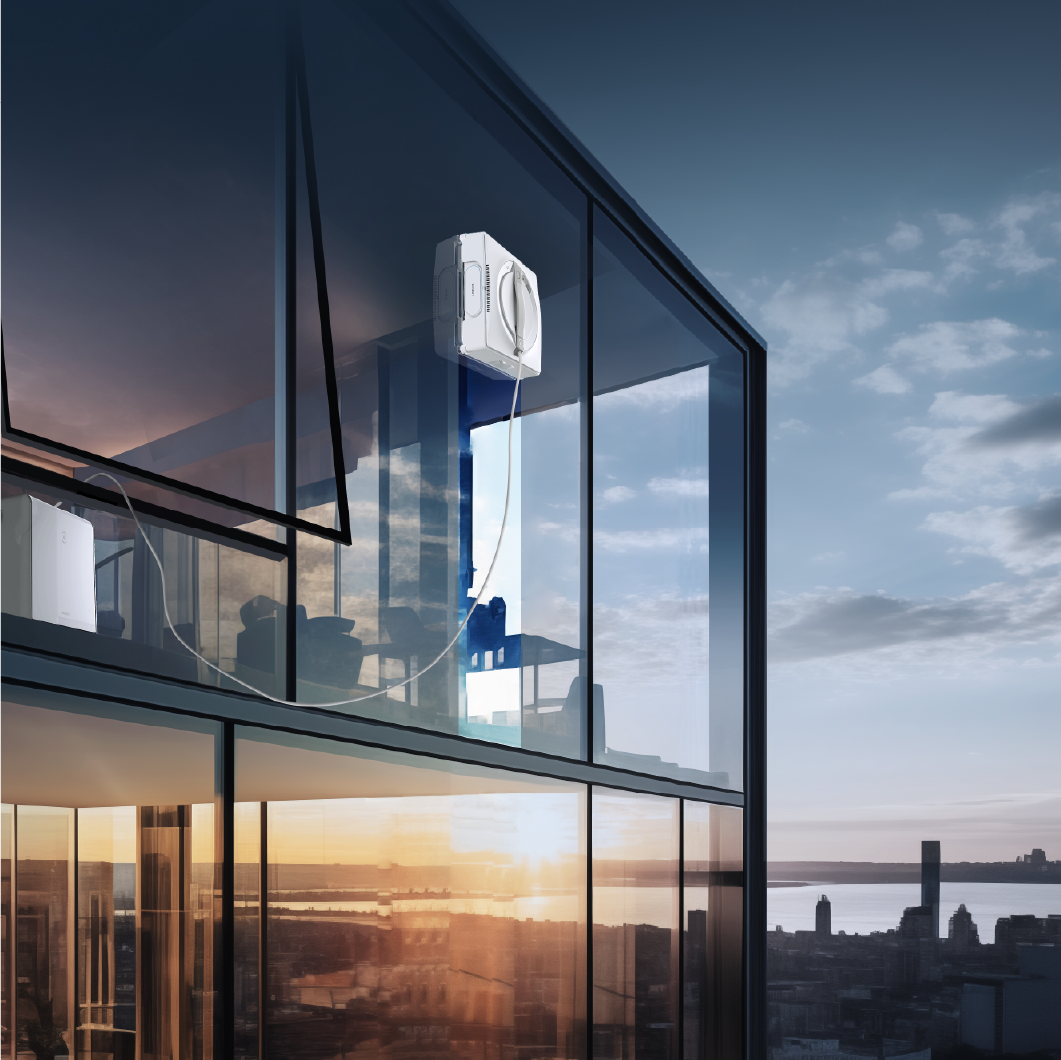

No fear of high-rise window cleaning

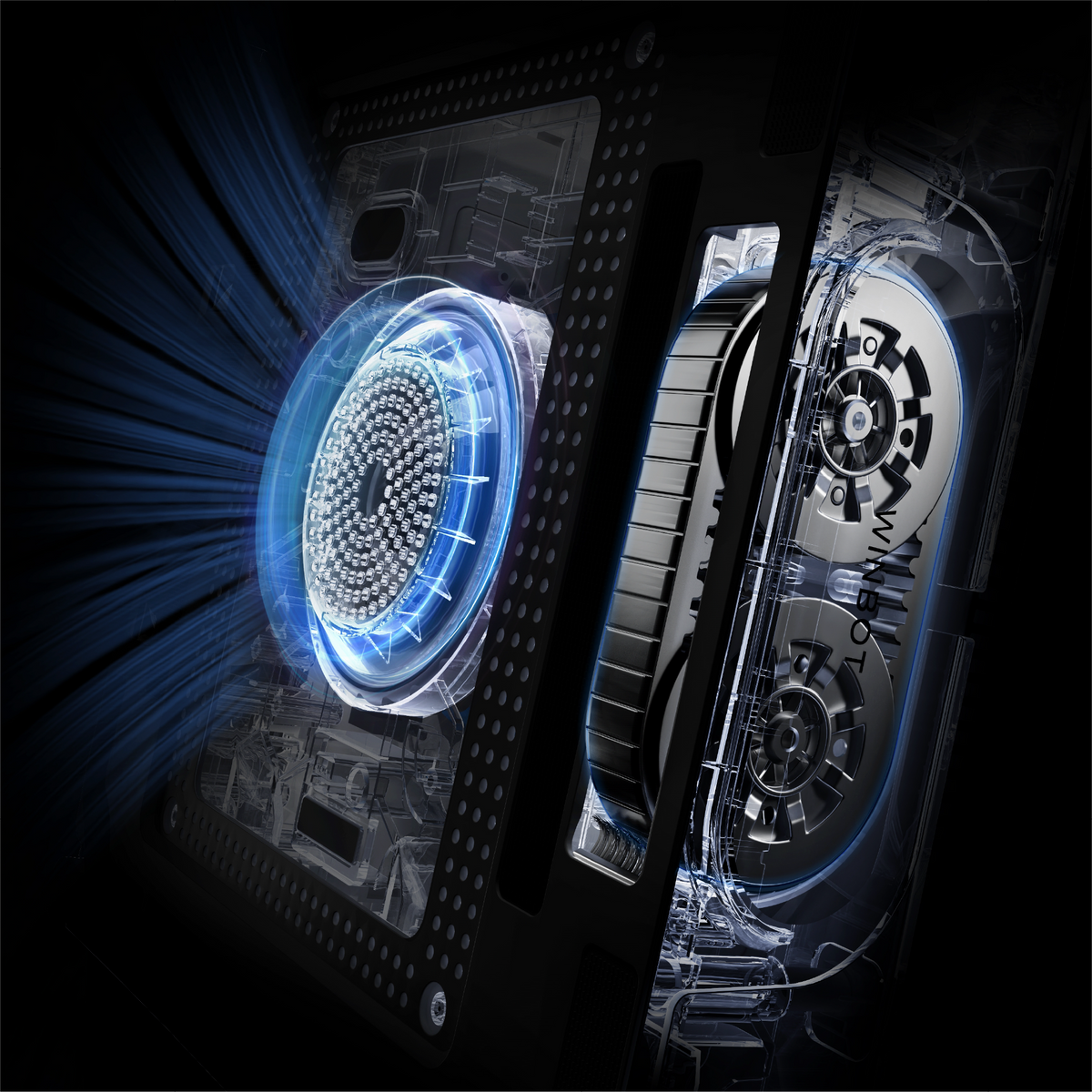

Smart rock climbing system with five-layer anti-slip design
WINBOT's five-layer anti-slip design is upgraded again, so you don't have to worry about climbing or lateral movement
WINBOT W2 OMNI

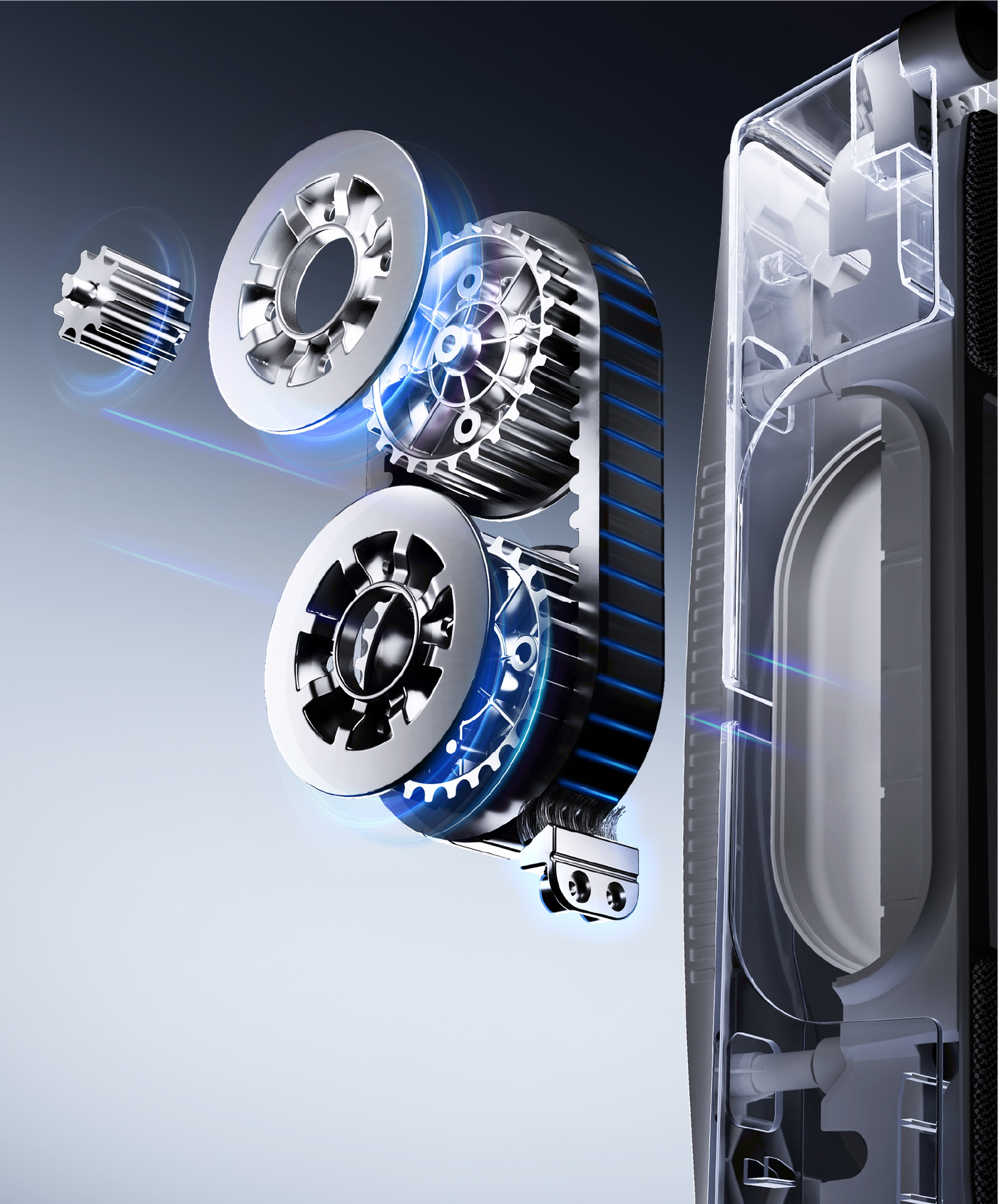

The driving wheel is external, so climbing is more stable
1. The three-point support of the track increases the contact area between the driving wheel and the glass, making the anti-skid effect better
2. Track self-cleaning ECOVACS patent The track is self-cleaning, and the built-in brush cleans the dust in real time
3. Automatic intelligent gravity compensation When moving horizontally, it will intelligently replenish gravity to keep the robot moving steadily
4. The newly upgraded track 2.0 has a three-layer structure, with less inner stretchability, tightly fitting the gears and not easy to slip.
2. Track self-cleaning ECOVACS patent The track is self-cleaning, and the built-in brush cleans the dust in real time
3. Automatic intelligent gravity compensation When moving horizontally, it will intelligently replenish gravity to keep the robot moving steadily
4. The newly upgraded track 2.0 has a three-layer structure, with less inner stretchability, tightly fitting the gears and not easy to slip.
WINBOT W2 OMNI
Basic safety assurance automatic gravity compensation
Automatic air pressure compensation, 0.04s rapid response*

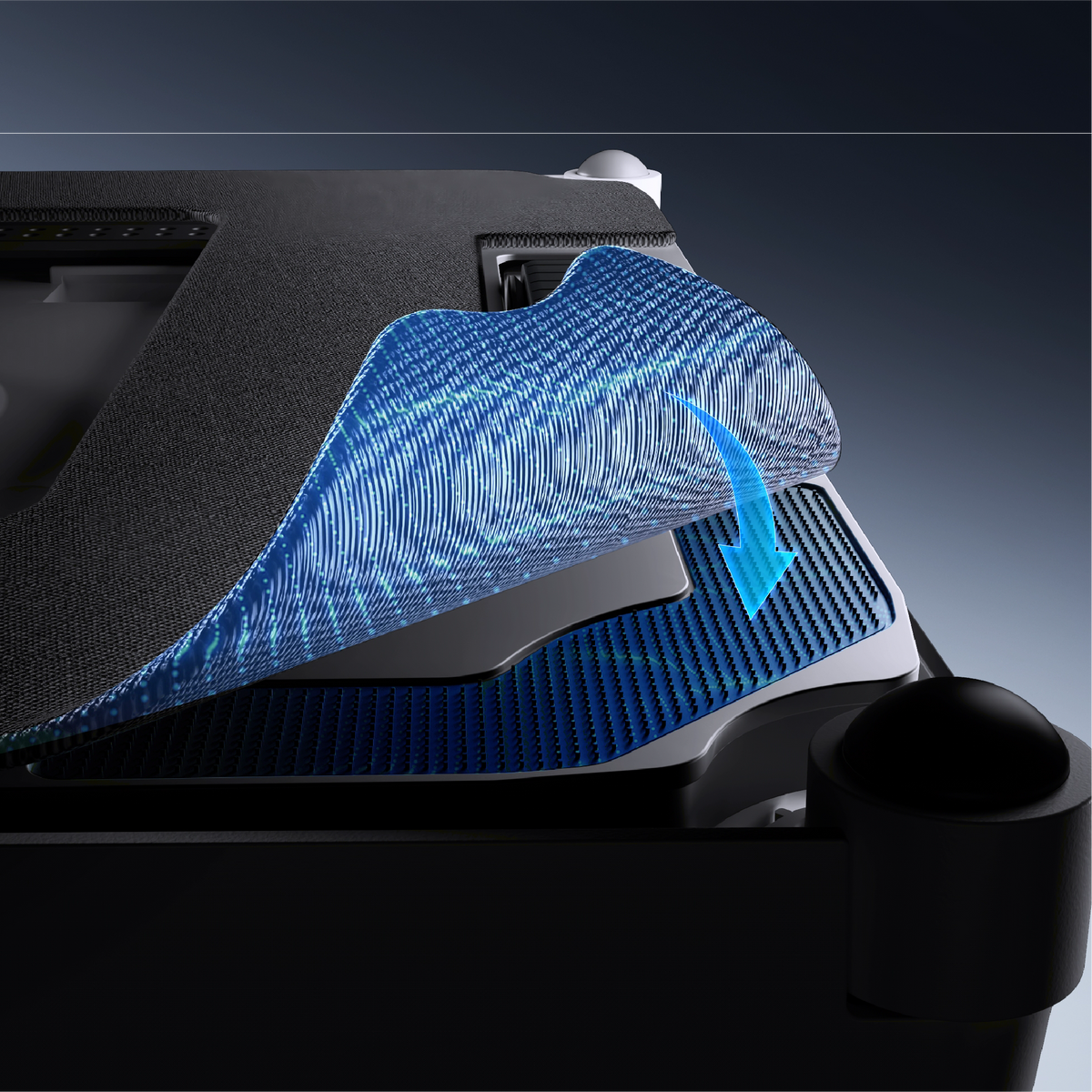

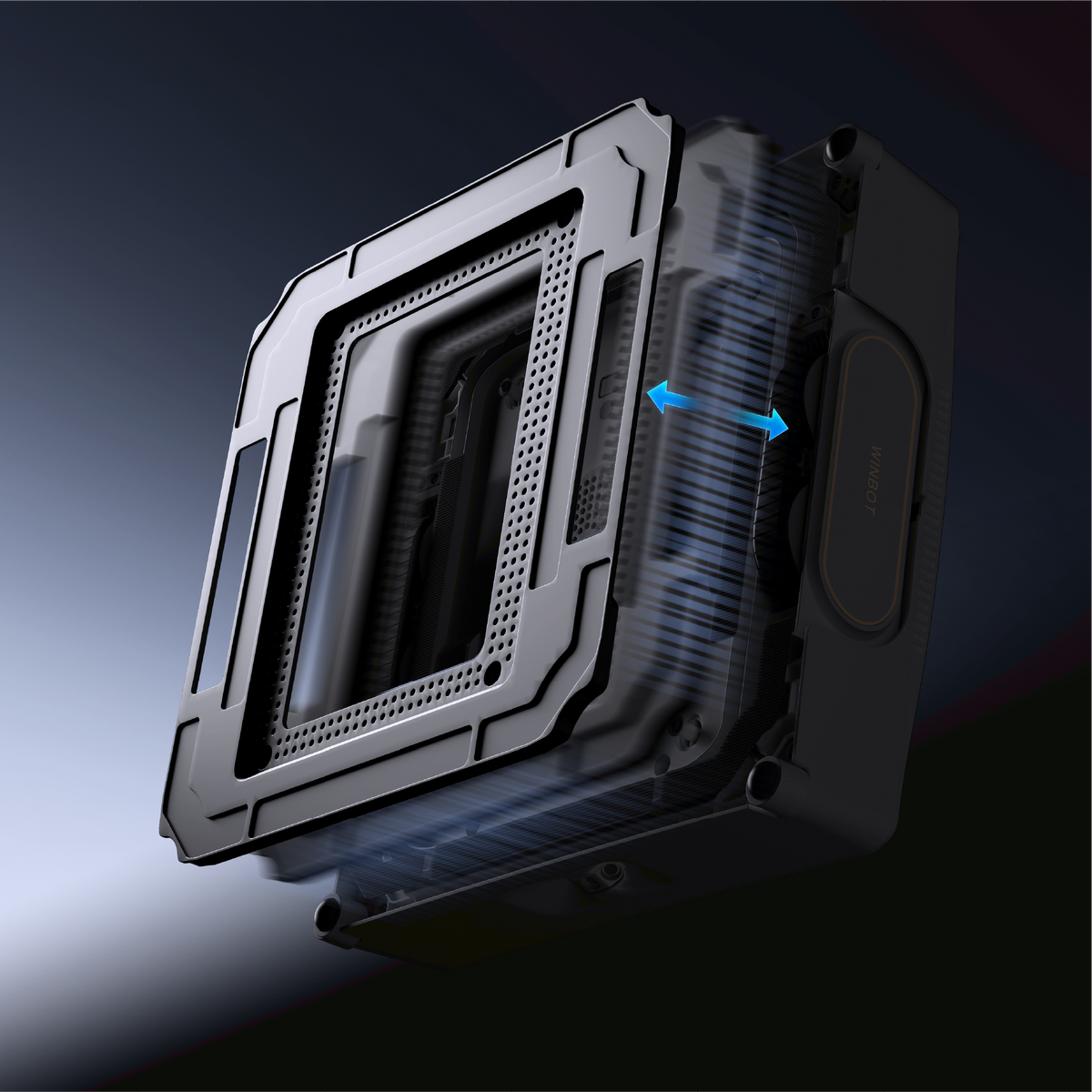

New design rag
Tight fit
Floating mop holder
Provides cushioning

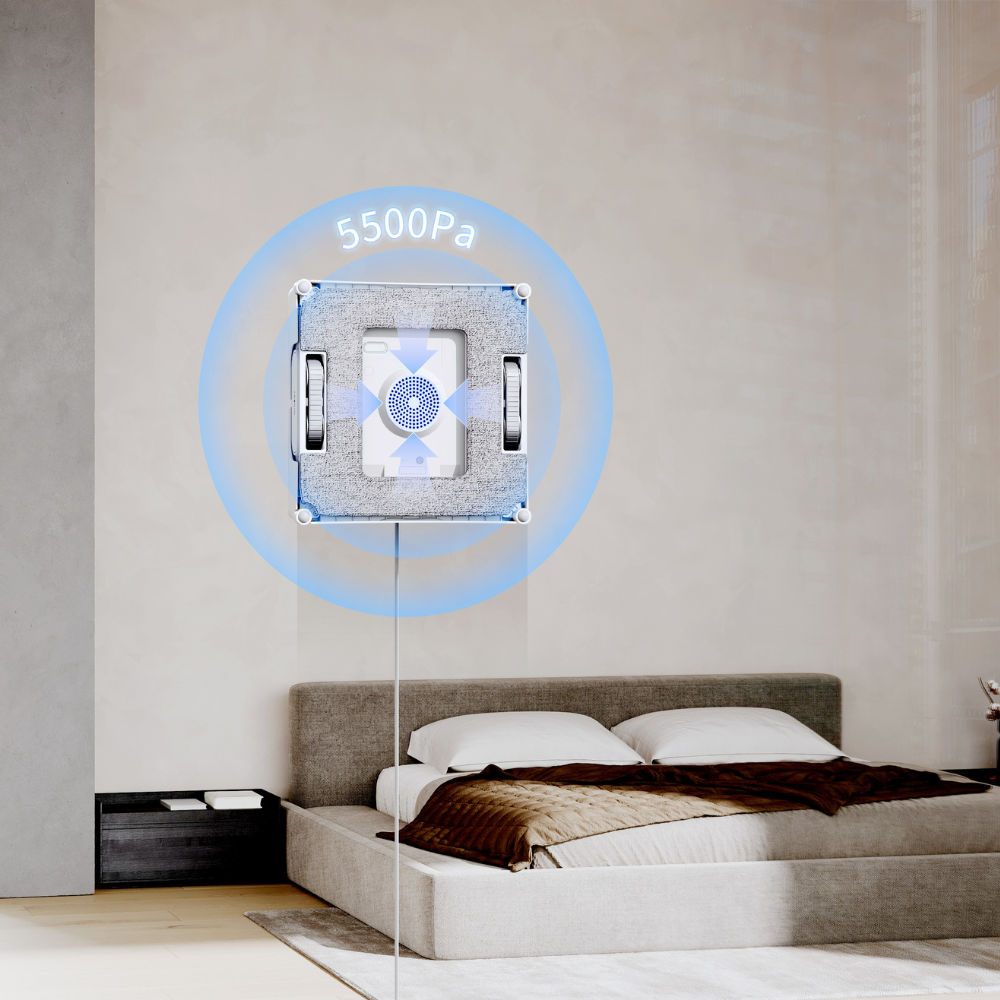

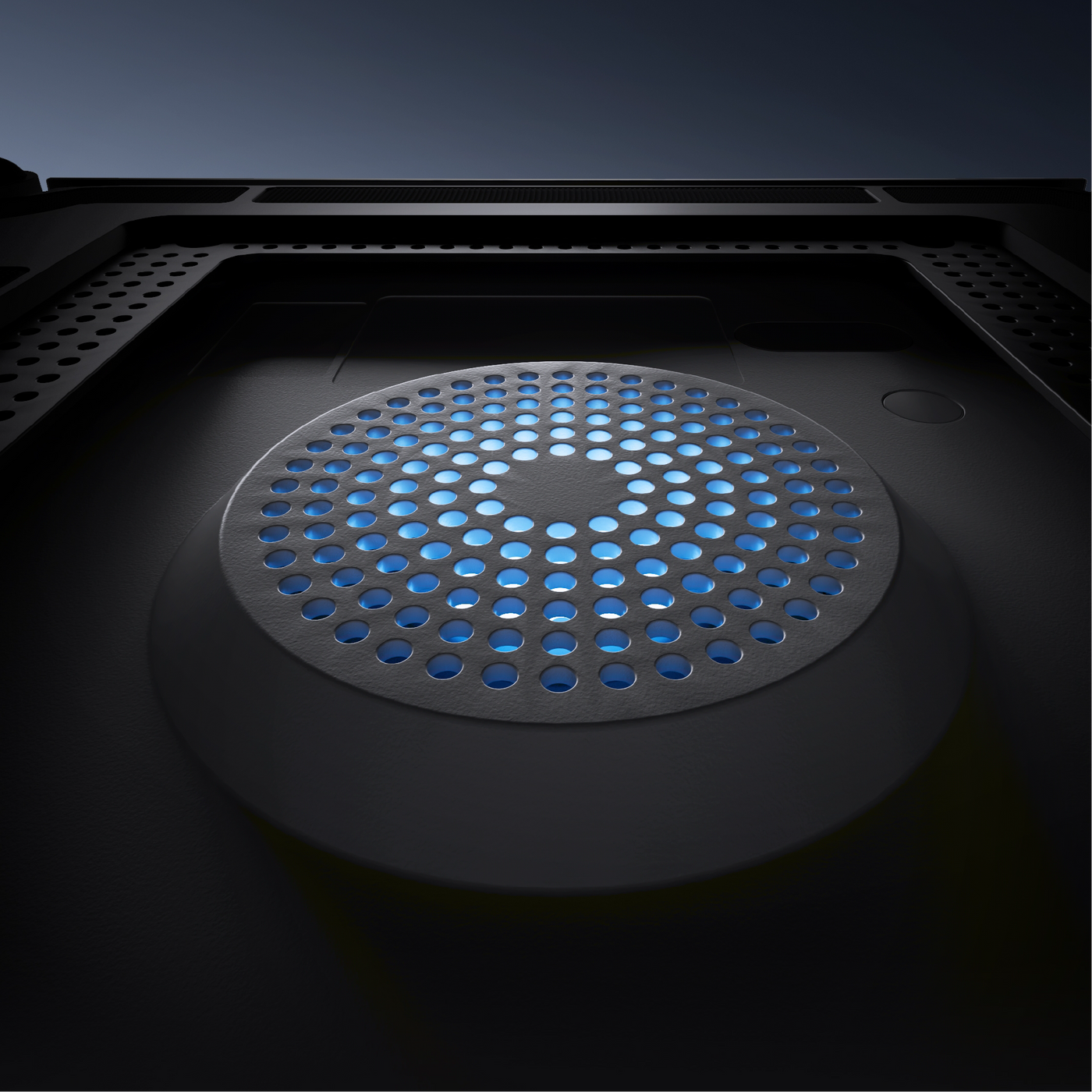

5500Pa
Super strong suction, omnidirectional adsorption*
30min
Low battery protection: after low battery reminder, the device can be adsorbed for 30 minutes and an alarm will sound*
Ultra-fast photoelectric coupling sensor
Millisecond response and intelligent risk perception
Optical coupler sensor reacts extremely quickly in 0.02s to detect the edge; the micro switch of the collision plate detects with high sensitivity and adjusts the walking route in real time
WINBOT W2 OMNI

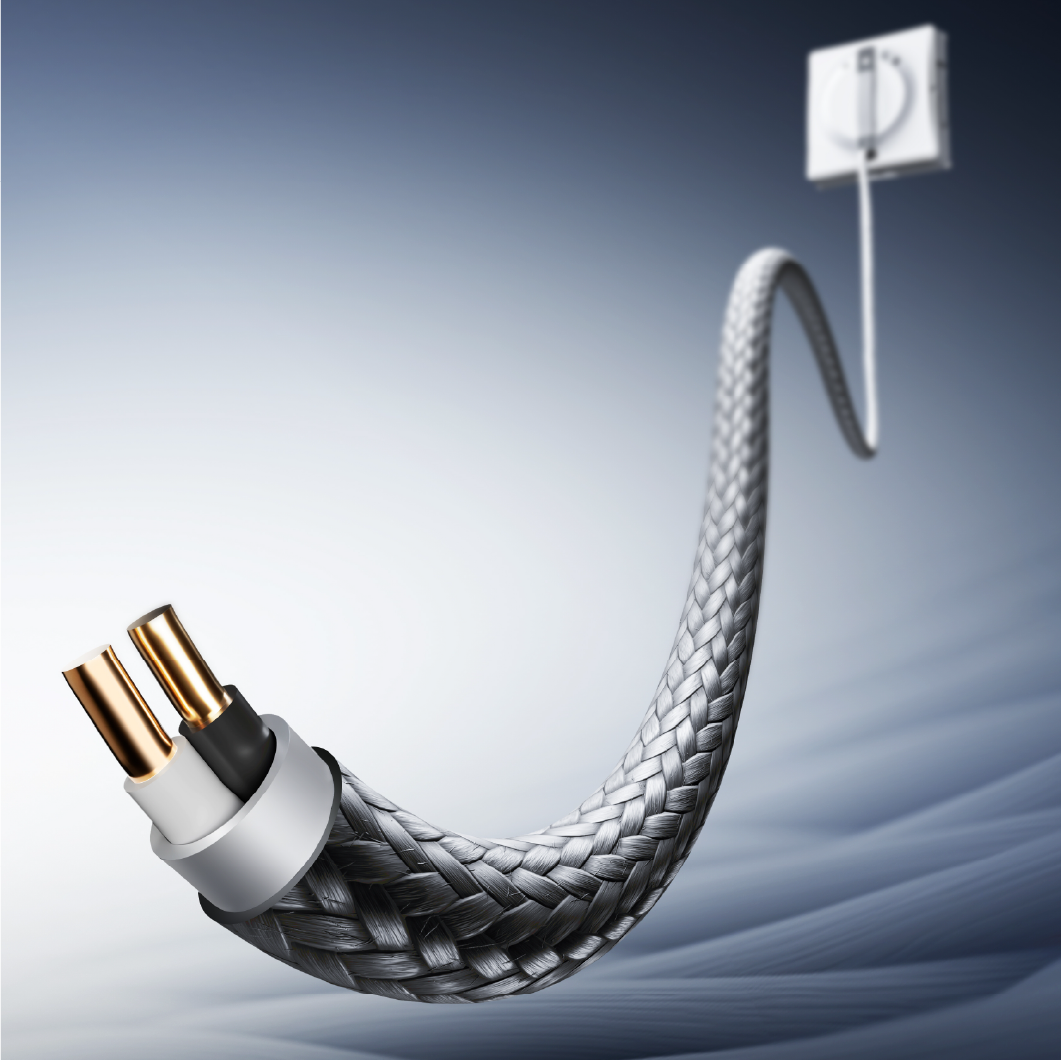

High tensile strength cables ensure safety
Made of three-layer composite material, it has stronger tensile strength, is more durable, and can bear a load of up to 100kg, making it safer to use (20kg higher than W1 PRO)*
WINBOT W2 OMNI
More than just windows, multiple facades and multiple scenes cleaning

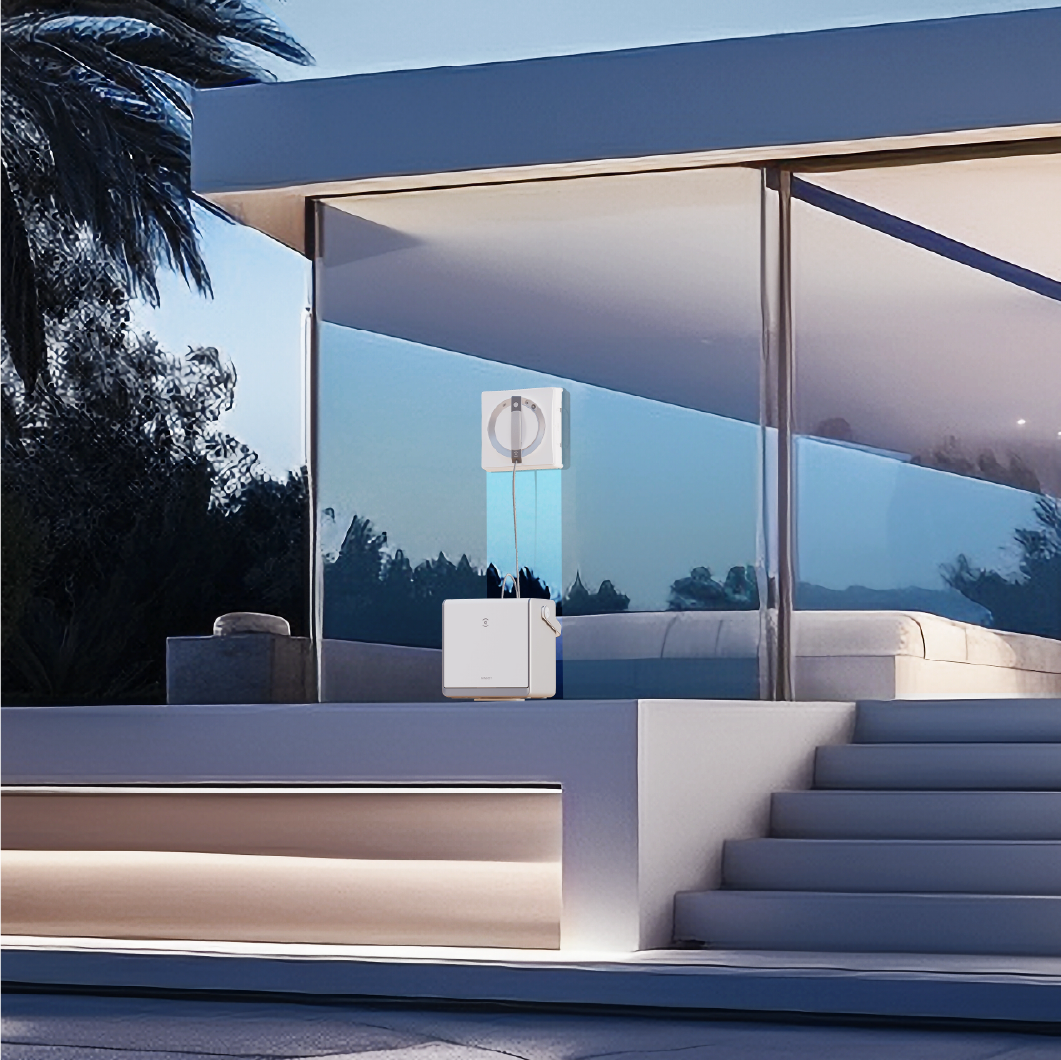

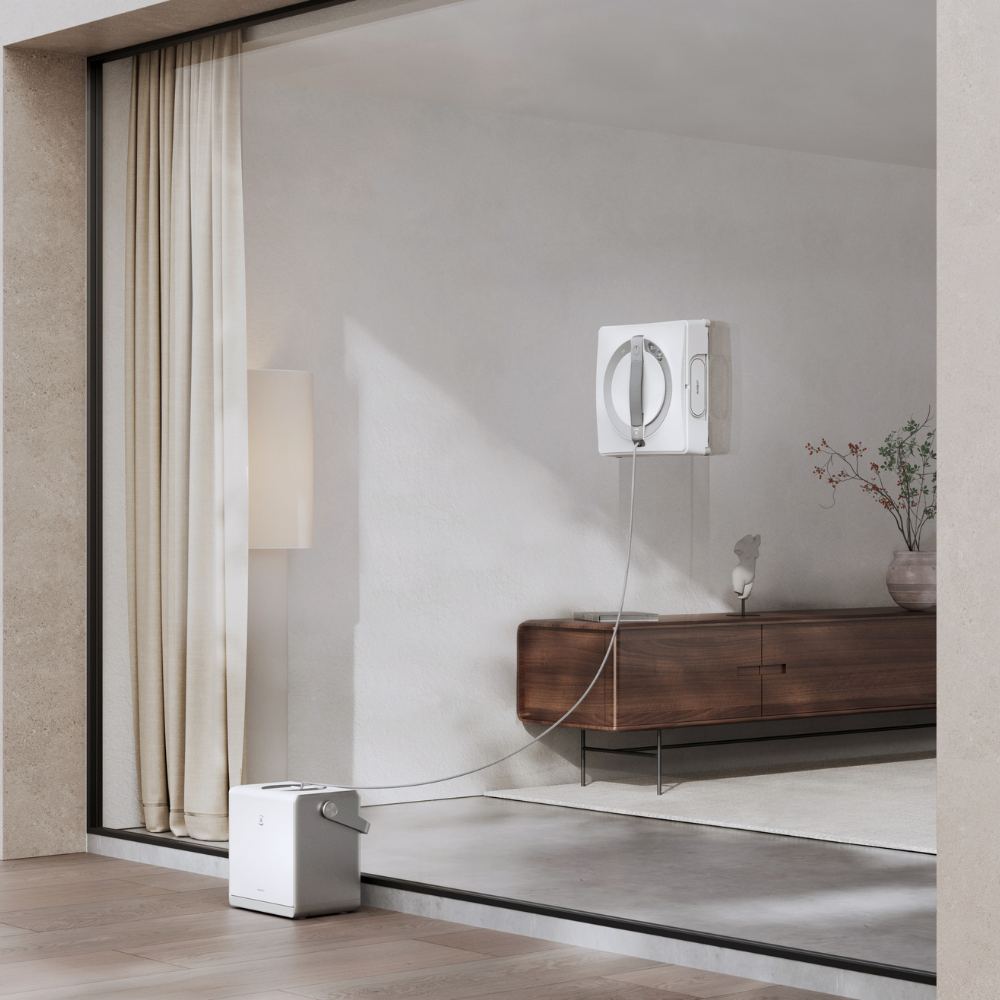

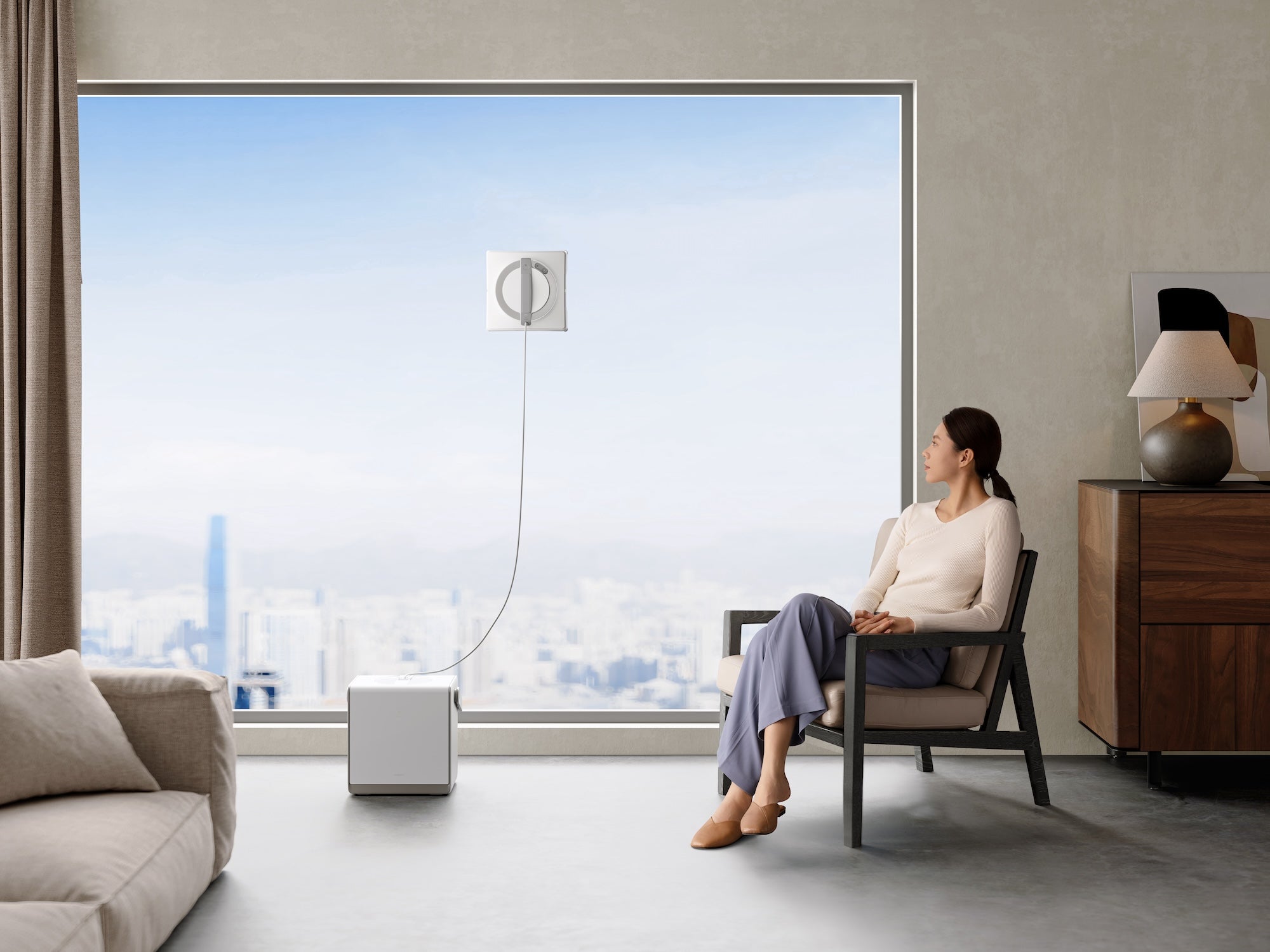

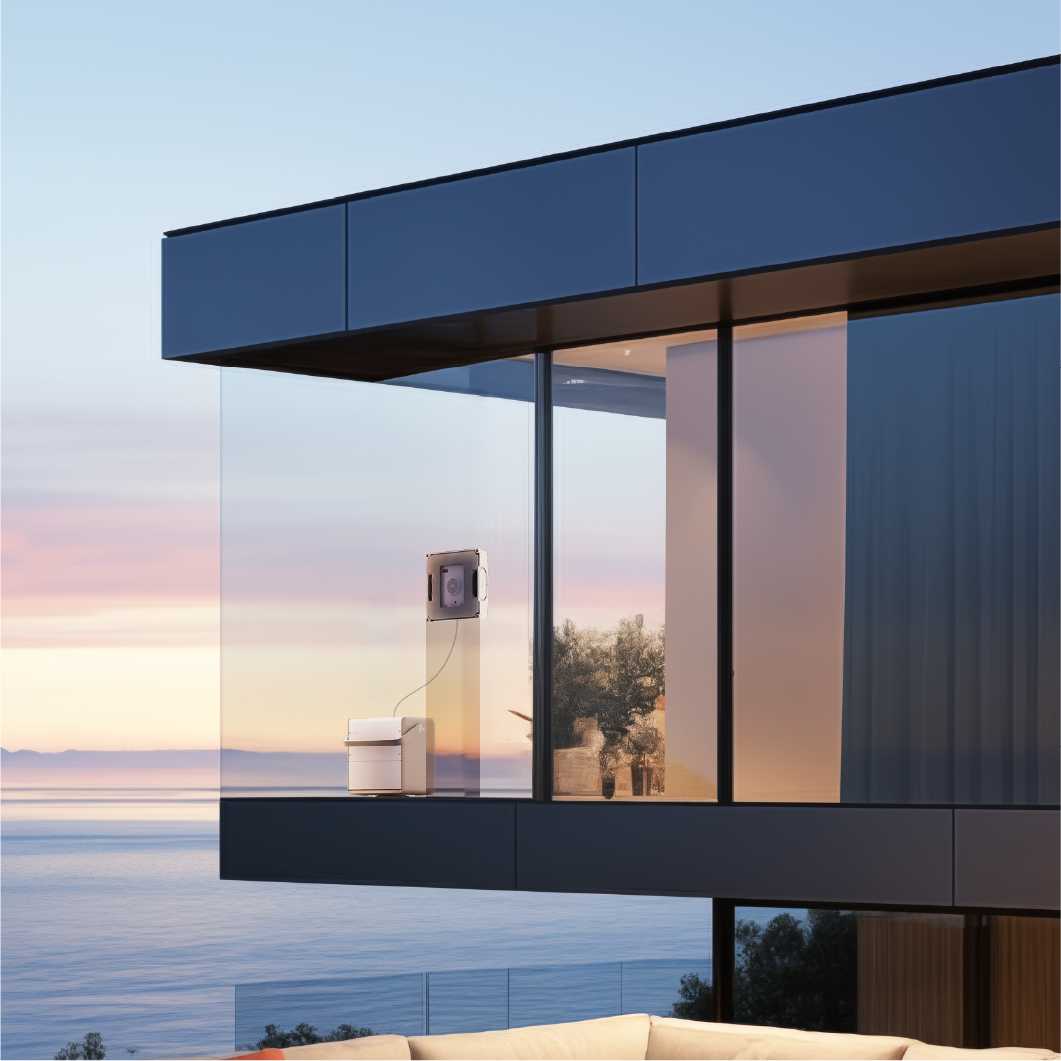

Large floor-to-ceiling windows as a tribute to luxury
5.5m 2-in-1 composite wire assist, 4m wide windows can also be easily handled*
Rational and simple small lattice window

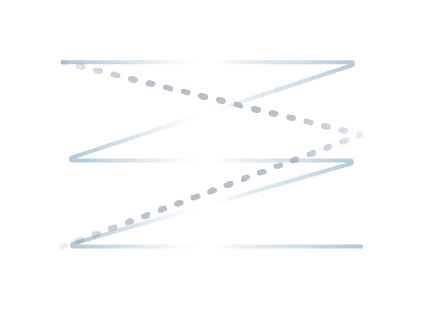

Intelligent edge detection, planning of bow-shaped paths, quick wiping of small pieces of glass

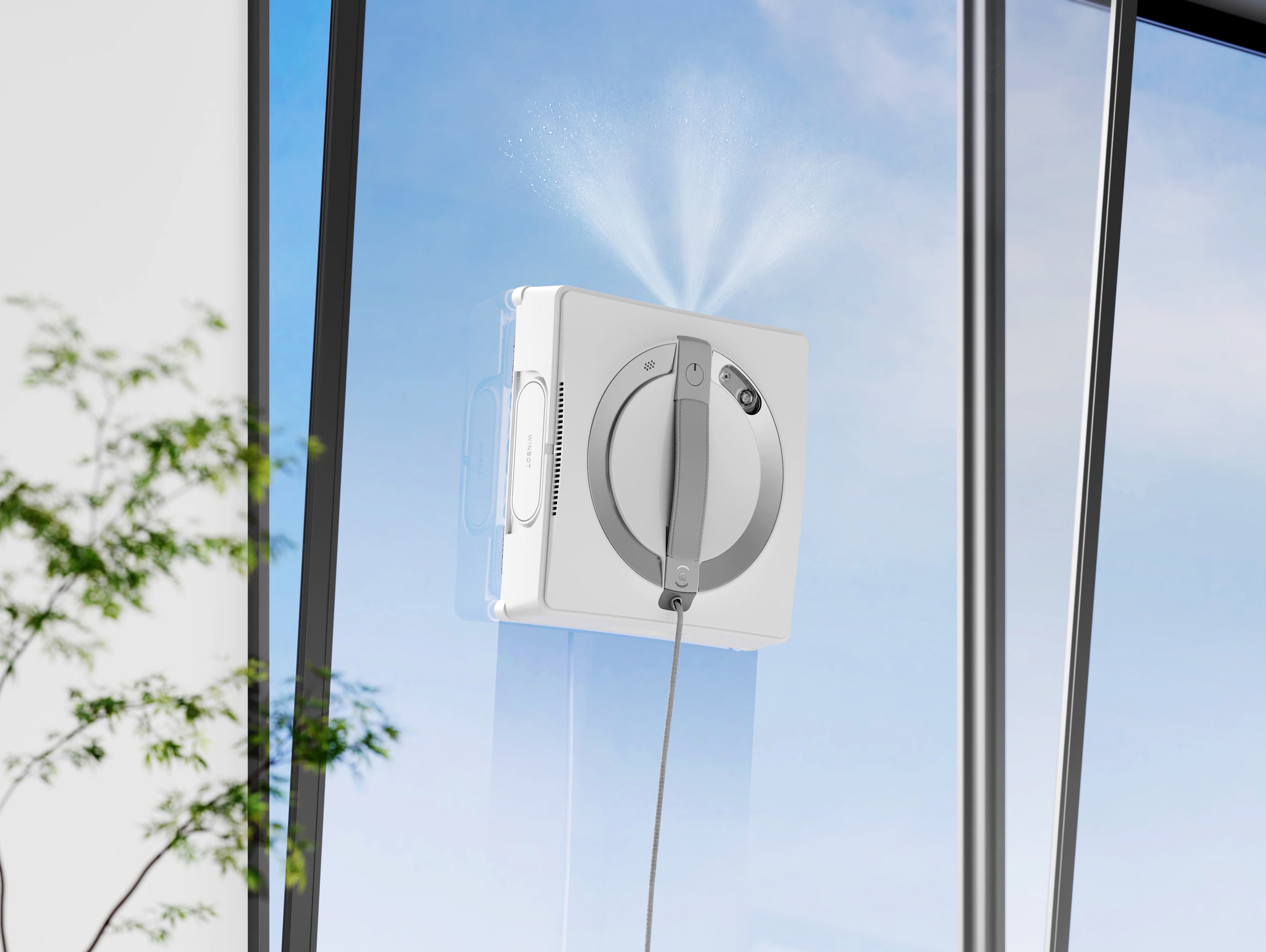

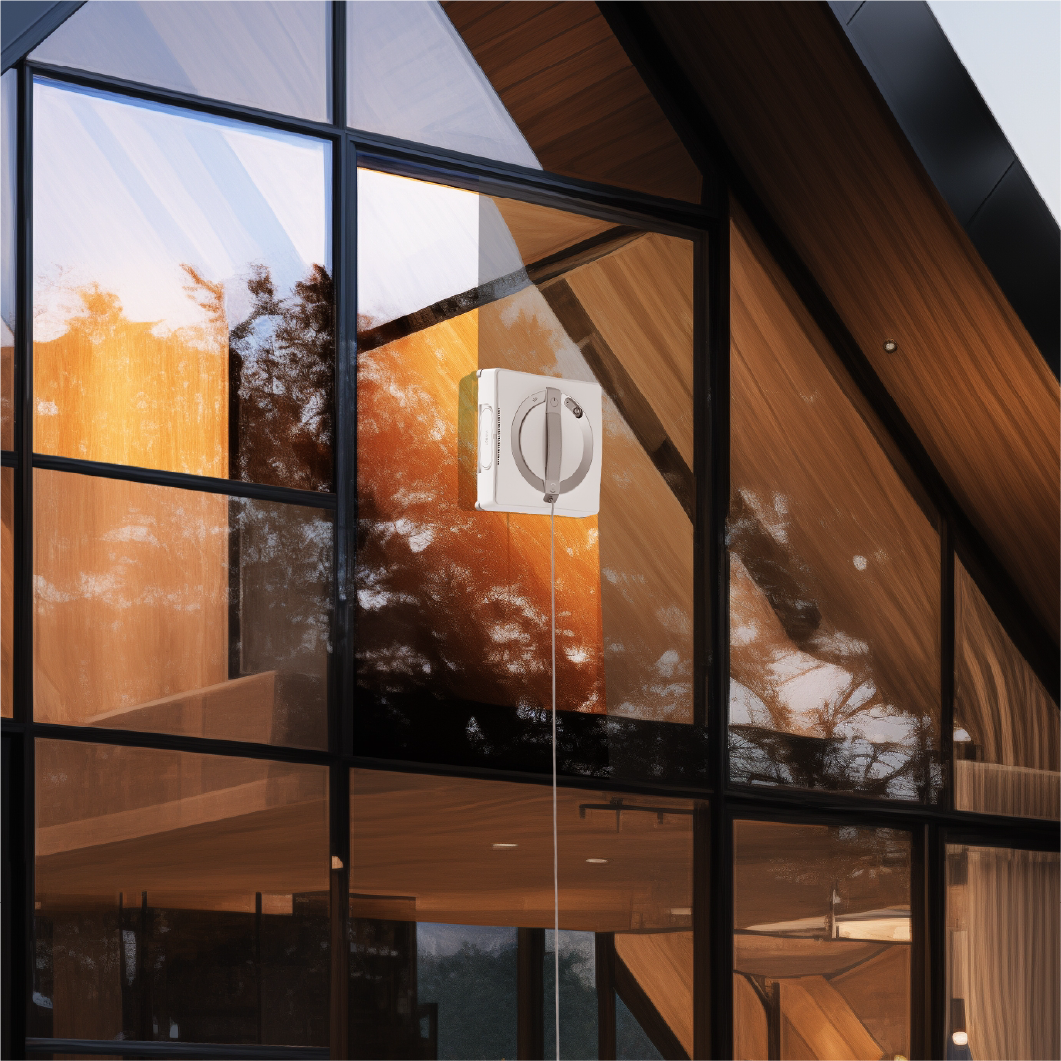

The poetic tilted windows
The accelerometer intelligently identifies the direction of acceleration and automatically compensates for gravity, so you can walk more confidently without slipping.
Frameless glass that leaps out of the edge
Equipped with high-precision optical coupling sensor, intelligent frame detection, anti-glare and anti-reflection
Unified facade rhythm

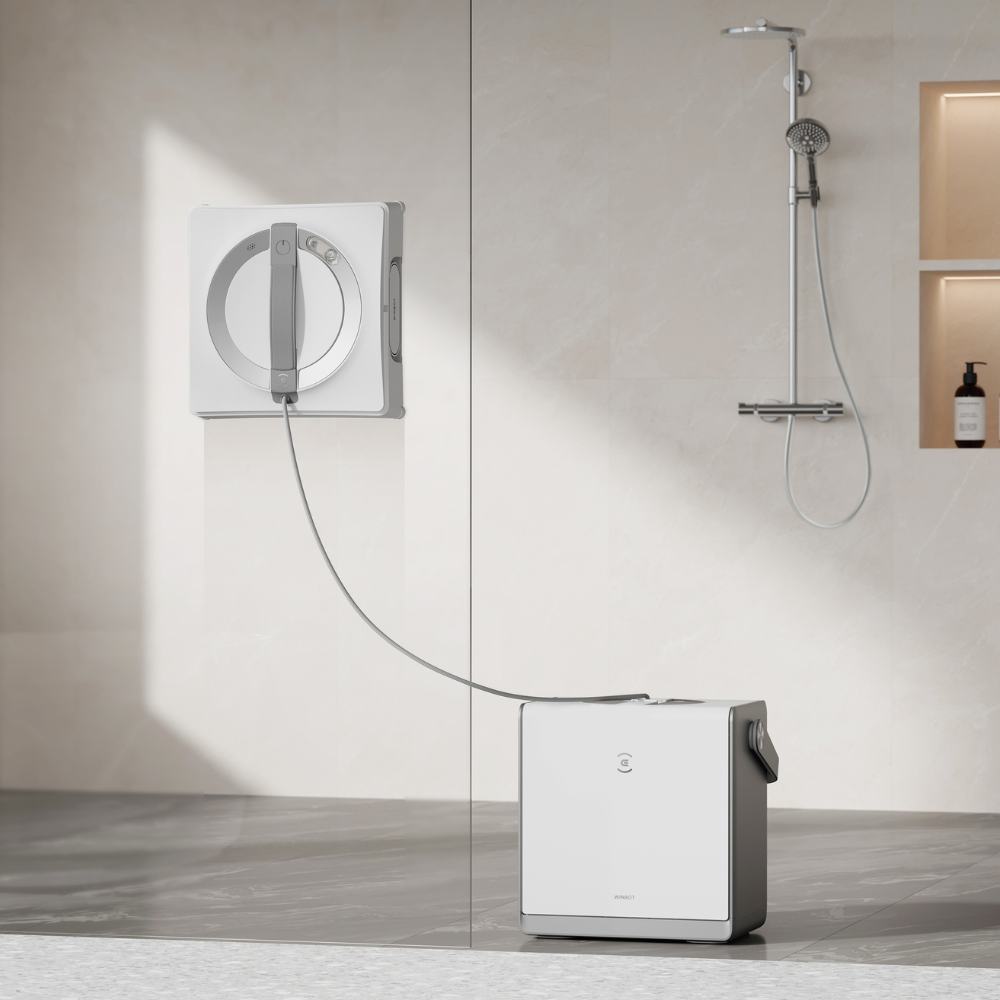

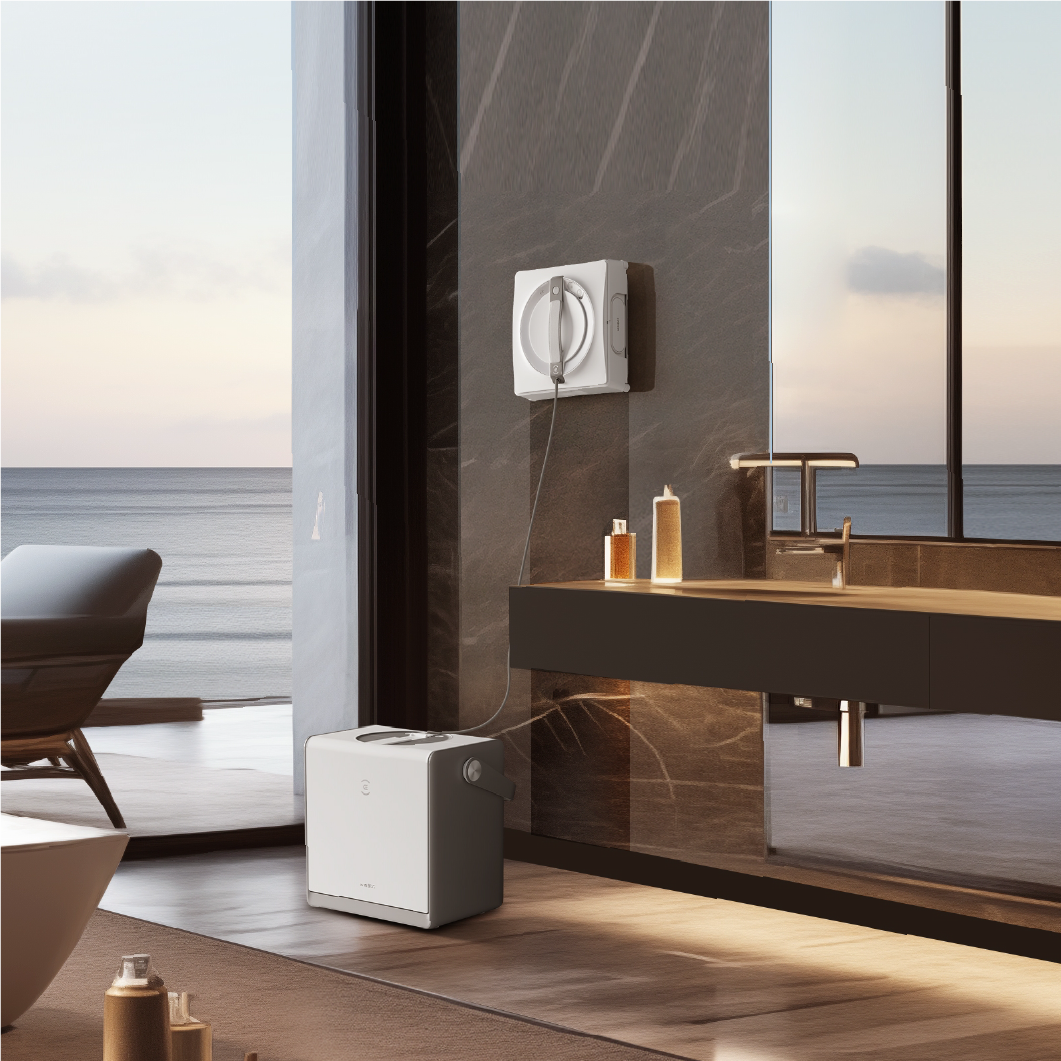

Shower glass, glass cabinet doors, marble surfaces, and a variety of smooth and flat surfaces can also be wiped**The pictures and videos on this page are only for functional illustration. The products and accessories may be upgraded or updated, so the appearance may be slightly different. Please refer to the actual product for details.
1. "Ecovacs First" means the first time that Ecovacs launched a mobile base station on a Windows product, with the statistical period ending on December 1, 2023;
2. The data comes from the Ecovacs laboratory. The base station has a built-in 4500mAh battery. After being fully charged, it can be used for up to 110 minutes in the quick cleaning mode and can clean 55 square meters of windows (front and back sides totaling 65 square meters). The specific details are subject to actual household use;
3. The data comes from the Ecovacs laboratory. The built-in composite cable of the Windows Treasure W2 OMNI base station is as long as 5.5 meters and can withstand a maximum pulling force of 100kg. In case of an accidental fall, it can be automatically locked after being pulled out 1m. The specific details are subject to actual home use;
4. The data comes from the Ecovacs laboratory. The Ecovacs W2OMNI base weighs 5.2kg, the maximum suction capacity of the suction cup can reach 800N, and it has a built-in 1m safety rope;
5. "Ecovacs Exclusive" means that the Ecovacs W2 OMNI is the first and only product in the field of window cleaning robots in mainland China that can automatically recycle cables at the touch of a button, without the need for manual cable pulling. The statistics are valid until December 1, 2023.
6. Data from Ecovacs Labs shows that the water spray coverage of the Window Treasure W2 OMNI has increased to 90%, an increase of 80% compared to the 50% water spray coverage of the Window Treasure W1 PRO.
7. The data comes from the Ecovacs laboratory. The water pressure of the Window Treasure W2 OMNI is 43.7KPA, and the water pressure of the Window Treasure W1 PRO is 21.8KPA, which is 100% higher than that of the Window Treasure W1 PRO. The specific data is subject to actual household use.
8. Data from Ecovacs Lab: Windowbo W1 PRO sprays 30g/min, Windowbo W2 OMNI sprays 70g/min, and the water spray volume is increased by 133%;
9. Data from Ecovacs Laboratory. In fast cleaning mode, the straight-line speed of the W2 OMNI can reach 11m/s, which is 30% higher than the straight-line speed of the W1 PRO at 8m/s.
10. The Windowbot W2 OMNI can accurately identify obstacles larger than 4mm and avoid them, which is 100% more accurate than the Windowbot W1S PRO (larger than 8mm).
11. "Newly upgraded" means that compared to W1 PRO, W2 OMNI timing belt 2.0 is made of new upgraded materials, and its performance is further improved;
12. Ecovacs Window's synchronous belt self-cleaning brush design has obtained a Chinese utility model patent, patent number: 202123057761.5;
13. The data is from Ecovacs laboratory. Ecovacs W2 OMNI can automatically compensate for air pressure in as fast as 0.04s to prevent it from falling. The specific data is subject to actual home use.
14. The data is from Ecovacs laboratory. The maximum suction force of Ecovacs W2 OMNI fan can reach 5500 Pa. The specific data is subject to actual household use.
15. The data comes from the Ecovacs laboratory. The Ecovacs W2 OMNI has a built-in optocoupler sensor that can react as fast as 0.02s to prevent falling. The specific data is subject to actual home use.
16. The data comes from the Ecovacs laboratory. The operating volume of Ecovacs W2 OMNI is 63dB, which is 4dB lower than that of W1 PRO. The specific volume is subject to actual home use.
17. The data is from Ecovacs laboratory. The water pump flow rate of Ecovacs W2 OMNI is 70g/min. The specific data shall be subject to actual household use.
18. "Multi-faceted" refers to a smooth, flat, obstacle-free vertical face. Please read the instructions for specific applicable requirements and follow the instructions for correct use;
19. The data is from the Ecovacs laboratory. When the base station runs out of power, the Window Treasure will maintain adsorption for more than 30 minutes and sound an alarm. The specific data is subject to actual household use.
20. “Ecovacs’ First” means the three-nozzle wide-angle water spray technology first launched by Ecovacs on its Windows Treasure products, with the statistical period ending December 1, 2023;
21. The data comes from the Ecovacs laboratory. In the fine mode of the W2 PRO, the walking distance is reduced to 4.8cm. The specific data is subject to actual home use.
*Except for the above notes, all information on this page is obtained through environmental testing in Ecovacs laboratories. The specific information is subject to actual use.
All comparative terms on the page are compared with previous generations of Ecovacs products, and do not involve other brands;
Please be aware that the realization of Ecovacs products' intelligent functions such as remote activation, voice interaction, 2D/3D map display and control settings, personalized cleaning mode (depending on the specific products) requires users to download and use the ECOVACS HOME APP that is constantly updated by Ecovacs. You need to agree to our Privacy Policy and User Agreement before we can process some of your basic and necessary information and enable you to use the ECOVACS HOME APP to control some of the functions of this product.
