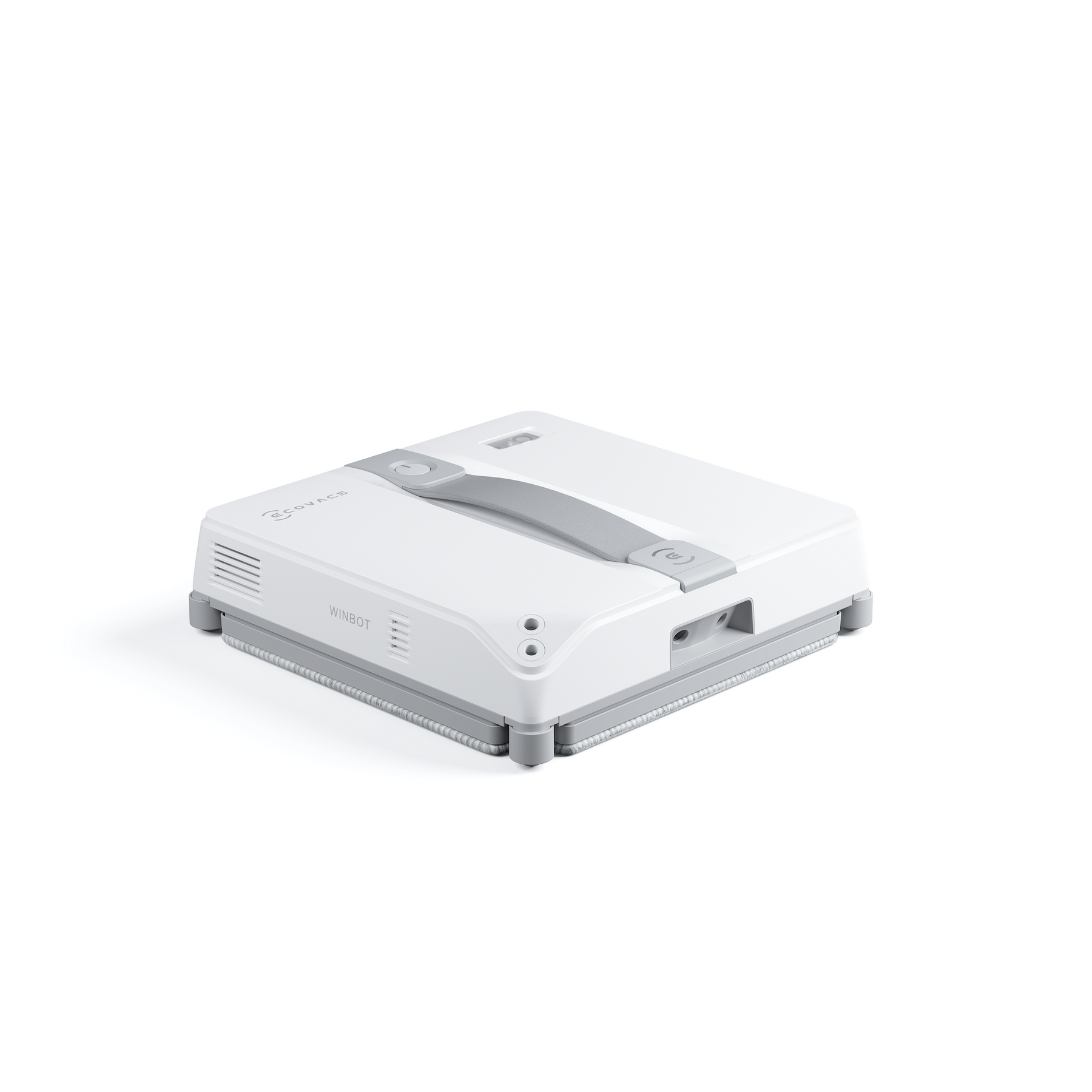

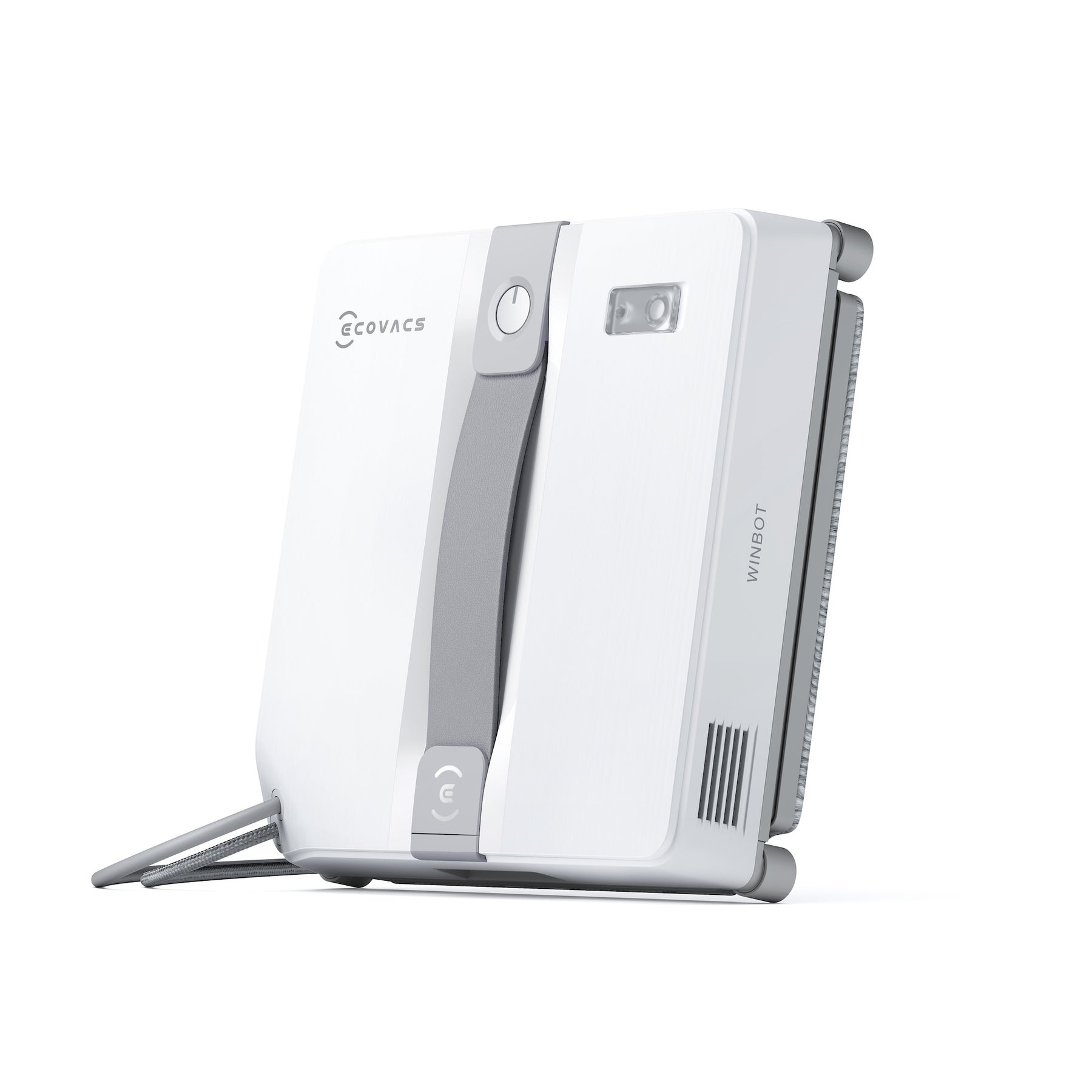

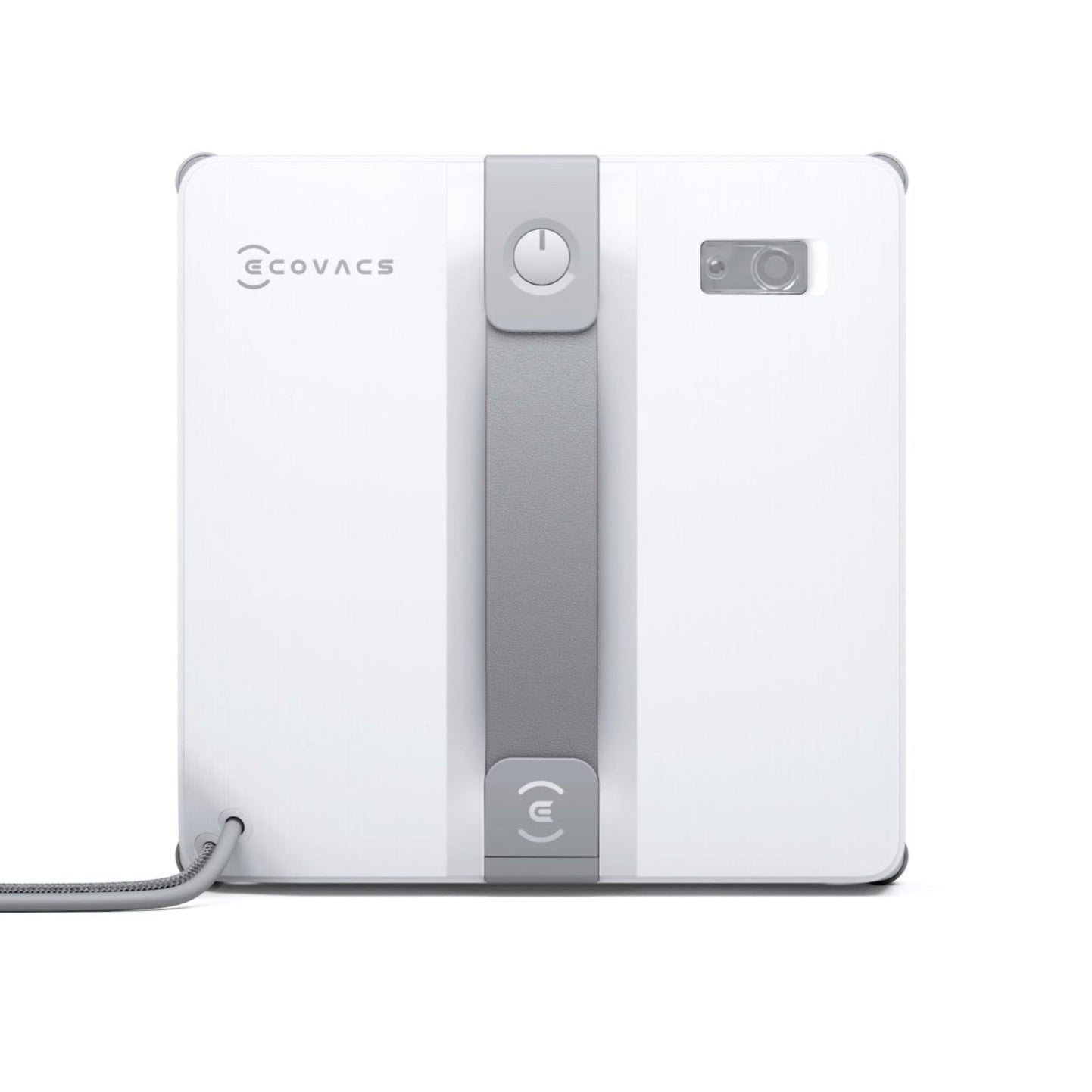

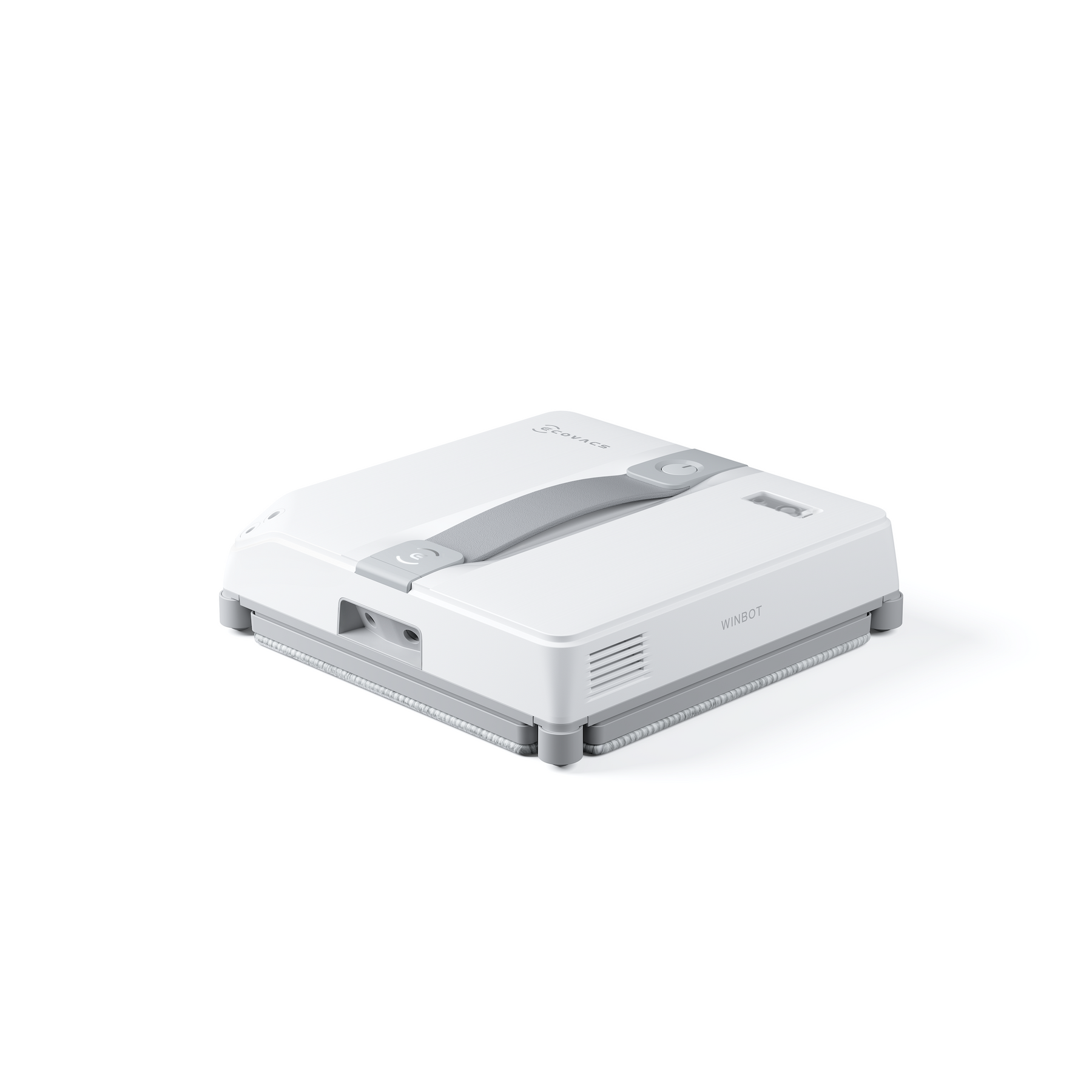

WINBOT MINI
📌 Limited stock now available for sale
DEEBOT series products enjoy 1-year door-to-door warranty service*, X2, X5, X8 series products enjoy an additional year, starting from the invoice date; Y series and WINBOT series products enjoy 1-year bring-your-own warranty service, starting from the invoice date.
If there are any problems after receiving the product, customers are required to bring the invoice and the product to our repair center to enjoy this maintenance service. Once the online payment process is completed, no returns, refunds, exchanges or order cancellations are accepted for any products. If you click the "Checkout" button to continue, it will be deemed that you agree to the above content.
數量:
Product Specifications
| Minimum window size | 22x25 (cm) |
| Applicable windows | All flat glass |
| Cleaning Mode | Fast Cleaning Mode Thorough Cleaning Mode Spot Cleaning Mode |
| Automatic water spray (Y/N) | Yes |
| APP controlled manual water spray | Yes |
| Water tank capacity (ml) | 60 |
| Number of water outlets | 4 |
| Voice Report | Yes |
| Power cord length (m) | 4.7 |
| Maximum vacuum degree (fan) (Pa) | 7500Pa |
| Cleaning cloth size (mm2) | 215*215 |
| Charging station dimensions (mm, L*W*H) | 312*215*327 |
| Host weight (kg) | 1.3±0.1 |
| Motor Type | Brushless motor |
| Noise level (dB) | 72 ± 2 |
| Adapter Input Parameters | 100-240V~50-60Hz 2.5A |
What's in the box
| Host | 1 |
| Safety rope | 1 |
| Safety lock | 1 |
| Cleaning cloth (set) | 2 |
| Cleaner (230 ml) | 1 |
| Measuring cup | 1 |
| manual | 1 |
manual
WINBOT MINI_instruction.pdf
Quick Start Guide
QuickStartGuide-WINBOT-MINI.pdf
Features and specifications subject to change without notice. Product testing is performed in a standard laboratory environment. Actual performance may vary. *Determined based on actual area and environment
Buy together
ECOVACS window cleaning robot
Leading industry standards suitable for use in Hong Kong environment
Safety is the core foundation of using window cleaning robots!
Why is safety the most important?
At the very least, the machine may fall and property may be damaged.
In serious cases, falling from a height may cause personal safety hazards
ECOVACS WINBOT MINI undergoes 63 tests before leaving the factory*
Quality inspection and 20* safety tests
WINBOT MINI
"WINBOT" can help you with your window cleaning problems
Climb up and clean the windows by yourself and your sister
Safety is not guaranteed
Do it yourself, waste of time
The exterior windows are not clean
Small space can not reach
Wiping it is the same as not wiping it
Dirt accumulated on windows due to long-term non-wiping
The beauty is lost and dirty
WINBOT MINI

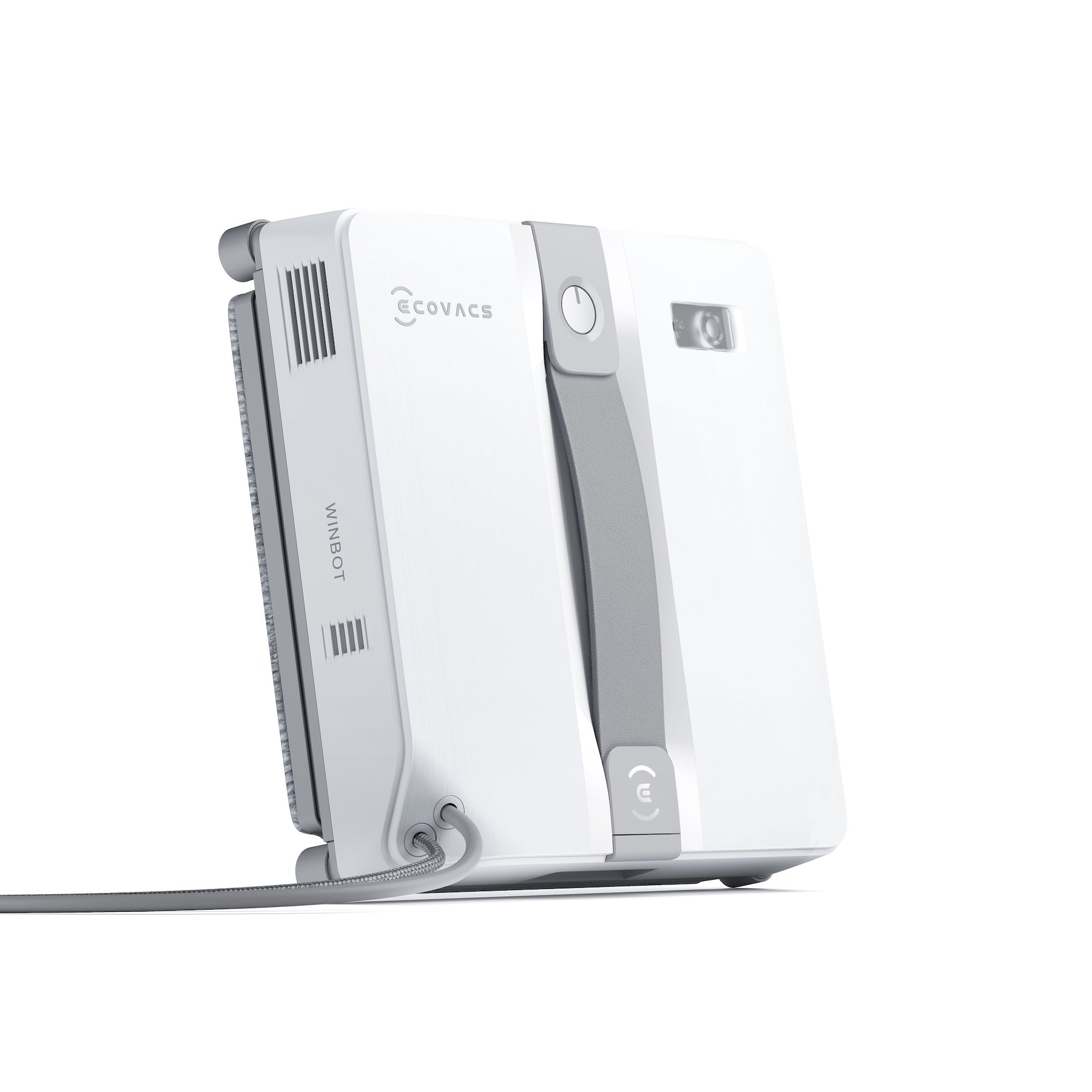

Ultra-thin body first choice
More details to ensure peace of mind
Three cleaning modes to choose from according to the degree of glass dirtiness
Ultra-thin body cleans narrow spaces

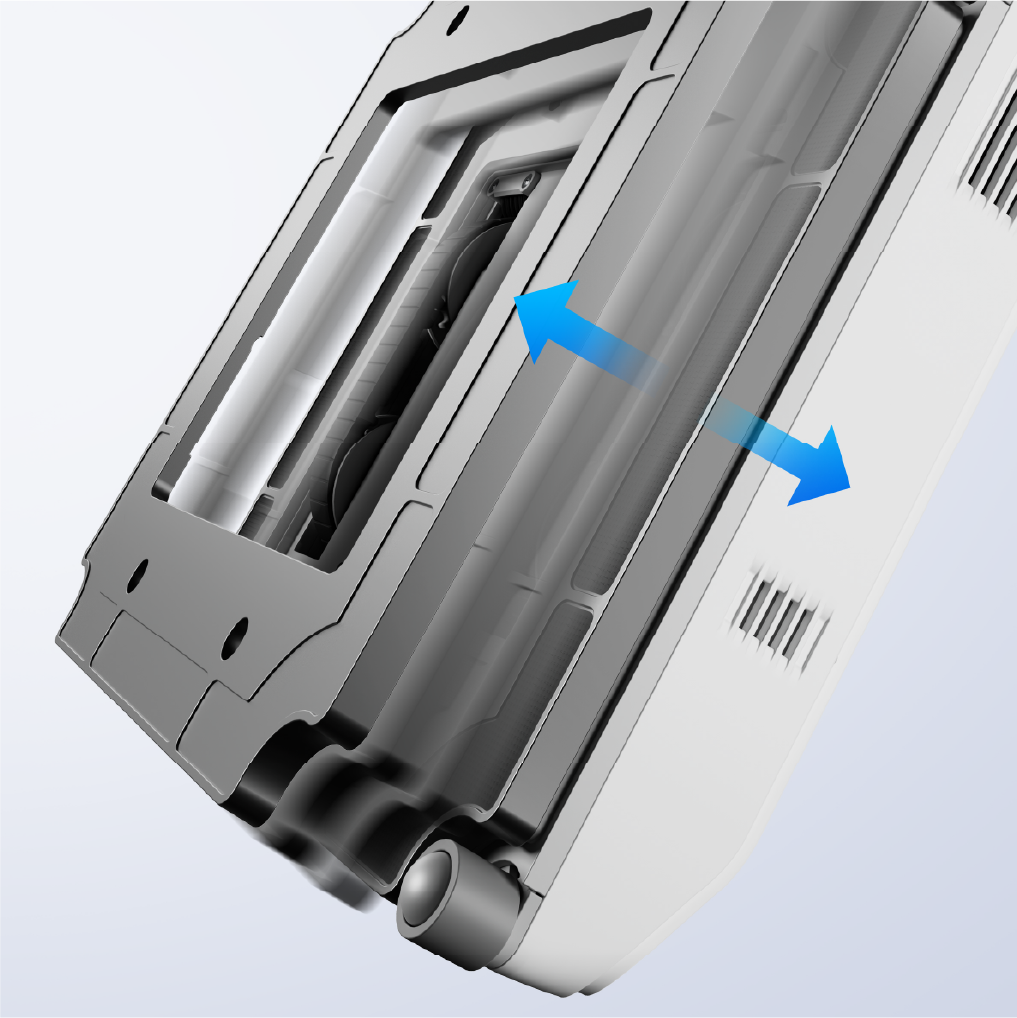

The new dual air duct design makes the machine slim and compact, allowing for smooth operation in special and narrow scenes*
Powerful wet wipe to wipe windows closer to the edge for a cleaner look
Ultrasonic atomization spray, fine wet wiping, precise cleaning
High-level worry-free safety first

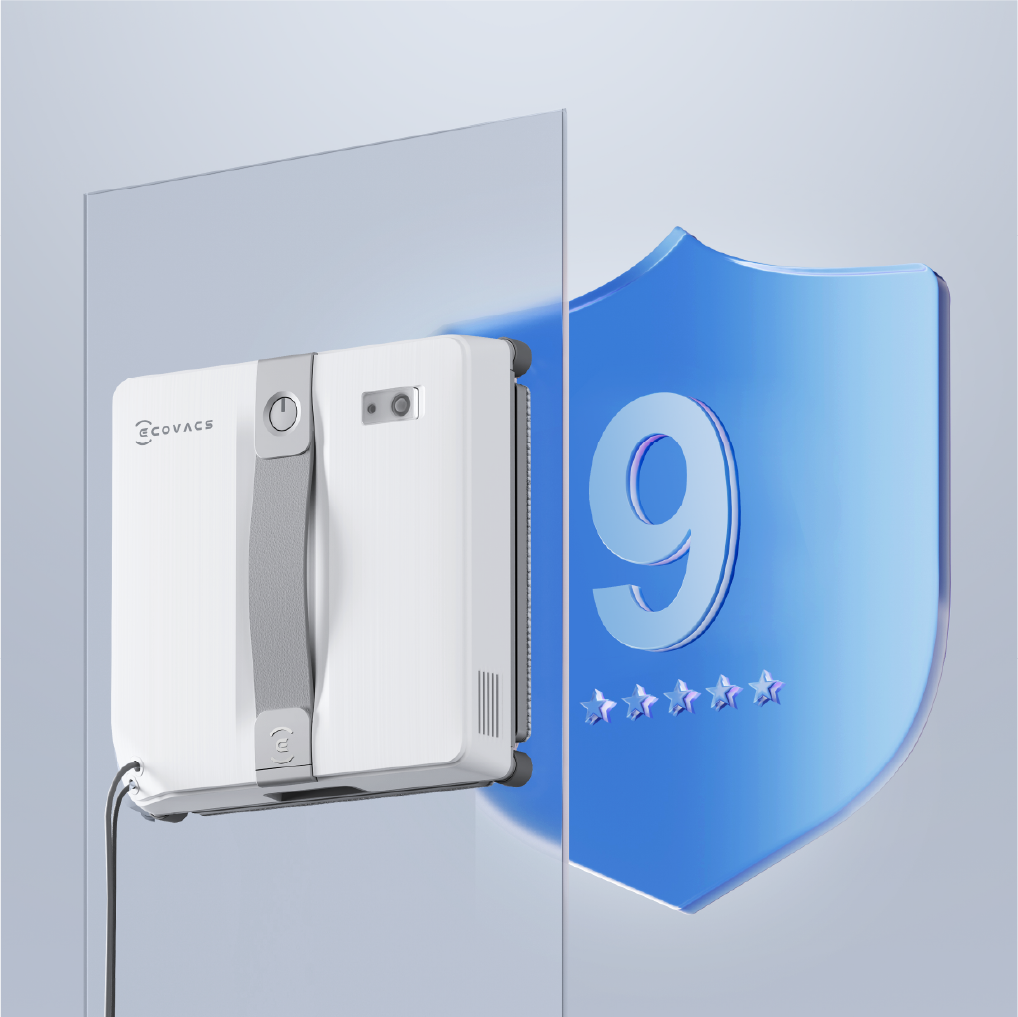

Nine-fold safety guarantee, window cleaning is safer
Smart window cleaning at your fingertips
Intelligent obstacle avoidance and intelligent path planningWINBOT MINI
Ultra-thin body first choice

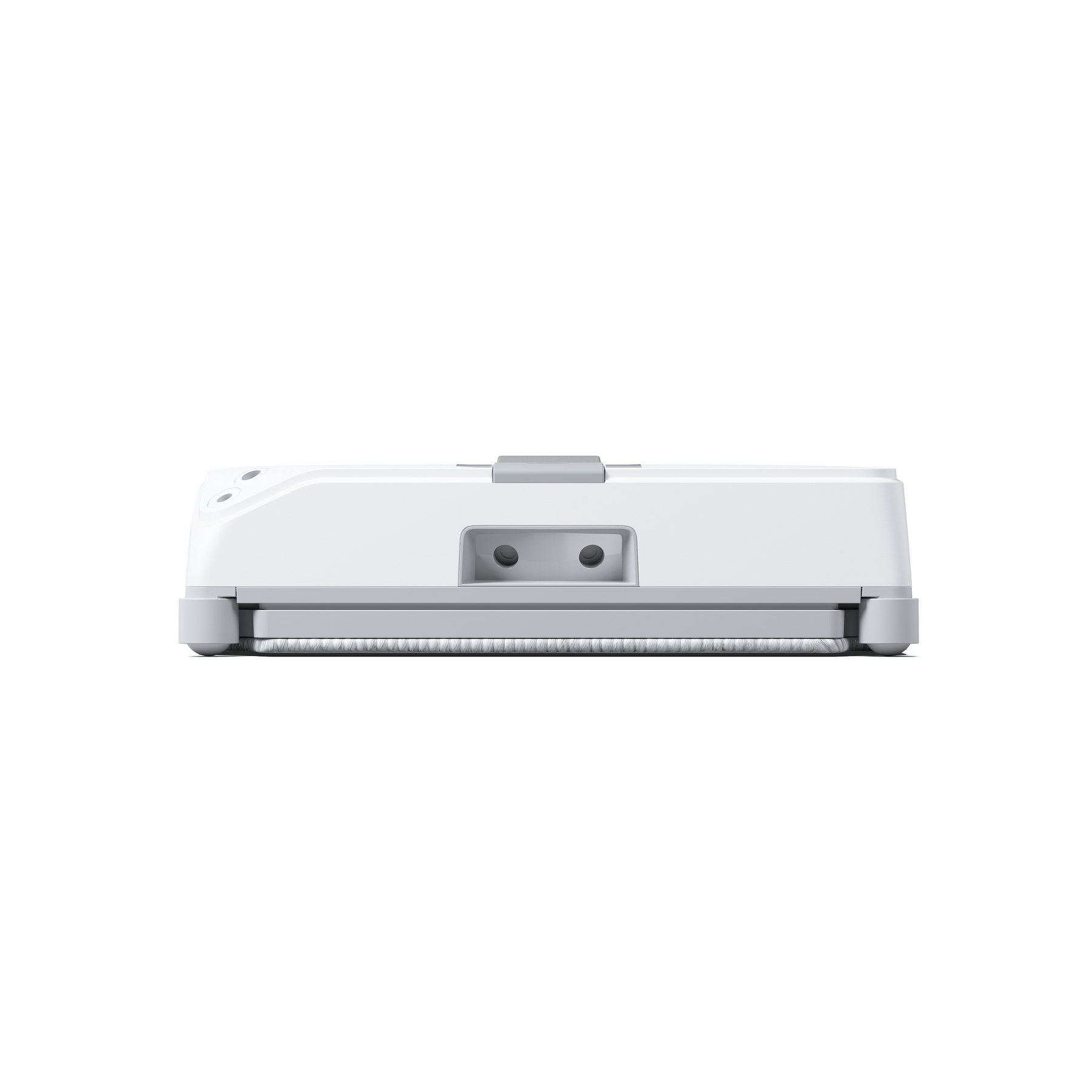

New ultra-thin body reaches a new level of thinness
New miniaturized fan

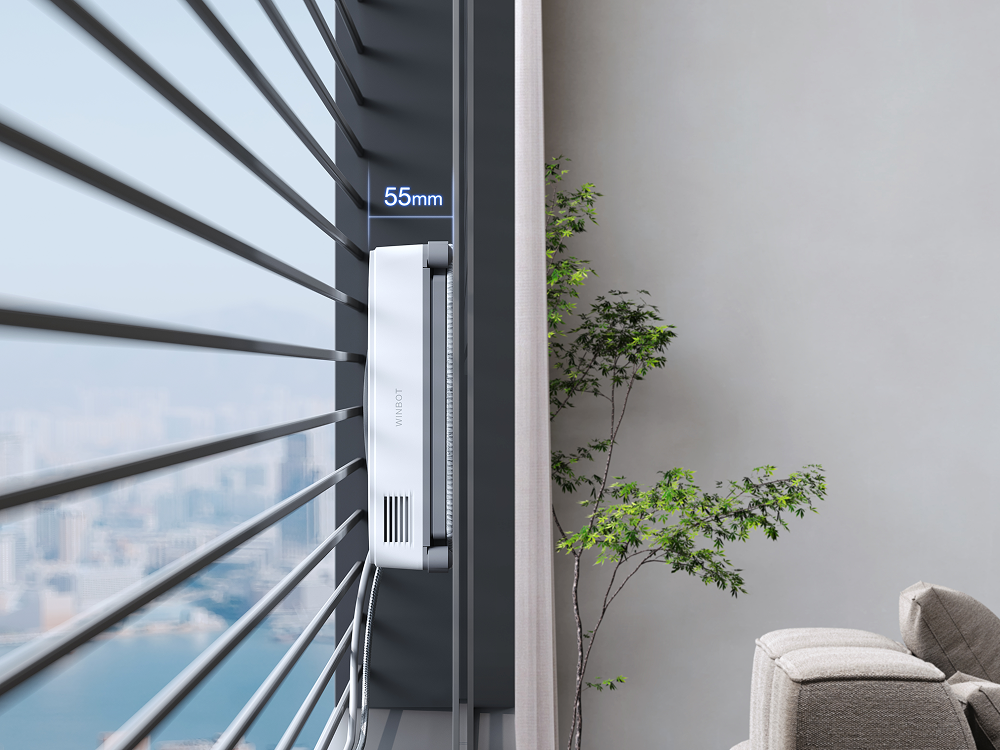

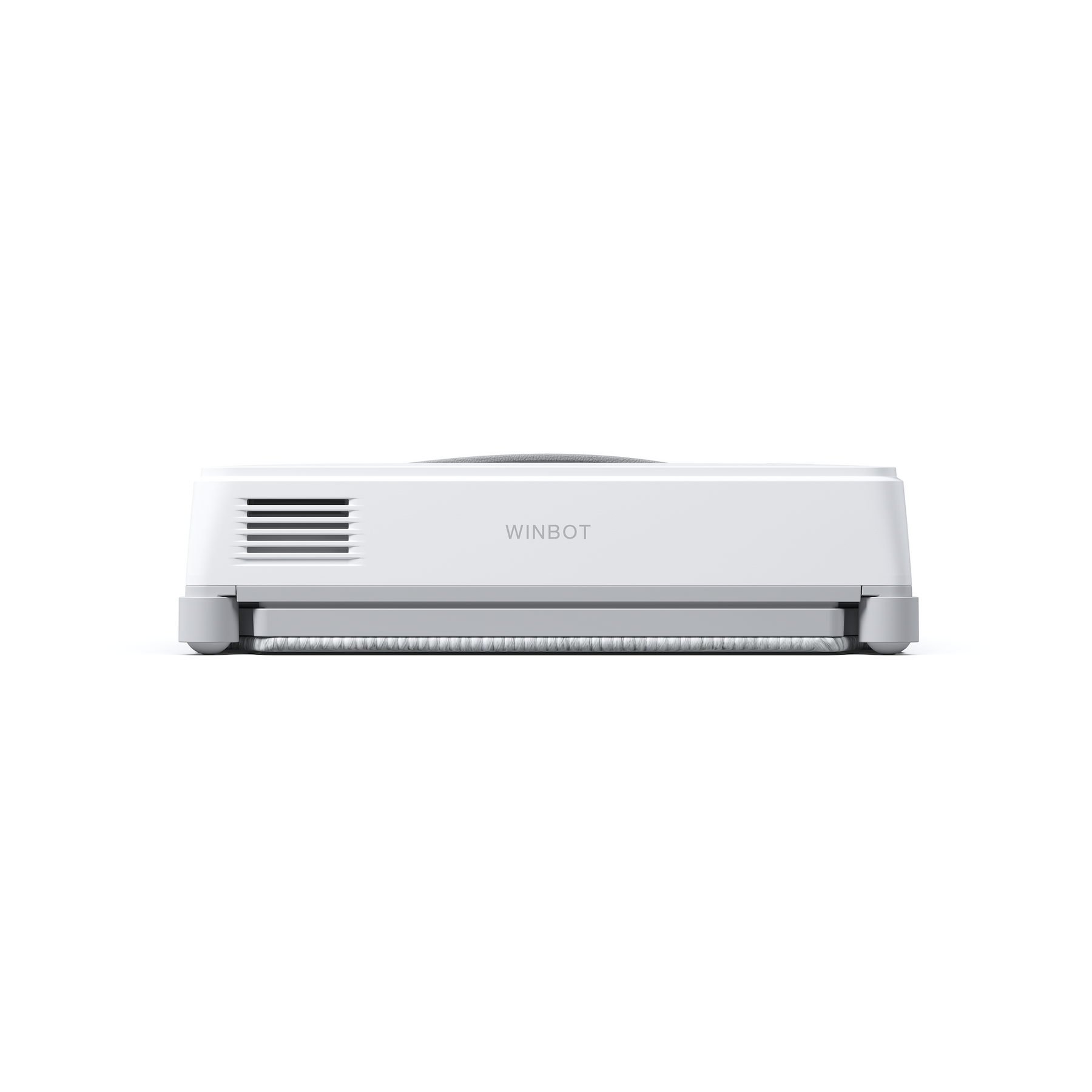

55mm ultra-thin body with free space for easy storage
30% thinner and 37% smaller in size

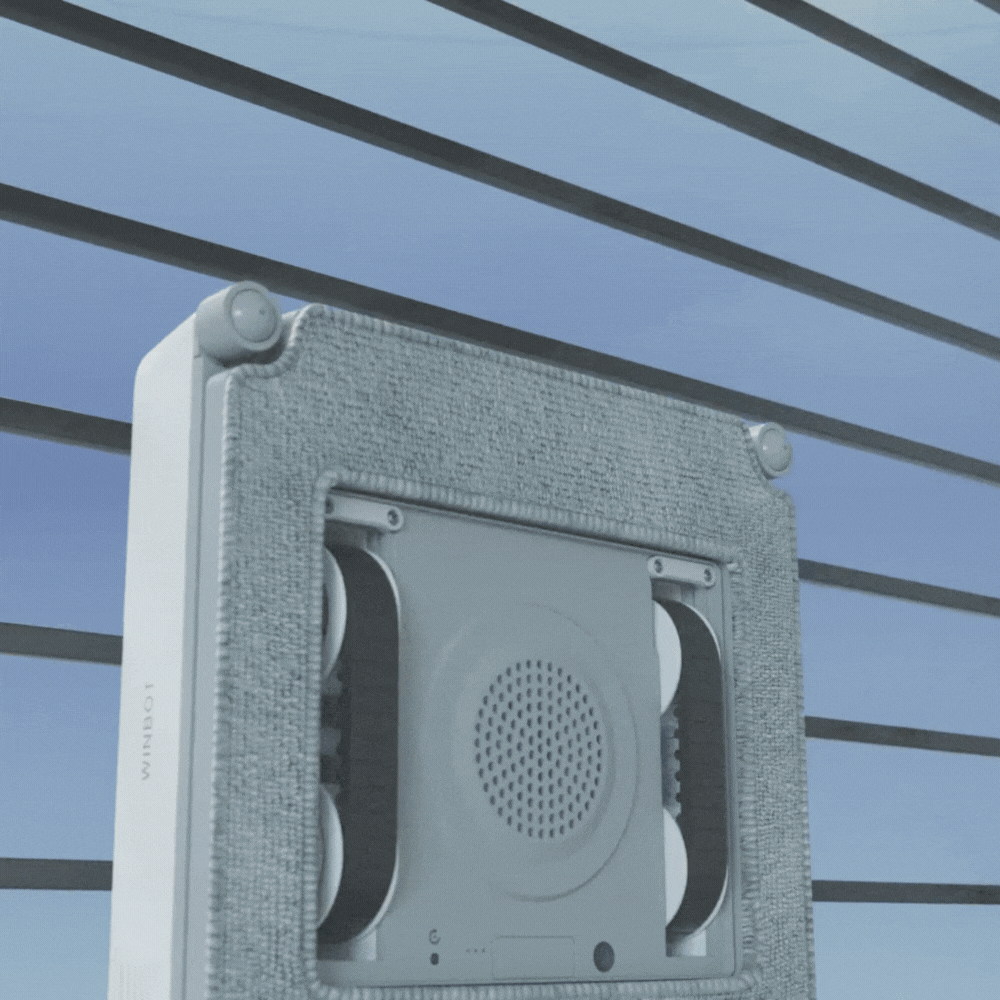

Mini body, no obstacles
Small body, can pass through narrow areas and gaps* with ease

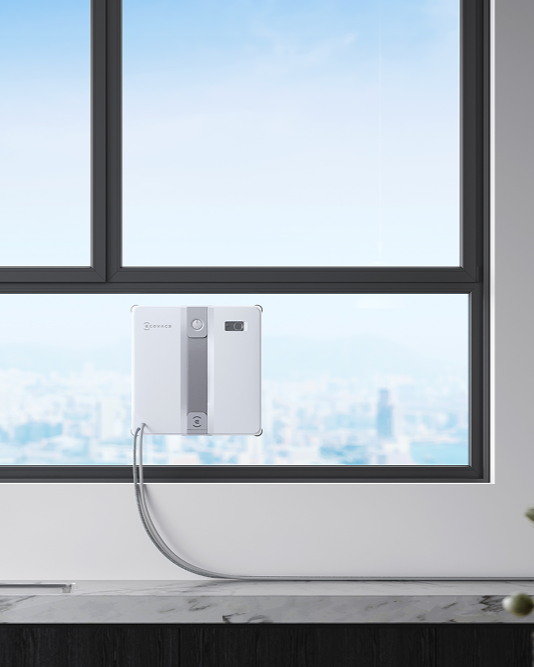

Small window

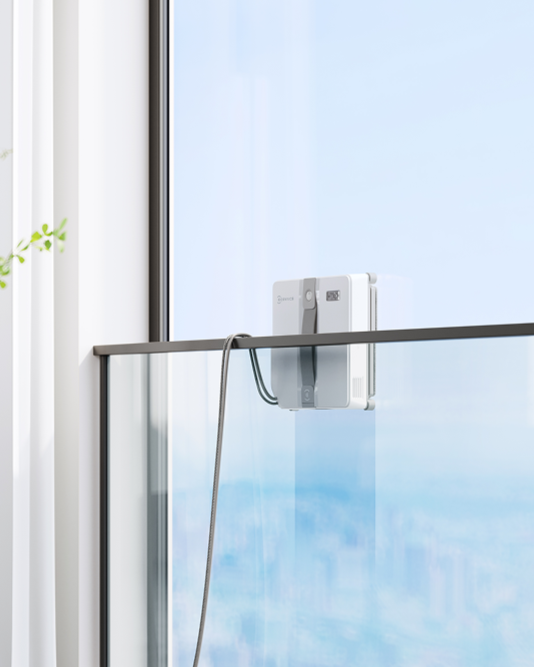

Terrace/Guardrail*
Small, light, agile and elegant
Easy to carry and share with family members
WINBOT MINI
Ultimate welt* One step cleaner
Close to the edge and clean
The rag fits the edge of WINBOT to cover more area, remove stains from corners, and clean more thoroughly
2mm extreme edge 99% cleaning coverage*
2mm extreme edge 99% cleaning coverage*

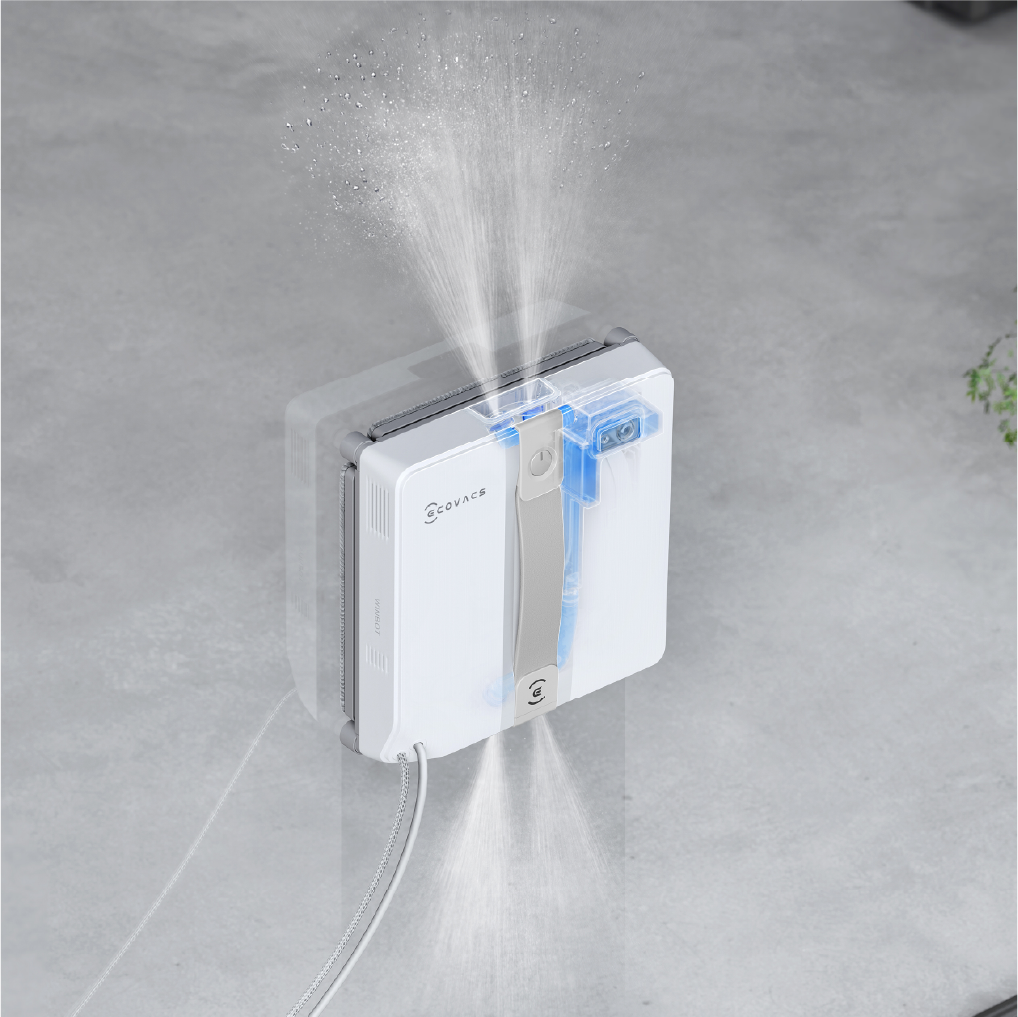

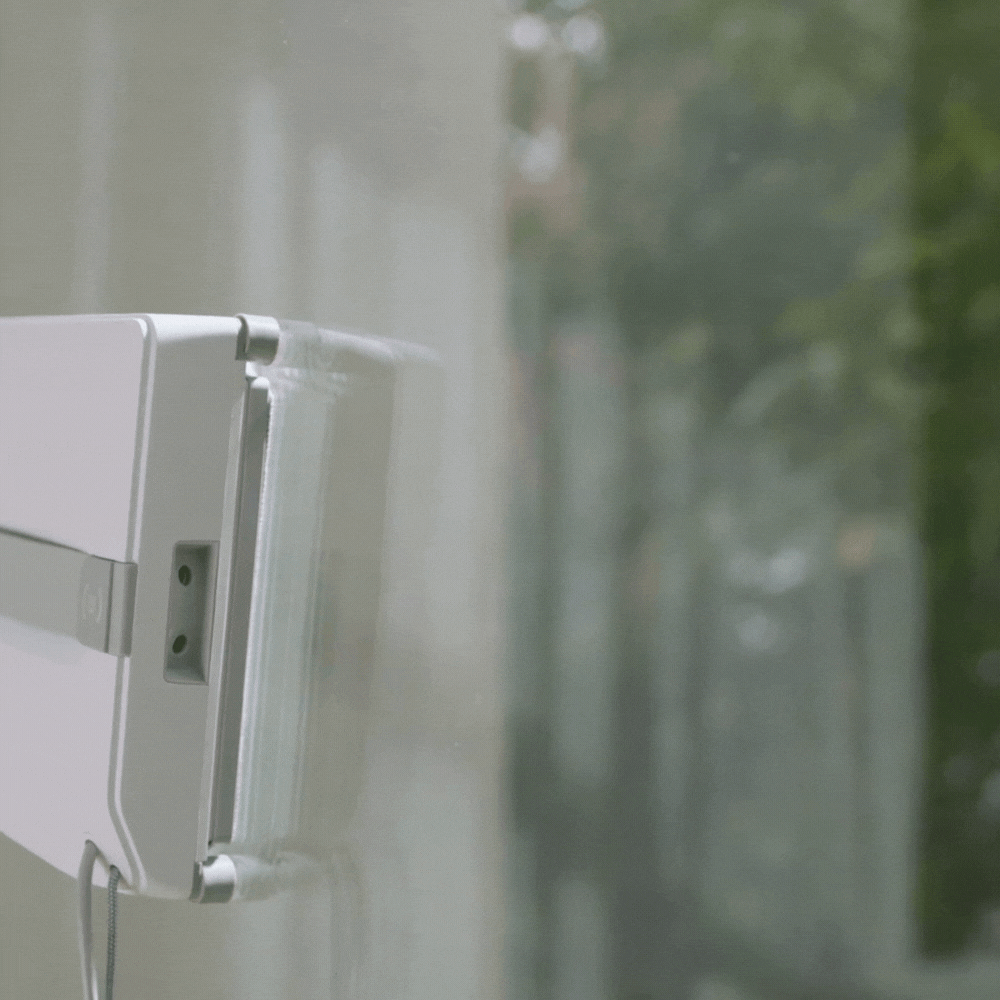

Nano-atomization ultrasonic impact for efficient cleaning
Bidirectional ultrasonic atomization spray, even coverage, gentle, efficient and precise decontamination
10μm ultrasonic nano-level atomization*, finely dissolving dirt, accurate and without omission
A full 60ml water tank can clean windows up to 25㎡*
High transparency wipes Constant humidity to break down stains
Super dust holding capacity Ultrafine fiber locks dust, cleans more thoroughly, and wet wipes are cleaner

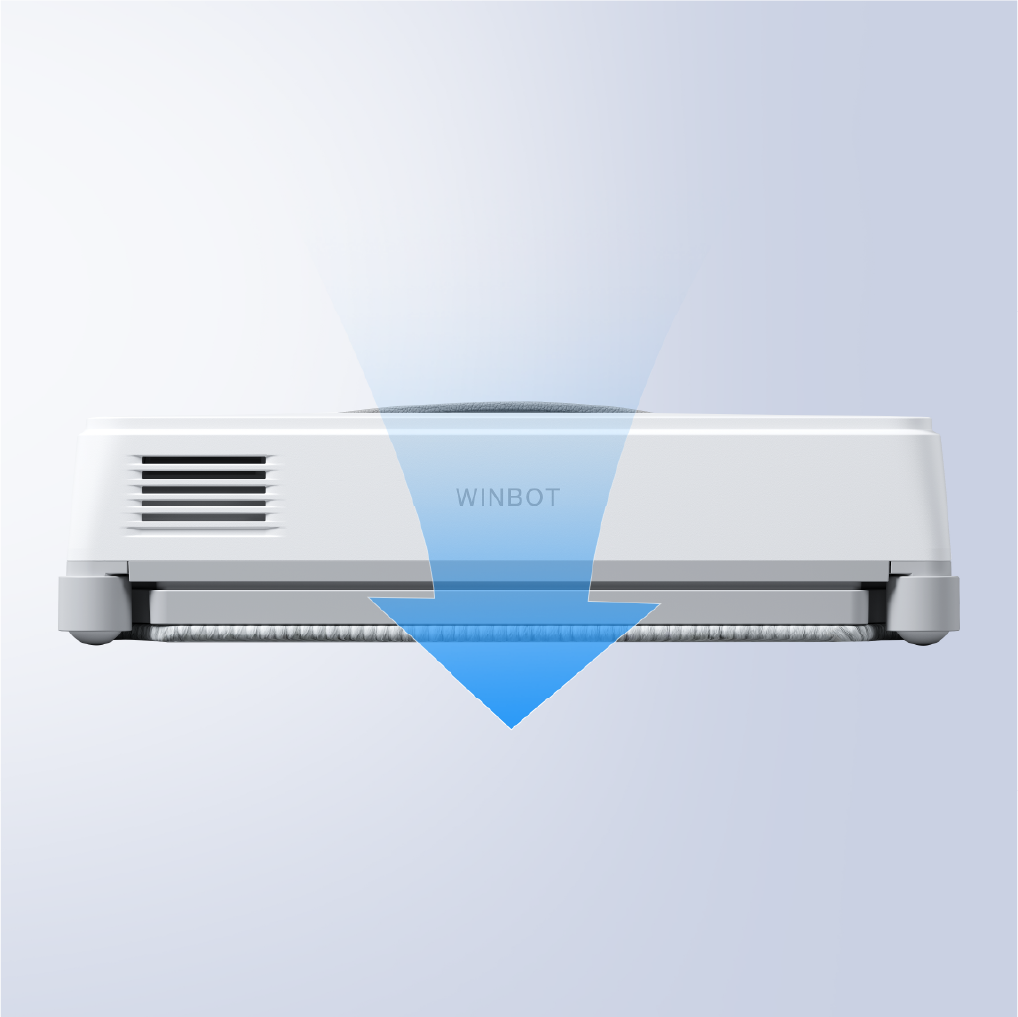

14N* large down force
Imitation of human hand cleaning, powerful stain removal

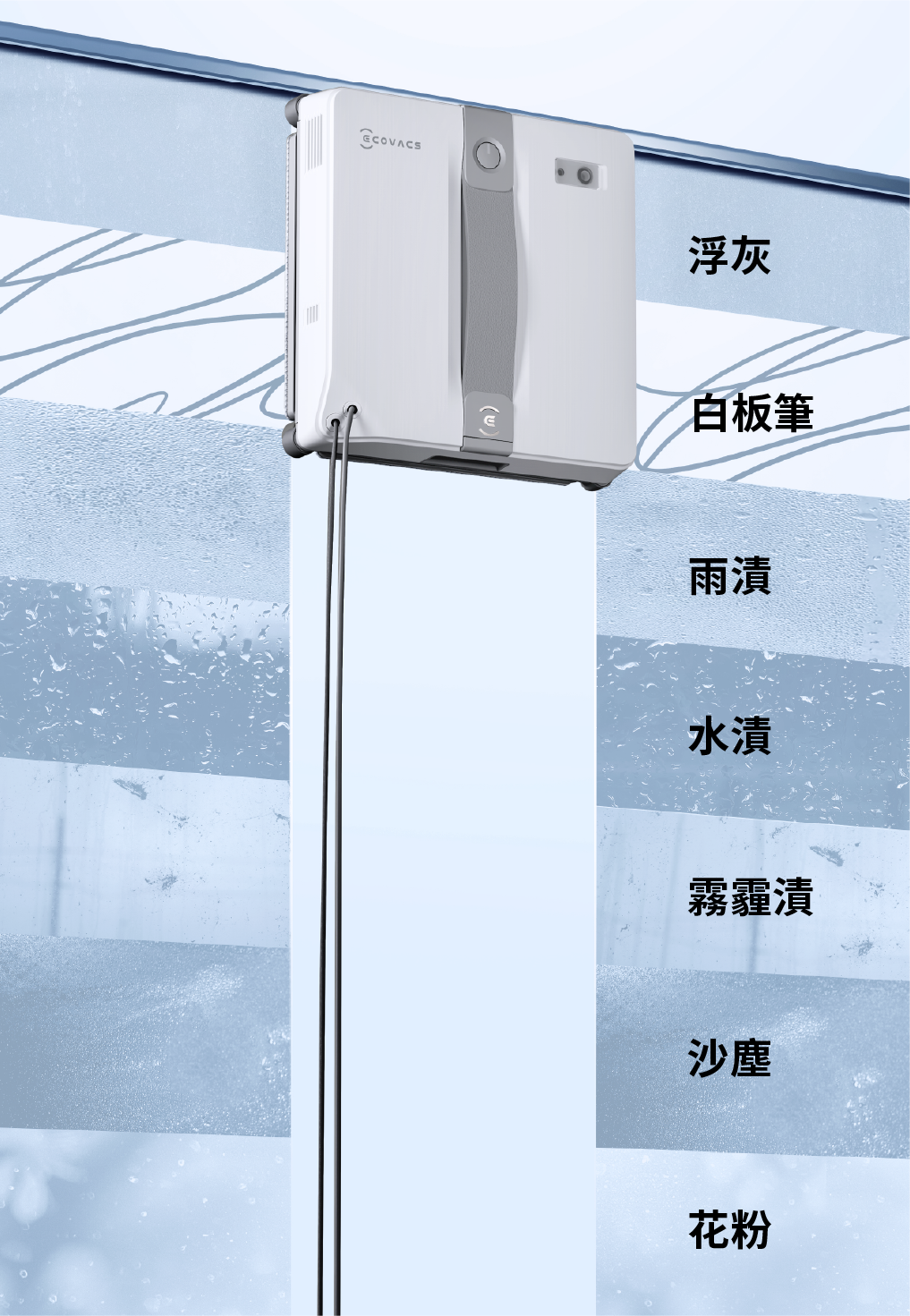

Can wipe off a variety of stains
Can clean a variety of stains to make the glass clear and bright
Use professional cleaning agents to make the glass as bright as new

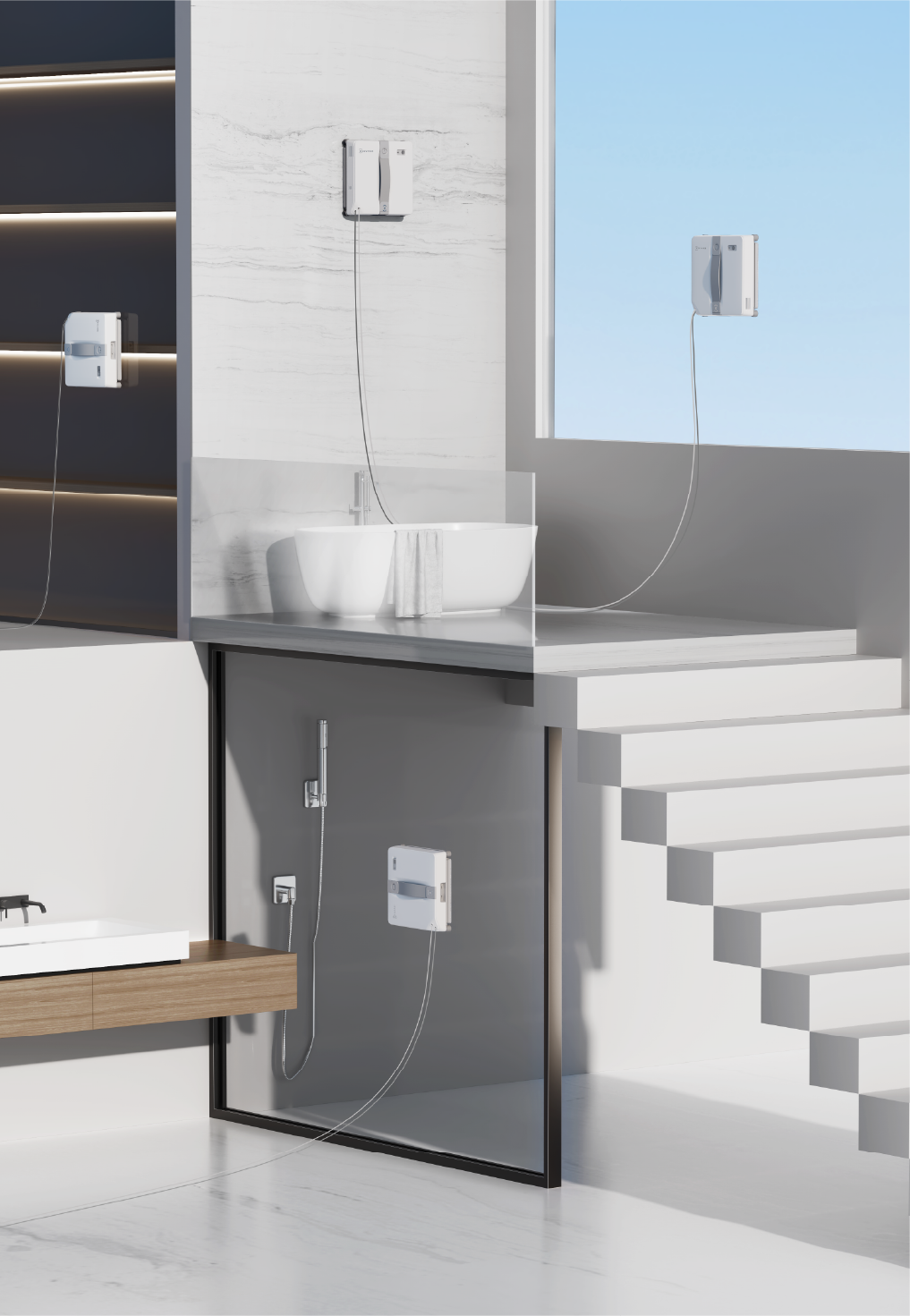

Can be applied on various facades*
Can be applied to various facades*, comprehensive functions and more affordable
One machine has multiple uses, supporting framed glass, frameless glass, marble, etc., and can also be used on smooth facades

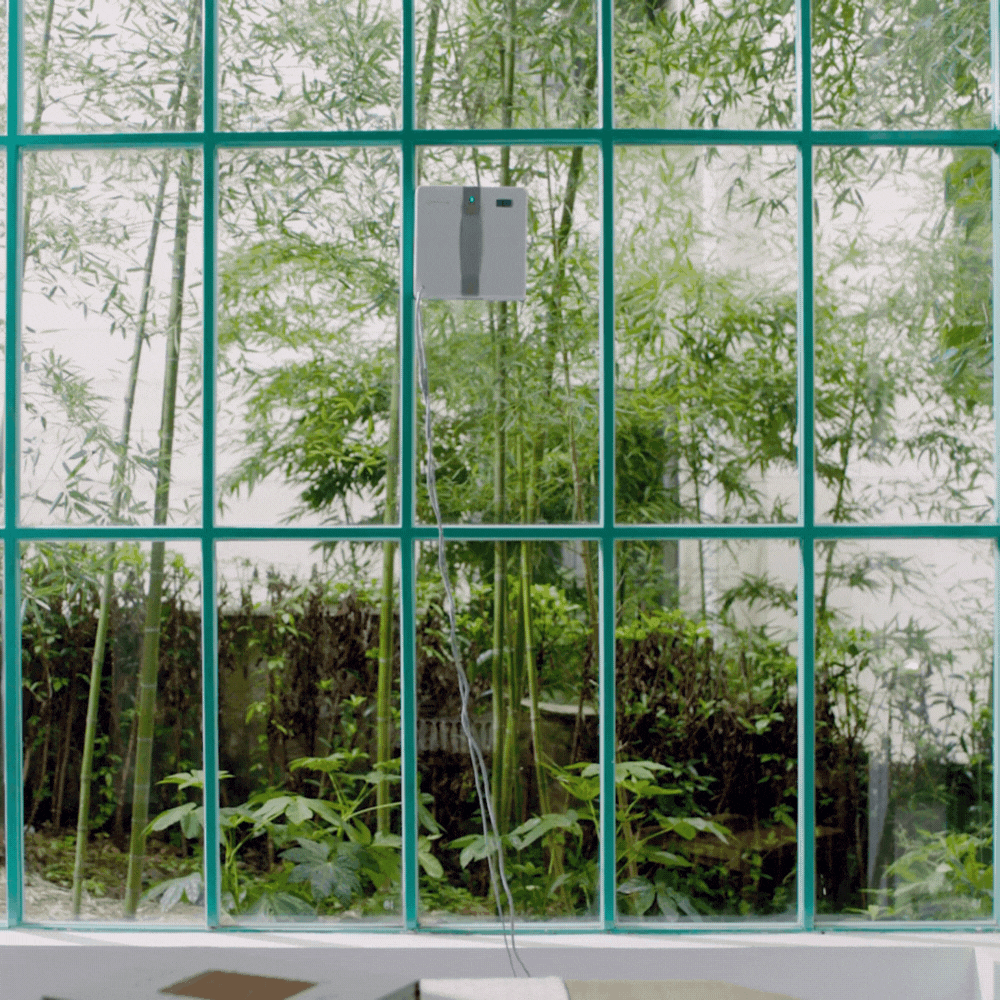

Multiple cleaning modes to meet various needs
Three cleaning modes to choose from according to the degree of glass dirtiness

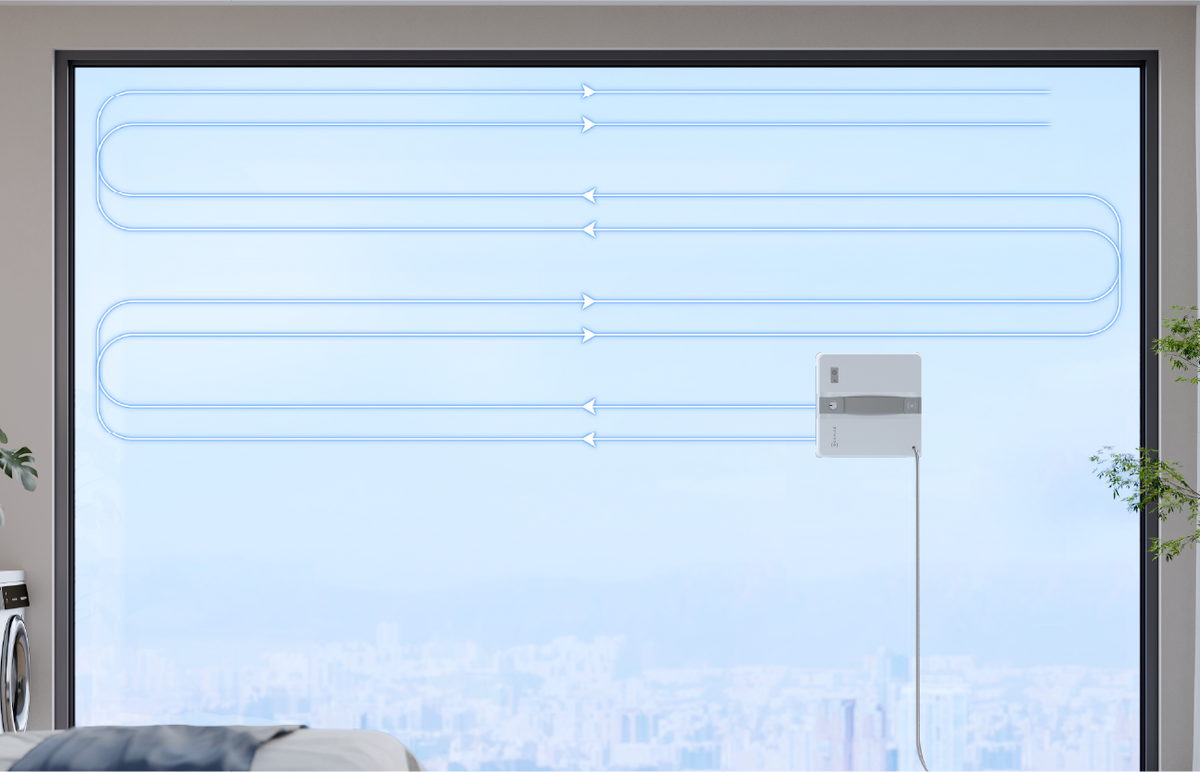

Deep cleaning bow path is denser

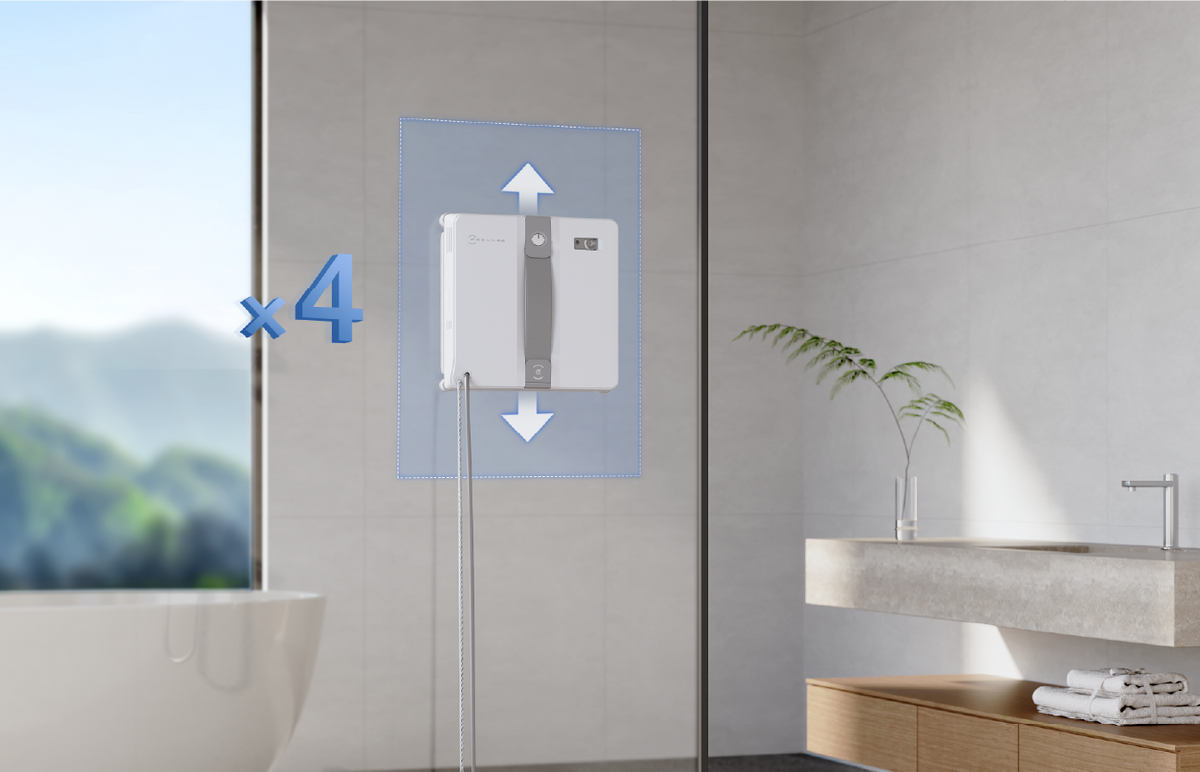

Spot clean stubborn stains and wipe repeatedly

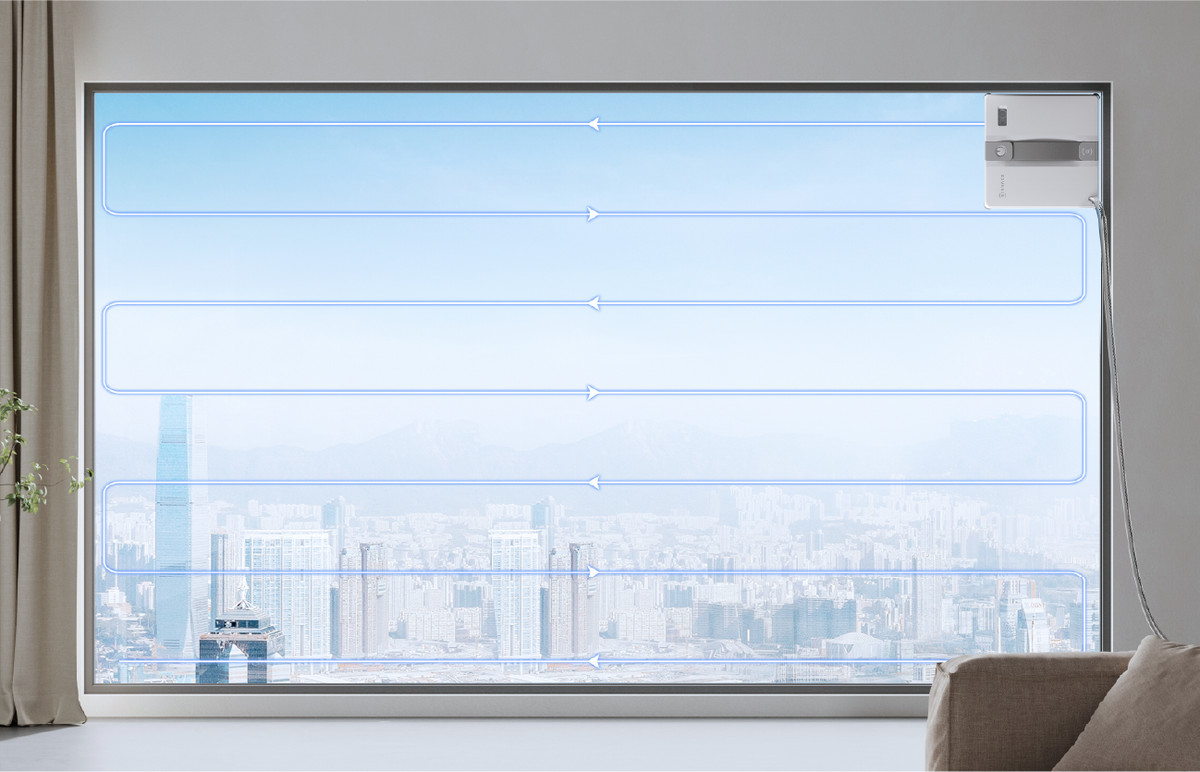

Quick cleaning, high efficiency for daily cleaning
WINBOT MINI
Heavy protection and full safety

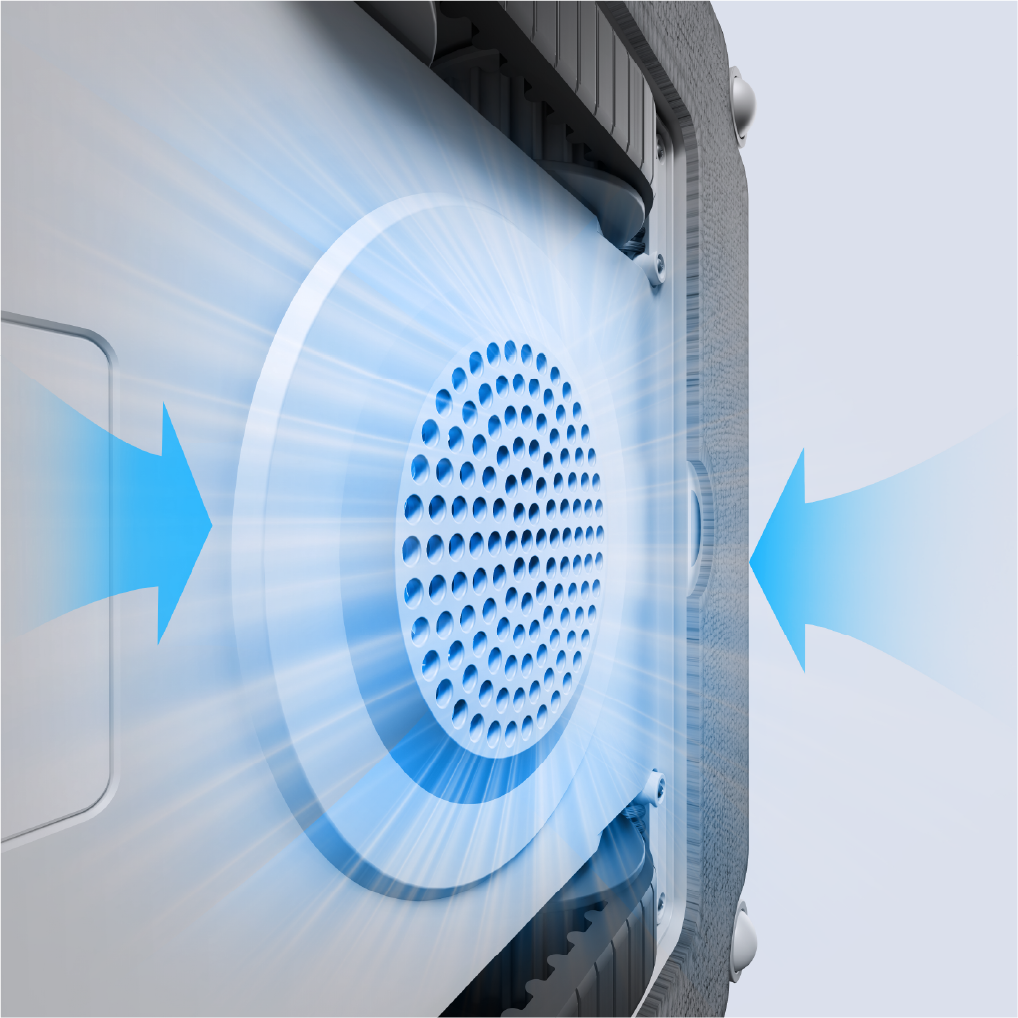

7500Pa strong suction*, safe and worry-free
Stronger suction, the machine is not easy to fall

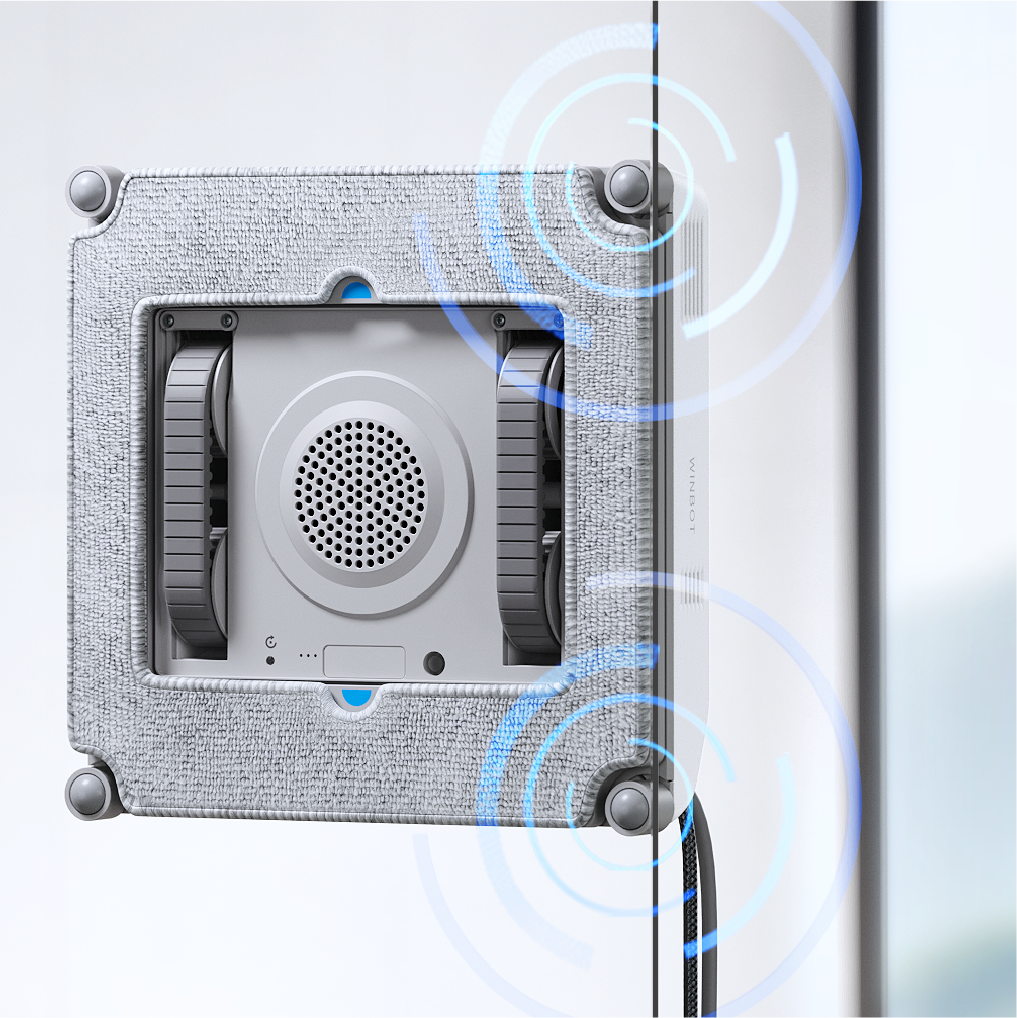

High-precision sensor
Equipped with multiple sensors, quick response, and constant machine stability
Optocoupler Sensor
0.02s ultra-fast response* Sensitive detection
Gravity acceleration sensor
Real-time monitoring, timely alarm when encountering dangerMore details to ensure peace of mind
Three cleaning modes to choose from according to the degree of glass dirtiness
Accidental protection

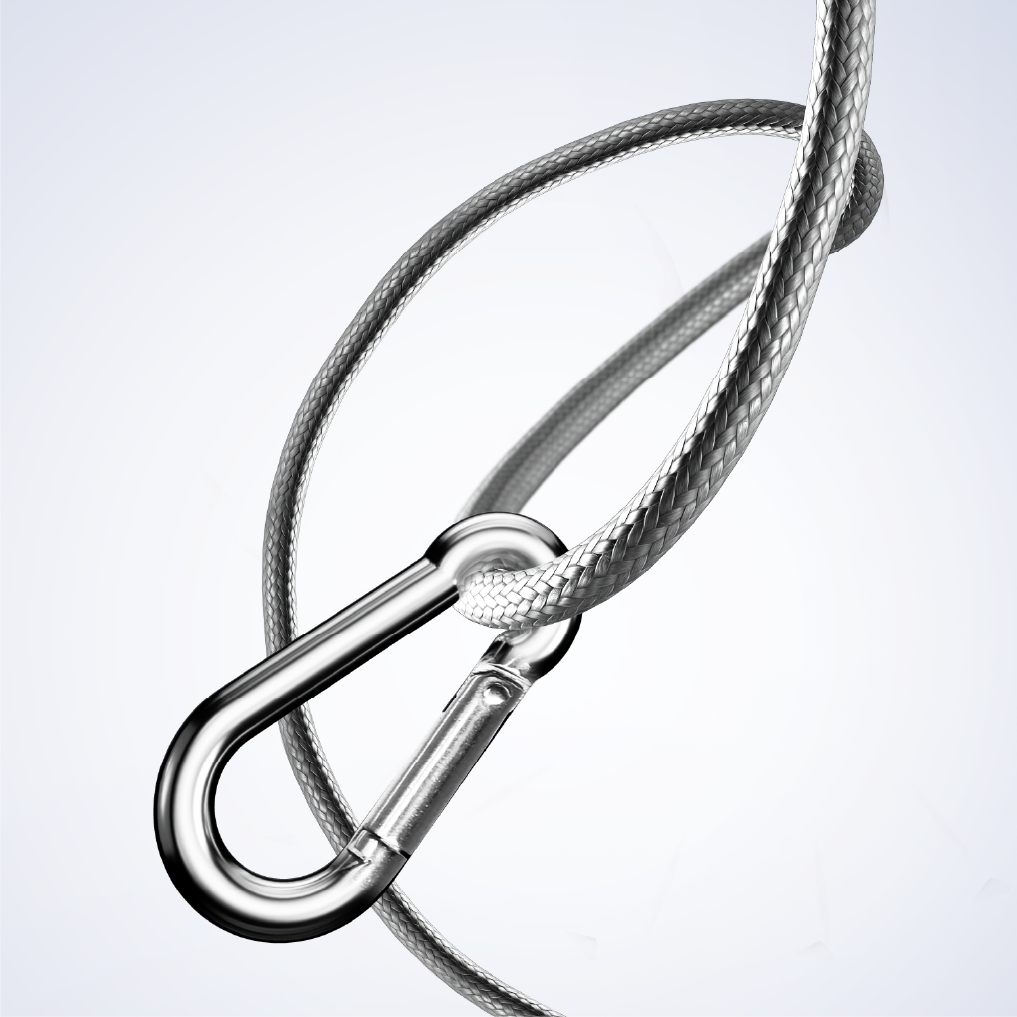

Safety rope + safety buckle double insurance design to prevent high-altitude falls in case of suction accidents
Low battery protection
After power failure, the window treasure can continue to absorb for 30 minutes* and sound an alarm

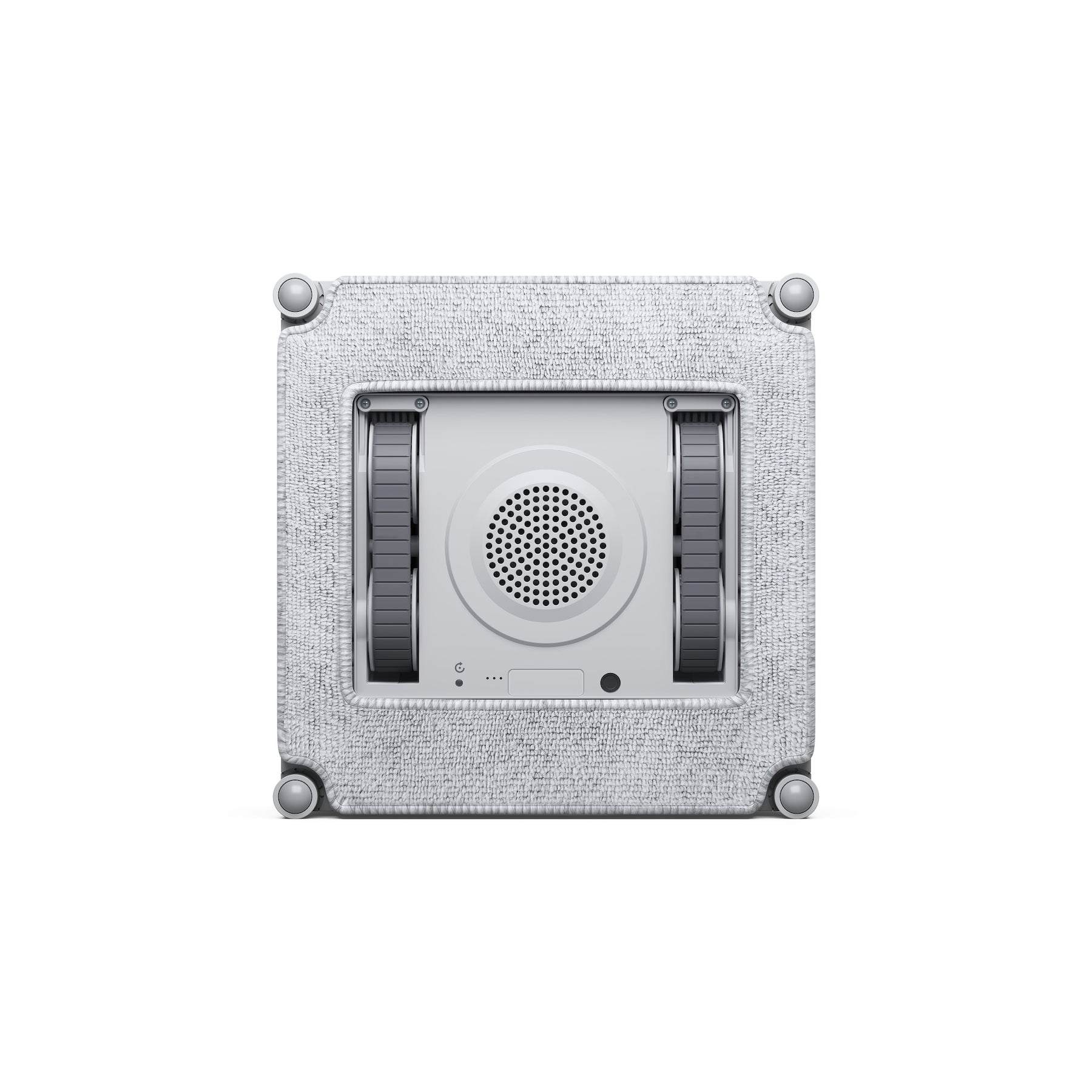

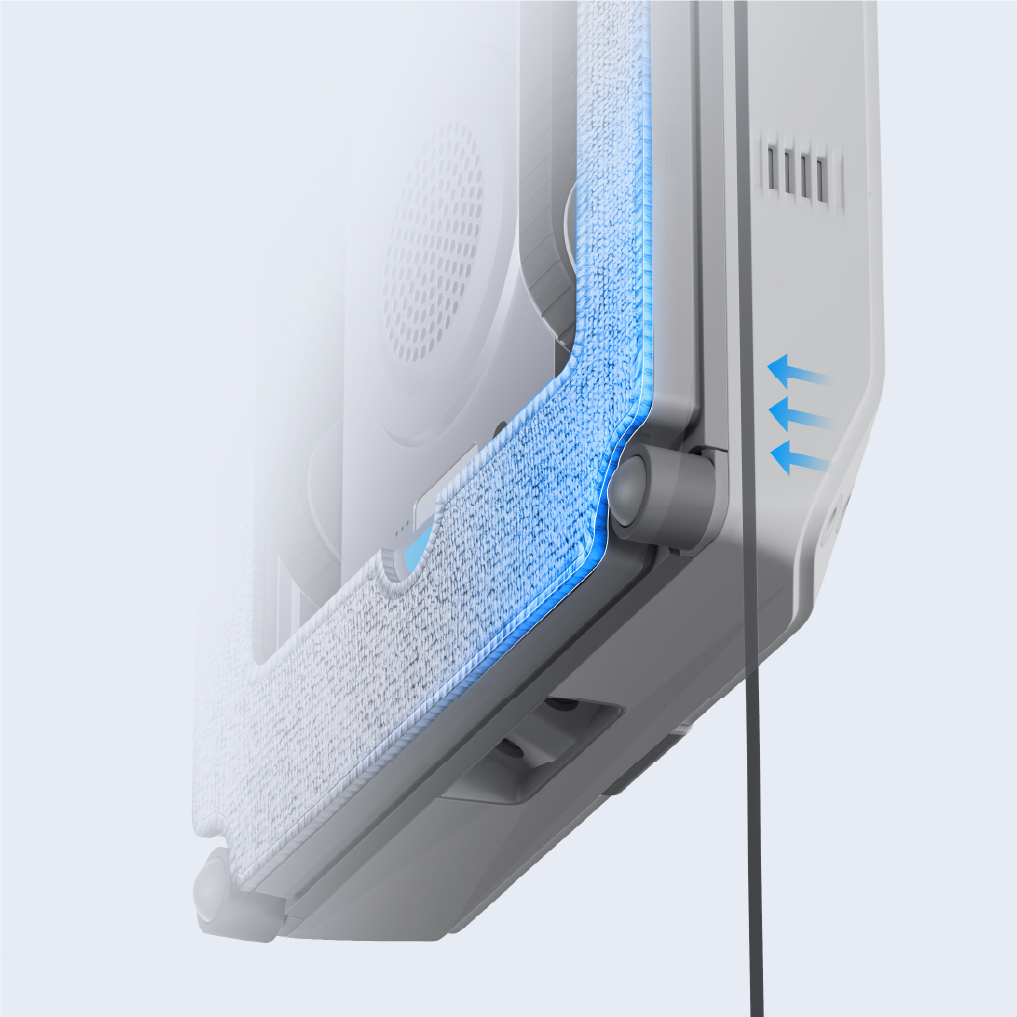

New design rag
Tighter fit, better sealing, less prone to air leakage
Floating mop holder
It can provide cushioning and maintain adsorption under external force, while avoiding excessive friction that affects walking.
Automatic air pressure compensation
Rapidly detects leaks and replenishes air pressure within 0.04s* to ensure safe adsorption
Accident Protection
If the product accidentally falls while using it properly, causing actual economic losses, ECOVACS will provide corresponding protection*「63, 20」: The data is from Ecovacs Laboratory and is the product quality standard of Ecovacs Laboratory;
*「Ultra-thin body 55mm NO.1」: refers to the body height of Ecovacs Window Treasure MINI is 55mm, which is the thinnest among all the previous Ecovacs products;
* "Special narrow space": refers to the space where the distance from the guardrail, anti-theft window, anti-theft net to the glass is 5.6-7.8cm. The 5.5cm ultra-thin body of the Windows MINI can completely cover this scene. The specific usage shall prevail.
* "37%, 30%": Data from Ecovacs Lab, referring to the structural changes of Ecovacs Window Treasure MINI. Compared with the previous generation W1S, the body size is 270mm*270mm, the thickness is 78mm, the size of the MINI is 215mm*215mm, the thickness is 55mm, so the cross-sectional size is reduced by 37% and 30%;
* "Small window": refers to a glass with a single side length of 30-50cm. The 21.5cm body of the Windowbao MINI can completely cover the scene. The specific usage shall prevail.
* "Guardrail": refers to the guardrail about 5.6-7.8cm away from the glass. The 5.5cm ultra-thin body of the Window Treasure MINI can completely cover the scene. The specific usage shall prevail.
* "2mm, 99%": The data comes from the Ecovacs laboratory, referring to the changes in the body structure of the Ecovacs Window Treasure MINI. Compared with the previous generation W1S, the collision plate component is eliminated, and the rag can be further extended outward to better fit the edge of the window;
Cleaning coverage rate = cleaned area/total glass area*100%, the test result of Window Treasure edge cleaning is 99%, the specific result is subject to actual use;
* "Ultimate Edge Fitting": refers to the Ecovacs Window Treasure MINI. Compared with the previous generation W1S, the cleaning of the collision plate component is cancelled, allowing the rag to completely fit the edge of the window. The specific details are subject to actual use;
*「7500Pa」: The data comes from the Ecovacs laboratory. The maximum suction force of the Ecovacs MINI blower can reach 7500Pa. The specific amount is subject to actual use.
*「10μm」: The data comes from the Ecovacs laboratory. Ecovacs MINI uses the high-frequency oscillation energy of ultrasound to convert liquid into tiny droplets to form an atomized state. It uses ultrasonic nano-atomization to spray water, using the energy of ultrasound to break up the water to form particles of 10 microns in size. These fine water droplets can fully wrap dust and stains, making them easily dissolved and peeled off to achieve efficient cleaning. The specific details shall be subject to actual use;
* "60ml, 25㎡": The data comes from the Ecovacs laboratory. The Ecovacs MINI's own water tank can support wiping 25㎡ of windows. The specific details are subject to actual use;
*「0.04s」: Data comes from Ecovacs Laboratory. Ecovacs MINI can automatically compensate for air pressure in as fast as 0.04s to prevent falling. The specific details are subject to actual use.
* "30 minutes": Data from Ecovacs Laboratory. When Ecovacs MINI is disconnected from the power supply, it can maintain adsorption for more than 30 minutes and sound an alarm. The specific data is subject to actual use.
*「0.02s」: Data from Ecovacs Lab. The optocoupler sensor on Ecovacs MINI can react quickly and detect the border within 0.02s at the fastest. The specific value is subject to actual use.
*The window cleaning robots mentioned in the picture do not refer to any specific brand. This comparison is only used to show the functional features of Ecovacs Window Treasure MINI so that consumers can better understand it. The comparison time point is as of September 30, 2024;
*“14N”, data comes from Ecovacs laboratory. When Ecovacs MINI is working normally, the pressure of the rag on the glass is 14N. The specific pressure is subject to actual use.
* "Multiple vertical surfaces": refers to smooth, flat, obstacle-free and seamless vertical surfaces. Please read the instructions for specific application requirements and follow the instructions for correct use;
*Due to differences in production batches, the product, accessories, and APP interface may be upgraded or updated, and therefore may differ from the content presented in the advertisement. Please refer to the actual product received for specific details. If you have special needs, please contact customer service; except for the above notes, all data on the page are obtained from Ecovacs laboratory environment tests. The actual use effect may vary depending on the conditions of the glass doors and windows of your house. The specific results shall be subject to actual use; all comparative terms involved in the page are compared with Ecovacs' previous products and do not involve other brands; this product has taken multiple security defense measures based on you, so it is achieved by downloading and using Ecovacs' continuously updated ECOVACS HOME APP. You need to agree to our Privacy Policy and User Agreement before we can process some of your basic and necessary information and enable you to use the ECOVACS HOME APP to control some of the functions of this product.
